Objects of this class are used in the program to store/restore the geometry and state information in the domain at particular instances. More...

#include <FE_Datastore.h>

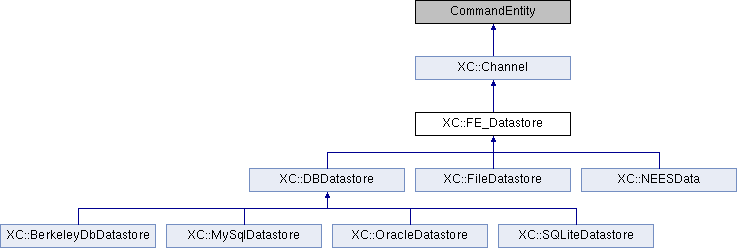

Inheritance diagram for XC::FE_Datastore:

Public Member Functions
	FE_Datastore (Preprocessor &, FEM_ObjectBroker &theBroker)
	Constructor. More...

char *	addToProgram (void)
	Return \(nullptr\).

int	setUpConnection (void)

int	setNextAddress (const ChannelAddress &otherChannelAddress)
	Return \(0\).

ChannelAddress *	getLastSendersAddress (void)
	Return \(nullptr\).

int	sendObj (int commitTag, MovableObject &theObject, ChannelAddress *theAddress=0)
	Call {sendSelf(commitTag, this, theBroker)}* on `theObject` and return the result. More...

int	recvObj (int commitTag, MovableObject &theObject, FEM_ObjectBroker &theBroker, ChannelAddress *theAddress=0)
	Call {recvSelf(commitTag, this, theBroker)}* on `theObject` and return the result. More...

int	getDbTag (void) const
	To return a unique integer identifier at each call. More...

virtual bool	isDatastore (void) const
	Return true (this channel type IS a Datastore).

virtual int	commitState (int commitTag)
	Stores the current state on the database. More...

virtual int	restoreState (int commitTag)
	Invoked to restore the state of the domain from a database. More...

bool	isSaved (int commitTag) const
	Returns true if the state identified by commitTag was previously saved on the database. More...

virtual int	createTable (const std::string &tableName, const std::vector< std::string > &)

virtual int	insertData (const std::string &tableName, const std::vector< std::string > &, int commitTag, const Vector &data)

virtual int	getData (const std::string &tableName, const std::vector< std::string > &, int commitTag, Vector &data)

int	save (const int &commitTag)

int	restore (const int &commitTag)

Public Member Functions inherited from XC::Channel
	Channel (CommandEntity *owr=nullptr)
	Constructor.

bool	checkDbTag (const int &dbTag)
	Check if a `dbTag` is already used.

const ID &	getUsedTags (void) const
	Return the list of dbTags already used.

void	clearDbTags (void)
	Reset used database tags set.

int	getTag (void) const
	Return the object tag.

template<class inputIterator >
int	sendObjs (int commitTag, const inputIterator &first, const inputIterator &last, ChannelAddress *theAddress=nullptr)
	Send the objects on interval [first,last).

template<class inputIterator >
int	recvObjs (int commitTag, const inputIterator &first, const inputIterator &last, FEM_ObjectBroker &, ChannelAddress *theAddress=nullptr)
	Receive an object sequence.

virtual int	sendMsg (int dbTag, int commitTag, const Message &theMsg, ChannelAddress *theAddress=nullptr)=0
	A method invoked to send the data in the Message object `theMsg` to another Channel object. More...

virtual int	recvMsg (int dbTag, int commitTag, Message &theMsg, ChannelAddress *theAddress=nullptr)=0
	Invoked to send the data in the Message object `theMsg` to another Channel object. More...

virtual int	sendMatrix (int dbTag, int commitTag, const Matrix &theMatrix, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the Matrix object `theMatrix` to another Channel object. More...

virtual int	recvMatrix (int dbTag, int commitTag, Matrix &theMatrix, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the Matrix object `theMatrix` to another Channel object. More...

virtual int	sendVector (int dbTag, int commitTag, const Vector &theVector, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the Vector object `theVector` to another Channel object. More...

virtual int	recvVector (int dbTag, int commitTag, Vector &theVector, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the Vector object `theVector` to another Channel object. More...

virtual int	sendID (int dbTag, int commitTag, const ID &theID, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the ID object `theID` to another Channel object. More...

virtual int	recvID (int dbTag, int commitTag, ID &theID, ChannelAddress *theAddress=nullptr)=0
	Invoked to receive the data in the ID object `theID` to another Channel object. More...

Protected Member Functions
FEM_ObjectBroker *	getObjectBroker (void)
	Returns a pointer to `theBroker` object passed in the constructor.

const Preprocessor *	getPreprocessor (void) const
	Returns a pointer to the object preprocessor.

Preprocessor *	getPreprocessor (void)
	Returns a pointer to the object preprocessor.

Protected Member Functions inherited from XC::Channel
int	sendMovable (int commitTag, MovableObject &)
	Send `theObject`.

int	receiveMovable (int commitTag, MovableObject &, FEM_ObjectBroker &)
	Receive `theObject`.

Detailed Description

Objects of this class are used in the program to store/restore the geometry and state information in the domain at particular instances.

How, where and how the data is stored depends on the implementation provided by the concrete subclasses.

Constructor & Destructor Documentation

§ FE_Datastore()

XC::FE_Datastore::FE_Datastore	(	Preprocessor &	prep,
		FEM_ObjectBroker &	theBroker
	)

Constructor.

Parameters

prep	preprocessor used to build the finite element model.
theBroker	deals with object serialization.

Member Function Documentation

§ commitState()

int XC::FE_Datastore::commitState ( int commitTag )

virtual

Stores the current state on the database.

Invoked to store the current state of the domain in the database. The integer commitTag is used to identify the state for subsequent calls to restore the information from the database. To return \(0\) if successful, a negative number if not.

The object loops over all the components of the Domain object invoking {sendSelf(commitTag, this)} on each of these objects. Returns \(0\) if successful, a negative number if not. For each domain component that could not send itself a warning message is printed.

Reimplemented in XC::FileDatastore, XC::NEESData, and XC::OracleDatastore.

§ getDbTag()

int XC::FE_Datastore::getDbTag ( void ) const

virtual

To return a unique integer identifier at each call.

This identifier will be used by the objects to store/retrieve their information to/from the database. Increments the integer containing the current dbTag and returns this integer.

Reimplemented from XC::Channel.

Reimplemented in XC::NEESData.

§ isSaved()

bool XC::FE_Datastore::isSaved ( int commitTag ) const

Returns true if the state identified by commitTag was previously saved on the database.

§ recvObj()

int XC::FE_Datastore::recvObj	(	int	commitTag,
		MovableObject &	theObject,
		FEM_ObjectBroker &	theNewBroker,
		ChannelAddress *	theAddress = `0`
	)

virtual

Call {recvSelf(commitTag, *this, theBroker)} on theObject and return the result.

Implements XC::Channel.

Reimplemented in XC::OracleDatastore.

§ restoreState()

int XC::FE_Datastore::restoreState ( int commitTag )

virtual

Invoked to restore the state of the domain from a database.

Invoked to restore the state of the domain from a database. The state of the domain at the end of this call is to be the same as the state of the domain when {commitState(commitTag)} was invoked. To return \(0\) if successful, a negative number if not.

The object loops over all the components of the Domain object invoking {recvSelf(commitTag, this)} on each of these objects. Returns \(0\) if successful, a negative number if not. For each domain component that could not send itself a warning message is printed.

§ sendObj()

int XC::FE_Datastore::sendObj	(	int	commitTag,
		MovableObject &	theObject,
		ChannelAddress *	theAddress = `0`
	)

virtual

Call {sendSelf(commitTag, *this, theBroker)} on theObject and return the result.

Implements XC::Channel.

Reimplemented in XC::OracleDatastore.

The documentation for this class was generated from the following files:

src/utility/database/FE_Datastore.h
src/utility/database/FE_Datastore.cpp
