Base class for penalty and Lagrange constraints handlers. More...

#include <FactorsConstraintHandler.h>

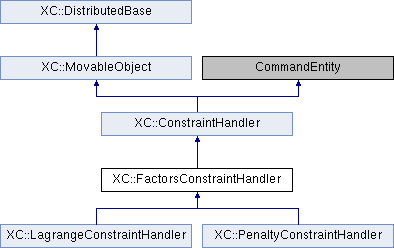

Inheritance diagram for XC::FactorsConstraintHandler:

Public Member Functions
void	setAlphaSP (const double &a)
	Set the factor used with single freedom constraints.

double	getAlphaSP (void) const
	Return the factor used with single freedom constraints.

void	setAlphaMP (const double &a)
	Set the factor used with multi-freedom constraints.

double	getAlphaMP (void) const
	Return the factor used with multi-freedom constraints.

virtual int	sendSelf (CommParameters &)
	Send object through the channel passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receive object through the channel passed as parameter.

Public Member Functions inherited from XC::ConstraintHandler
virtual int	handle (const ID *nodesNumberedLast=0)=0
	Invoked to handle the constraints imposed on the domain by the constraints. More...

virtual int	update (void)
	Update the state of the constraints.

virtual int	applyLoad (void)
	??

virtual int	doneNumberingDOF (void)
	Numbering of degrees of freedom.

virtual void	clearAll (void)
	Reset the DOF_Group pointers to nullptr for all the nodes. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	FactorsConstraintHandler (ModelWrapper *, int classTag, const double &alphaSP, const double &alphaMP)
	Constructor. More...

Protected Member Functions inherited from XC::ConstraintHandler
const Domain *	getDomainPtr (void) const
	Return a const pointer to the domain object associated with the ConstraintHandler.

const AnalysisModel *	getAnalysisModelPtr (void) const
	Return a const pointer to the analysis model object associated with the ConstraintHandler.

const Integrator *	getIntegratorPtr (void) const
	Return a pointer to the Integrator object associated with the ConstraintHandler.

Domain *	getDomainPtr (void)
	Return a pointer to the Domain object associated with the ConstraintHandler.

AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the AnalysisModel object associated with the ConstraintHandler.

Integrator *	getIntegratorPtr (void)
	Returns a pointer to the Integrator object associated with the ConstraintHandler.

int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	ConstraintHandler (ModelWrapper *, int classTag)
	Constructor. More...

virtual ConstraintHandler *	getCopy (void) const =0

Protected Attributes
double	alphaSP
	Factor used with the single freedom constraints.

double	alphaMP
	Factor used with the multi-freedom constraints.

Detailed Description

Base class for penalty and Lagrange constraints handlers.

Constructor & Destructor Documentation

§ FactorsConstraintHandler()

XC::FactorsConstraintHandler::FactorsConstraintHandler	(	ModelWrapper *	owr,
		int	classTag,
		const double &	sp,
		const double &	mp
	)

protected

Constructor.

Parameters

owr	pointer to the model wrapper that owns the handler.
classTag	identifier of the class.
sp	factor to be used with the single freedom constraints.
mp	factor to be used with the multi-freedom constraints.

The documentation for this class was generated from the following files:

src/solution/analysis/handler/FactorsConstraintHandler.h
src/solution/analysis/handler/FactorsConstraintHandler.cc
