Base class for 2D and 3D FEAP materials. More...

#include <FeapMaterial.h>

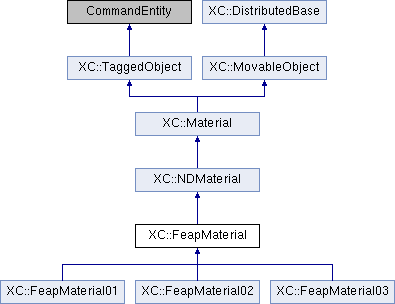

Inheritance diagram for XC::FeapMaterial:

Public Member Functions
	FeapMaterial (int tag, int classTag, int numHV, int numData, double rho=0.0)

	FeapMaterial (int classTag)

virtual int	setTrialStrain (const Vector &strain)
	Sets the value of the trial strain vector, that value used by {getStress()} and getTangent(), to be `strain`. More...

virtual const Vector &	getStrain (void) const
	Returns strain.

virtual const Vector &	getStress (void) const
	Returns the material stress vector at the current trial strain.

virtual const Matrix &	getTangent (void) const
	Return the tangent stiffness matrix at the current trial strain. More...

virtual double	getRho (void) const

virtual int	commitState (void)

virtual int	revertToLastCommit (void)

virtual int	revertToStart (void)

virtual NDMaterial *	getCopy (void) const
	Virtual constructor.

virtual NDMaterial *	getCopy (const std::string &) const

virtual const std::string &	getType (void) const

virtual int	getOrder (void) const

virtual int	sendSelf (CommParameters &)
	Send the object. More...

virtual int	recvSelf (const CommParameters &)
	Receive the object. More...

virtual void	Print (std::ostream &s, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::NDMaterial
	NDMaterial ()
	Constructor.

	NDMaterial (int tag, int classTag)
	Constructor. More...

virtual double	getE (void)

virtual double	getnu (void)

virtual double	getpsi (void)

virtual int	setTrialStrain (const Vector &v, const Vector &r)
	Sets trial strain value.

virtual int	setTrialStrainIncr (const Vector &v)
	Set trial strain increment.

virtual int	setTrialStrainIncr (const Vector &v, const Vector &r)
	Set trial strain increment.

virtual const Matrix &	getInitialTangent (void) const

const Vector &	getGeneralizedStress (void) const

const Vector &	getGeneralizedStrain (void) const

virtual void	setInitialGeneralizedStrain (const Vector &)
	Asigna el initial strain value.

const Vector &	getInitialGeneralizedStrain (void) const
	Return the initial strain.

virtual const Vector &	getCommittedStress (void)
	Returns commited stresses.

virtual const Vector &	getCommittedStrain (void)
	Returns commited strains.

virtual int	setTrialStrain (const Tensor &v)
	Set trial strain value.

virtual int	setTrialStrain (const Tensor &v, const Tensor &r)

virtual int	setTrialStrainIncr (const Tensor &v)
	Set trial strain increment.

virtual int	setTrialStrainIncr (const Tensor &v, const Tensor &r)

virtual const Tensor &	getTangentTensor (void) const

virtual const stresstensor &	getStressTensor (void) const

virtual const straintensor &	getStrainTensor (void) const

virtual const straintensor &	getPlasticStrainTensor (void) const

virtual int	setTrialF (const straintensor &f)

virtual int	setTrialFIncr (const straintensor &df)

virtual int	setTrialC (const straintensor &c)

virtual int	setTrialCIncr (const straintensor &dc)

virtual const stresstensor	getPK1StressTensor (void)

virtual const stresstensor	getCauchyStressTensor (void)

virtual const straintensor &	getF (void) const

virtual const straintensor &	getC (void) const

virtual const straintensor	getFp (void)

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &matInformation)

virtual int	getResponse (int responseID, Information &matInformation)
	Returns material response.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual const Vector &	getStressSensitivity (int gradNumber, bool conditional)

virtual const Vector &	getStrainSensitivity (int gradNumber)

virtual const Matrix &	getTangentSensitivity (int gradNumber)

virtual const Matrix &	getDampTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...

const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual int	invokeSubroutine (int isw)

virtual int	fillDArray (void)

Protected Member Functions inherited from XC::NDMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
double *	ud

double *	hstv

double	rho

Static Protected Attributes
static double	d []

Detailed Description

Base class for 2D and 3D FEAP materials.

Member Function Documentation

§ getTangent()

const XC::Matrix & XC::FeapMaterial::getTangent ( void ) const

virtual

Return the tangent stiffness matrix at the current trial strain.

Reimplemented from XC::NDMaterial.

§ recvSelf()

int XC::FeapMaterial::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::FeapMaterial::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

§ setTrialStrain()

int XC::FeapMaterial::setTrialStrain ( const Vector & v )

virtual

Sets the value of the trial strain vector, that value used by {getStress()} and getTangent(), to be strain.

To return \(0\) if successful and a negative number if not.

Reimplemented from XC::NDMaterial.

The documentation for this class was generated from the following files:

src/material/nD/FeapMaterial.h
src/material/nD/FeapMaterial.cpp
