Load pattern combination (1.5*PP+1.0*CP+1.6*SC ...). More...
#include <LoadCombination.h>

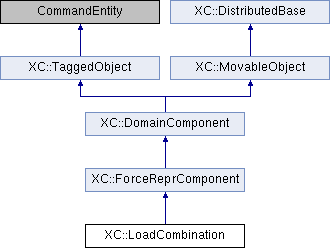

Inheritance diagram for XC::LoadCombination:
Public Types | |
| typedef std::deque< summand > | TDescomp |
| Container type for the combination expression (1.5*PP+1.0*CP+1.6*SC ...). | |
| typedef TDescomp::iterator | iterator |
| typedef TDescomp::const_iterator | const_iterator |
Public Member Functions | |
| ~LoadCombination (void) | |
| Destructor. | |
| virtual void | setDomain (Domain *theDomain) |
| Sets the pointer to the domain. More... | |
| bool | addToDomain (void) |
| Adds to the domain being passed as parameter each of the load cases of the combination. | |
| void | removeFromDomain (void) |
| Removes from the domain being passed as parameter the load cases of the combination. | |
| const std::string & | getName (void) const |
| void | setDescomp (const std::string &descomp) |
| const LoadCombinationGroup * | getGroup (void) const |
| Returns the group to wich the combination belongs. | |
| LoadCombinationGroup * | getGroup (void) |
| Returns the group to wich the combination belongs. | |
| const_iterator | begin (void) const |
| const_iterator | end (void) const |
| size_t | size (void) const |
| bool | empty (void) const |
| float | getCoefCaso (const LoadPattern *) const |
| Returns the weighting factor for the load case being passed as parameter. More... | |
| LoadCombination & | multiplica (const float &) |
| Multiplies the combination by the number being passed as parameter. | |
| LoadCombination & | divide (const float &) |
| Divides the combination by the number being passed as parameter. | |
| LoadCombination & | add (const std::string &) |
| Add the combination identified by the name being passed as parameter. | |
| LoadCombination & | substract (const std::string &) |
| Substracts the combination being passed as parameter. | |
| LoadCombination & | asigna (const std::string &) |
| Assigns the combination identified by the name being passed as parameter. | |
| LoadCombination & | operator+= (const LoadCombination &c) |
| LoadCombination & | operator-= (const LoadCombination &c) |
| LoadCombination & | operator*= (const float &f) |
| LoadCombination & | operator/= (const float &f) |
| LoadCombination | operator+ (const LoadCombination &) const |
| Addition operator. | |
| LoadCombination | operator- (const LoadCombination &) const |
| Substraction operator. | |
| LoadCombination | operator* (const float &) const |
| Product by a number operator. | |
| LoadCombination | operator/ (const float &) const |
| Division by a number operator. | |
| bool | operator== (const LoadCombination &) const |
| bool | operator!= (const LoadCombination &) const |
| bool | dominaA (const LoadCombination &otra) const |
| Returns true if the factors that weight all the load patterns of this load combination are greater that those in the combination being passed as parameter. More... | |
| const LoadCombination * | getPtrCombPrevia (void) const |
| Returns, if possible, a pointer to the "previous" combination. | |
| const std::string | getNombreCombPrevia (void) const |
| Returns, if possible, the name of the "previous" combination. | |
| int | getTagCombPrevia (void) const |
| Returns, if possible, the tag of the "previous" combination. | |
| const std::string | getDescompCombPrevia (void) const |
| Returns, if possible, the decomposition of the "previous" combination. | |
| const std::string | getDescompRestoSobrePrevia (void) const |
| Returns, si puede, la diferencia entre esta y la previa. | |
| int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| std::string | getString (const std::string &fmt="") const |
| Returns a string that represents the load combination «1.35*G1+0.90*G1». More... | |
| virtual void | Print (std::ostream &s, int flag=0) const |
| Imprime. | |
 Public Member Functions inherited from XC::ForceReprComponent | |
| ForceReprComponent (int classTag) | |
| ForceReprComponent (int tag, int classTag) | |
| Public Member Functions inherited from XC::DomainComponent | |
| ~DomainComponent (void) | |
| Destructor. | |
| size_t | getIdx (void) const |
| Returns the index of the object (to be used in VTK arrays). | |
| virtual Domain * | getDomain (void) const |
| Returns a pointer to the enclosing domain. More... | |
| const Preprocessor * | getPreprocessor (void) const |
| Returns (if possible) a pointer to the preprocessor. | |
| Preprocessor * | getPreprocessor (void) |
| Return (if possible) a pointer to the preprocessor. | |
| void | set_index (const size_t &i) |
| Set the index for the object (see numera in Set). More... | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| virtual TaggedObject * | getCopy (void) const |
| Virtual constructor. | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| virtual void | Print (std::ostream &, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| void | set_gamma_f (void) |
| void | set_domain (void) |
| Assigns the domain to each domain. | |
| void | add_component (const summand &) |
| Adds a component to the combination. | |
| void | interpreta_descomp (const std::string &str) |
| Computes the combination from the string being passed as parameter. | |
| void | limpia_ceros (void) |
| Deletes the null weighted load combinations. | |
| void | clear (void) |
| Deletes the components of the load combination. | |
| const_iterator | buscaCaso (const LoadPattern *) const |
| Returns a const iterator pointing to the load pattern being passed as parameter. | |
| iterator | buscaCaso (const LoadPattern *) |
| Returns an iterator pointing to the load pattern being passed as parameter. | |
| iterator | begin (void) |
| iterator | end (void) |
| LoadCombination & | add (const LoadCombination &) |
| Sums the combination being passed as parameter. | |
| LoadCombination & | substract (const LoadCombination &) |
| Substracts the combination being passed as parameter. | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags de los miembros of the clase. More... | |
| int | sendData (CommParameters &cp) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives members through the channel being passed as parameter. | |
| int | recvDescomp (void) |
| Returns the combination decomposition (it must be called only after setting un the object's owner and the pointer to the load handler -LoadHandler-). More... | |
| LoadCombination (LoadCombinationGroup *owr=nullptr, const std::string &nmb="", int tag=0, LoadHandler *ll=nullptr) | |
| Constructor. | |
| void | setNombre (const std::string &nmb) |
| void | setHandler (LoadHandler *ll) |
| Protected Member Functions inherited from XC::DomainComponent | |
| DomainComponent (int tag, int classTag) | |
| Constructor. More... | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Friends | |
| class | Domain |
| class | FEM_ObjectBroker |
| class | LoadCombinationGroup |
Detailed Description
Load pattern combination (1.5*PP+1.0*CP+1.6*SC ...).
Member Function Documentation
§ dominaA()
| bool XC::LoadCombination::dominaA | ( | const LoadCombination & | otra | ) | const |
Returns true if the factors that weight all the load patterns of this load combination are greater that those in the combination being passed as parameter.
§ getCoefCaso()
| float XC::LoadCombination::getCoefCaso | ( | const LoadPattern * | lp | ) | const |
Returns the weighting factor for the load case being passed as parameter.
§ getDbTagData()
|
protectedvirtual |
Returns a vector to store the dbTags de los miembros of the clase.
Reimplemented from XC::DistributedBase.
§ getString()
| std::string XC::LoadCombination::getString | ( | const std::string & | fmt = "" | ) | const |
Returns a string that represents the load combination «1.35*G1+0.90*G1».
fmt:Format for the factor that multiplies the load case.
§ recvDescomp()
|
protected |
Returns the combination decomposition (it must be called only after setting un the object's owner and the pointer to the load handler -LoadHandler-).
§ setDomain()
|
virtual |
Sets the pointer to the domain.
Sets the encompassing domain of the component to that given by {theDomain}. This method is invoked by theDomain when the component is being added to the domain, in an {addDomain..} invocation (see interface for Domain).
Reimplemented from XC::DomainComponent.
The documentation for this class was generated from the following files:
- src/domain/load/pattern/LoadCombination.h
- src/domain/load/pattern/LoadCombination.cc
