Finite element mesh. More...

#include <Mesh.h>

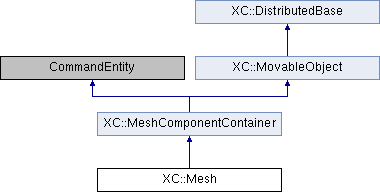

Inheritance diagram for XC::Mesh:

Public Member Functions
	Mesh (CommandEntity *owr)
	Constructor.

	Mesh (CommandEntity *owr, TaggedObjectStorage &theNodesStorage, TaggedObjectStorage &theElementsStorage)
	Constructor.

	Mesh (CommandEntity *owr, TaggedObjectStorage &theStorageType)
	Constructor.

virtual	~Mesh (void)
	Destructor.

virtual bool	addNode (Node *)
	Adds to the domain the node being passed as parameter. More...

virtual bool	removeNode (int tag)
	Remove from mesh the node identified by the argument. More...

virtual bool	addElement (Element *)
	Appends to the mesh the element being passed as parameter. More...

virtual bool	removeElement (int tag)
	Deletes the element identified by the tag being passed as parameter. More...

virtual void	clearAll (void)
	Deletes from domain all its components (nodes, elements, loads and constraints). More...

void	setNodeReactionException (const int &)
	Assign the exception for reaction checking (see Mesh::checkNodalReactions).

bool	checkNodalReactions (const double &)
	Checks that all free nodes have zero reactions.

void	clearDOF_GroupPtr (void)
	Clears the pointers to node DOF groups.

void	setGraphBuiltFlags (const bool &f)
	Returns true if the modelo ha cambiado.

int	initialize (void)
	Inicializa.

virtual int	setRayleighDampingFactors (const RayleighDampingFactors &rF)
	Set Rayleigh damping factors.

const TaggedObjectStorage *	nodes (void) const

TaggedObjectStorage *	nodes (void)

const TaggedObjectStorage *	elements (void) const

TaggedObjectStorage *	elements (void)

virtual ElementIter &	getElements ()
	Returns an iterator to the mesh elements.

virtual NodeIter &	getNodes ()
	Returns an iterator a the nodes del domain.

const NodeLockers &	getNodeLockers (void) const

NodeLockers &	getNodeLockers (void)

bool	existElement (int tag)
	Returns true if the mesh has an element with the tag being passed as parameter.

virtual Element *	getElement (int tag)
	Returns a pointer to the element identified by the tag being passed as parameter.

virtual const Element *	getElement (int tag) const
	Returns a pointer to the element identified by the tag being passed as parameter.

Element *	getNearestElement (const Pos3d &p)
	Returns a pointer to the nearest element to the point being passed as parameter.

const Element *	getNearestElement (const Pos3d &p) const
	Returns a pointer to the nearest element to the point being passed as parameter.

bool	existNode (int tag)
	Returns true if the mesh has a node with the tag being passed as parameter.

virtual Node *	getNode (int tag)
	Returns a pointer to the node which tag being passed as parameter.

virtual const Node *	getNode (int tag) const
	Returns a pointer to the node which tag being passed as parameter.

Node *	getNearestNode (const Pos3d &p)
	Returns the node closest to the point being passed as parameter.

const Node *	getNearestNode (const Pos3d &p) const
	Returns the node closest to the point being passed as parameter.

virtual int	getNumElements (void) const
	Returns the number of elements.

virtual int	getNumNodes (void) const
	Returns the number of nodes.

size_t	getNumDeadElements (void) const
	Returns the number of inactive elements on the mesh.

size_t	getNumLiveElements (void) const
	Returns the number of active elements on the mesh.

size_t	getNumDeadNodes (void) const
	Returns the number of inactive nodes on the mesh.

size_t	getNumLiveNodes (void) const
	Returns the number of active nodes on the mesh.

size_t	getNumFrozenNodes (void) const
	Returns the number of frozen nodes on the mesh.

size_t	getNumFreeNodes (void) const
	Returns the number of free nodes on the mesh.

virtual const Vector &	getPhysicalBounds (void)

const std::vector< std::string > &	getNombresCoordenadas (void) const

std::string	getNombreUnidades (void) const

virtual int	buildEleGraph (Graph &theEleGraph)
	Builds the element's graph. More...

virtual int	buildNodeGraph (Graph &theNodeGraph)
	Builds the node graph. More...

virtual Graph &	getElementGraph (void)
	Builds the elements graph of the mesh (if not builded yet) and returns a reference to it. More...

virtual Graph &	getNodeGraph (void)
	Builds (if needed) the graph of the domain nodes and returns a reference to it. More...

virtual int	commit (void)
	Commits mesh state.

virtual int	revertToLastCommit (void)
	Returns the mesh to its last commited state.

virtual int	revertToStart (void)
	Return the mesh into its initial state.

int	update (void)
	Update the element's state. More...

void	freeze_dead_nodes (const std::string &nmbLocker)
	Freezes inactive nodes (prescribes zero displacement for all DOFs on inactive nodes). More...

void	melt_alive_nodes (const std::string &nmbLocker)
	Clears the constraints over activated nodes previously created by the freeze method. More...

const double	getEffectiveModalMass (int mode) const
	Return the masa modal efectiva corresponding to the mode i. More...

Vector	getEffectiveModalMasses (const int &numModes) const
	Returns the masas modales efectivas.

void	zeroLoads (void)
	Loop over nodes and elements getting them to first zero their loads.

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el domain.

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

virtual double	getNodeDisp (int nodeTag, int dof, int &errorFlag)
	Returns the component of the displacement of the node wich the tag is being passed as parameter. More...

virtual int	setMass (const Matrix &mass, int nodeTag)
	Set the mass matrix for the node identified by the argument.

virtual int	calculateNodalReactions (bool inclInertia, const double &)
	Calculate nodal reaction forces and moments. More...

Public Member Functions inherited from XC::MeshComponentContainer
	MeshComponentContainer (CommandEntity *owr, int classTag, int dbTag=0)
	Constructor.

const Domain *	getDomain (void) const
	Returns a pointer to the mesh domain.

Domain *	getDomain (void)
	Returns a pointer to the mesh domain.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Static Public Member Functions
static void	setDeadSRF (const double &)
	Assigns Stress Reduction Factor for element deactivation.

Protected Member Functions
void	free_mem (void)
	Frees memory occupied by mesh components. More...

DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags de los miembros of the clase. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Friends
std::ostream &	operator<< (std::ostream &, Mesh &)

Detailed Description

Finite element mesh.

Member Function Documentation

§ addElement()

bool XC::Mesh::addElement ( Element * element )

virtual

Appends to the mesh the element being passed as parameter.

To add the element pointed to by theElementPtr to the domain. In addition the domain always checks to ensure that no other element with the same tag exists in the domain. If the checks are successful, the element is added to the mesh by invoking addComponent(theElePtr) on the container for the elements. The mesh then invokes add_element_to_domain() on the element. The call returns true if the element is added, otherwise an error message is displayed ant false is returned.

§ addNode()

bool XC::Mesh::addNode ( Node * node )

virtual

Adds to the domain the node being passed as parameter.

To add the node pointed to by node to the mesh. The domain first checks that no other node with the same tag, has been previously added to the domain. The mesh will then add the node to it's node container object, by invoking addComponent(node). If successful, the mesh invokes add_node_to_domain(node) on the node. The call returns true if the node was added, otherwise an error is printed and false is returned.

§ buildEleGraph()

int XC::Mesh::buildEleGraph ( Graph & theEleGraph )

virtual

Builds the element's graph.

A method which will cause the mesh to discard the current element graph and build a new one based on the element connectivity. Returns \(0\) if successful otherwise \(-1\) is returned along with an error message.

§ buildNodeGraph()

int XC::Mesh::buildNodeGraph ( Graph & theNodeGraph )

virtual

Builds the node graph.

A method which will cause the mesh to discard the current node graph and build a new one based on the node connectivity. Returns \(0\) if successful otherwise \(-1\) is returned along with an error message.

§ calculateNodalReactions()

int XC::Mesh::calculateNodalReactions	(	bool	inclInertia,
		const double &	tol
	)

virtual

Calculate nodal reaction forces and moments.

Parameters

inclInertia	if True, the unbalance load vector for each node is calculated including inertial forces.
tol	tolerance for the checking of reactions.

§ clearAll()

void XC::Mesh::clearAll ( void )

virtual

Deletes from domain all its components (nodes, elements, loads and constraints).

GENERAL NOTE ON REMOVAL OF COMPONENTS: downward casts (while bad) are o.k. as only the type of components can be added to the storage objects, e.g. only elements can be added to theElements therefore casting a XC::MeshComponent from theElements to an XC::Element is o.k.

§ free_mem()

void XC::Mesh::free_mem ( void )

protected

Frees memory occupied by mesh components.

this calls delete on all components of the model, i.e. calls delete on all that is added to the model. WARNING: if 3rd constructor, TaggedObjectStorage objects passed must have been created with new_ and nowhere else must the destructor be called.

§ freeze_dead_nodes()

void XC::Mesh::freeze_dead_nodes ( const std::string & nmbLocker )

Freezes inactive nodes (prescribes zero displacement for all DOFs on inactive nodes).

§ getDbTagData()

XC::DbTagData & XC::Mesh::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags de los miembros of the clase.

Reimplemented from XC::DistributedBase.

§ getEffectiveModalMass()

const double XC::Mesh::getEffectiveModalMass ( int mode ) const

Return the masa modal efectiva corresponding to the mode i.

§ getElementGraph()

XC::Graph & XC::Mesh::getElementGraph ( void )

virtual

Builds the elements graph of the mesh (if not builded yet) and returns a reference to it.

Returns the current element graph (the connectivity of the elements in the mesh). If the eleChangeFlag has been set to true the method will invoke {buildEleGraph(theEleGraph)} on itself before returning the graph. The vertices in the element graph are to be labeled \(0\) through \(numEle-1\). The vertices references contain the elemental tags.

§ getNodeDisp()

double XC::Mesh::getNodeDisp	(	int	nodeTag,
		int	dof,
		int &	errorFlag
	)

virtual

Returns the component of the displacement of the node wich the tag is being passed as parameter.

Parameters

nodeTag	node identifier.
dof	degree of freedom component.
errorFlag	error indicator.

§ getNodeGraph()

XC::Graph & XC::Mesh::getNodeGraph ( void )

virtual

Builds (if needed) the graph of the domain nodes and returns a reference to it.

Returns the current node graph (the connectivity of the nodes in the domain). If the nodeChangeFlag has been set to true the will invoke {buildNodeGraph(theNodeGraph)} on itself before returning the graph. The vertices in the node graph are to be labeled \(0\) through \(numNode-1\). The Vertices references contain the nodal tags.

§ getPhysicalBounds()

const XC::Vector & XC::Mesh::getPhysicalBounds ( void )

virtual

This information is built up as nodes are added to the domain, initially all are set to \(0\) in the constructor.

§ melt_alive_nodes()

void XC::Mesh::melt_alive_nodes ( const std::string & nmbLocker )

Clears the constraints over activated nodes previously created by the freeze method.

§ removeElement()

bool XC::Mesh::removeElement ( int tag )

virtual

Deletes the element identified by the tag being passed as parameter.

To remove the element whose tag is given by tag from the mesh. This is achieved by invoking {removeComponent(tag)} on the container for the elements. Returns \(0\) if no such element exists in the domain. Otherwise the domain invokes {setDomain(nullptr)} on the element (using a cast to go from a TaggedObject to an Element, which is safe as only an Element objects are added to this container) and {domainChange()} on itself before a pointer to the element is returned.

§ removeNode()

bool XC::Mesh::removeNode ( int tag )

virtual

Remove from mesh the node identified by the argument.

To remove the node whose tag is given by tag from the domain. This is achieved ty by invoking {removeComponent(tag)} on the container for the nodes. Returns \(0\) if no such node exists in the domain. If the node is to be removed the domain invokes {setDomain(nullptr)} on the node and {domainChange()} on itself before a pointer to the Node is returned.

§ update()

int XC::Mesh::update ( void )

Update the element's state.

Called by the domain to update the state of the mesh. Iterates over all the elements and invokes {update()}.

The documentation for this class was generated from the following files:

src/domain/mesh/Mesh.h
src/domain/mesh/Mesh.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Function Documentation

§ addElement()

§ addNode()

§ buildEleGraph()

§ buildNodeGraph()

§ calculateNodalReactions()

§ clearAll()

§ free_mem()

§ freeze_dead_nodes()

§ getDbTagData()

§ getEffectiveModalMass()

§ getElementGraph()

§ getNodeDisp()

§ getNodeGraph()

§ getPhysicalBounds()

§ melt_alive_nodes()

§ removeElement()

§ removeNode()

§ update()
