??. More...
#include <NeoHookeanCompressible3D.h>

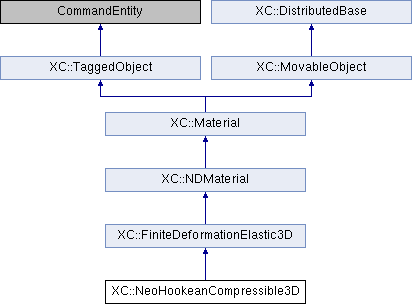

Inheritance diagram for XC::NeoHookeanCompressible3D:
Public Member Functions | |
| NeoHookeanCompressible3D (int tag, int classTag, double, double, double) | |
| NeoHookeanCompressible3D (int tag, double, double, double) | |
| NeoHookeanCompressible3D (int tag) | |
| double | getRho (void) const |
| int | setTrialF (const straintensor &f) |
| int | setTrialFIncr (const straintensor &df) |
| int | setTrialC (const straintensor &c) |
| int | setTrialCIncr (const straintensor &dc) |
| const Tensor & | getTangentTensor (void) const |
| const Tensor & | getInitialTangentTensor (void) const |
| const straintensor & | getStrainTensor (void) const |
| const stresstensor & | getStressTensor (void) const |
| const straintensor & | getF (void) const |
| const straintensor & | getC (void) const |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| int | revertToStart (void) |
| NDMaterial * | getCopy (void) const |
| Virtual constructor. | |
| NDMaterial * | getCopy (const std::string &) const |
| const std::string & | getType (void) const |
| int | getOrder (void) const |
| int | sendSelf (CommParameters &) |
| Send the object. More... | |
| int | recvSelf (const CommParameters &) |
| Receive the object. More... | |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
| const stresstensor | getPK1StressTensor (void) |
| const stresstensor | getCauchyStressTensor (void) |
 Public Member Functions inherited from XC::FiniteDeformationElastic3D | |
| FiniteDeformationElastic3D (int tag, int classTag, double) | |
| FiniteDeformationElastic3D (int tag) | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| Public Member Functions inherited from XC::NDMaterial | |
| NDMaterial () | |
| Constructor. | |
| NDMaterial (int tag, int classTag) | |
| Constructor. More... | |
| virtual double | getE (void) |
| virtual double | getnu (void) |
| virtual double | getpsi (void) |
| virtual int | setTrialStrain (const Vector &v) |
Sets the value of the trial strain vector, that value used by {getStress()} and getTangent(), to be strain. More... | |
| virtual int | setTrialStrain (const Vector &v, const Vector &r) |
| Sets trial strain value. | |
| virtual int | setTrialStrainIncr (const Vector &v) |
| Set trial strain increment. | |
| virtual int | setTrialStrainIncr (const Vector &v, const Vector &r) |
| Set trial strain increment. | |
| virtual const Matrix & | getTangent (void) const |
| Return the tangent stiffness matrix at the current trial strain. More... | |
| virtual const Matrix & | getInitialTangent (void) const |
| virtual const Vector & | getStress (void) const |
| Returns the material stress vector at the current trial strain. | |
| virtual const Vector & | getStrain (void) const |
| Returns strain. | |
| const Vector & | getGeneralizedStress (void) const |
| const Vector & | getGeneralizedStrain (void) const |
| virtual void | setInitialGeneralizedStrain (const Vector &) |
| Asigna el initial strain value. | |
| const Vector & | getInitialGeneralizedStrain (void) const |
| Return the initial strain. | |
| virtual const Vector & | getCommittedStress (void) |
| Returns commited stresses. | |
| virtual const Vector & | getCommittedStrain (void) |
| Returns commited strains. | |
| virtual int | setTrialStrain (const Tensor &v) |
| Set trial strain value. | |
| virtual int | setTrialStrain (const Tensor &v, const Tensor &r) |
| virtual int | setTrialStrainIncr (const Tensor &v) |
| Set trial strain increment. | |
| virtual int | setTrialStrainIncr (const Tensor &v, const Tensor &r) |
| virtual const straintensor & | getPlasticStrainTensor (void) const |
| virtual const straintensor | getFp (void) |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &matInformation) |
| virtual int | getResponse (int responseID, Information &matInformation) |
| Returns material response. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual const Vector & | getStressSensitivity (int gradNumber, bool conditional) |
| virtual const Vector & | getStrainSensitivity (int gradNumber) |
| virtual const Matrix & | getTangentSensitivity (int gradNumber) |
| virtual const Matrix & | getDampTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Additional Inherited Members | |
| Protected Member Functions inherited from XC::FiniteDeformationElastic3D | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::NDMaterial | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
| Protected Attributes inherited from XC::FiniteDeformationElastic3D | |
| double | rho |
| Material density. | |
Detailed Description
??.
Member Function Documentation
§ recvSelf()
|
virtual |
Receive the object.
Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.
Implements XC::MovableObject.
§ sendSelf()
|
virtual |
Send the object.
Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.
Implements XC::MovableObject.
The documentation for this class was generated from the following files:
- src/material/nD/FiniteDeformation/NeoHookeanCompressible3D.h
- src/material/nD/FiniteDeformation/NeoHookeanCompressible3D.cpp
