Three-dimensional array of pointers to nodes. More...
#include <NodePtrArray3d.h>

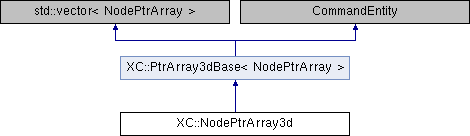

Inheritance diagram for XC::NodePtrArray3d:
Public Member Functions | |
| NodePtrArray3d (const size_t n_layers=0) | |
| Default constructor. | |
| NodePtrArray3d (const size_t, const size_t, const size_t) | |
| Constructor. | |
| Node * | findNode (const int &tag) |
| Returns (if it exists) a pointer to the node which tag is being passed as parameter. More... | |
| const Node * | findNode (const int &tag) const |
| Returns (if it exists) a pointer to the node which tag is being passed as parameter. More... | |
| Node * | getNearestNode (const Pos3d &p) |
| Returns the node closest to the point being passed as parameter. | |
| const Node * | getNearestNode (const Pos3d &p) const |
| Returns the node closest to the point being passed as parameter. | |
| ID | getNodeIndices (const Node *) const |
| Returns the indexes of the node identified by the pointer being passed as parameter. More... | |
| template<class F > | |
| std::deque< double > | RowSimpsonIntegration (const F &, const std::string &, const size_t &, const ExprAlgebra &, const size_t &) const |
| Vector | IRowSimpsonIntegration (const size_t &, const size_t &, const ExprAlgebra &, const size_t &n=10) const |
| Vector | JRowSimpsonIntegration (const size_t &, const size_t &, const ExprAlgebra &, const size_t &n=10) const |
| Vector | KRowSimpsonIntegration (const size_t &, const size_t &, const ExprAlgebra &, const size_t &n=10) const |
| void | fix (const SFreedom_Constraint &) const |
| Impone desplazamiento nulo en the nodes de this set. | |
| std::vector< int > | getTags (void) const |
| void | Print (std::ostream &os) const |
 Public Member Functions inherited from XC::PtrArray3dBase< NodePtrArray > | |
| PtrArray3dBase (const size_t &n_layers=0) | |
| Default constructor. | |
| PtrArray3dBase (const size_t &n_layers, const NodePtrArray &) | |
| Constructor. | |
| PtrArray3dBase (const size_t &, const size_t &, const size_t &) | |
| Constructor. | |
| bool | check_range (const size_t &, const size_t &, const size_t &) const |
| void | resize (const size_t &) |
| Resize the array. | |
| void | resize (const size_t &, const size_t &, const size_t &, const value_type &v=value_type()) |
| Resize the array. | |
| size_t | getNumberOfLayers (void) const |
| size_t | getNumberOfRows (void) const |
| size_t | getNumberOfColumns (void) const |
| size_t | GetDim (void) const |
| bool | isIRow (void) const |
| Returns true if only index I varies. | |
| bool | isJRow (void) const |
| Returns true if only index J varies. | |
| bool | isKRow (void) const |
| Returns true if only index K varies. | |
| bool | isIConstantLayer (void) const |
| Returns true if the indexes that vary are los J y K. | |
| bool | isJConstantLayer (void) const |
| Returns true if the indexes that vary are los I y K. | |
| bool | isKConstantLayer (void) const |
| Returns true if the indexes that vary are los I y J. | |
| size_t | NumPtrs (void) const |
| Return the number of elements of the array. | |
| bool | Null (void) const |
| Returns true if it's empty or the pointers are null. | |
| bool | HasNull (void) const |
| Returns true if it's empty or some of the pointers are null. | |
| void | clearAll (void) |
| Clears all. | |
| void | dim (const size_t &, const size_t &, const size_t &) |
| Matrix dimensions. | |
| const NodePtrArray & | operator() (const size_t &layer) const |
| Return the i-th layer. | |
| NodePtrArray & | operator() (const size_t &layer) |
| Return the i-th layer. | |
| const_reference | operator() (const size_t &i, const size_t &j, const size_t &k) const |
| reference | operator() (const size_t &i, const size_t &j, const size_t &k) |
| reference | getAtI (const size_t &i) |
| const_reference | getAtI (const size_t &) const |
| reference | getAtIJ (const size_t &, const size_t &) |
| const_reference | getAtIJ (const size_t &, const size_t &) const |
| value_type | getAtIJK (const size_t &, const size_t &, const size_t &) |
| box_const_ref | getBoxConstRef (size_t layer=1, size_t f=1, size_t c=1) const |
| box_const_ref | getBoxConstRef (const Array3dRange &rango) const |
| constant_i_layer_const_ref | getConstantILayerConstRef (size_t layer=1, size_t f=1, size_t c=1) const |
| constant_i_layer_const_ref | getConstantILayerConstRef (size_t layer, const RangoIndice &, const RangoIndice &) const |
| constant_j_layer_const_ref | getConstantJLayerConstRef (size_t f=1, size_t layer=1, size_t c=1) const |
| constant_j_layer_const_ref | getConstantJLayerConstRef (const RangoIndice &, const size_t &f, const RangoIndice &) const |
| constant_k_layer_const_ref | getConstantKLayerConstRef (size_t c=1, size_t layer=1, size_t f=1) const |
| constant_k_layer_const_ref | getConstantKLayerConstRef (const RangoIndice &, const RangoIndice &, const size_t &) const |
| const_ref_i_row | getIRowConstRef (size_t f=1, size_t c=1) const |
| const_ref_i_row | getIRowConstRef (const RangoIndice &, const size_t &f, const size_t &c) const |
| const_ref_j_row | getJRowConstRef (size_t layer=1, size_t c=1) const |
| const_ref_j_row | getJRowConstRef (const size_t &layer, const RangoIndice &, const size_t &c) const |
| const_ref_k_row | getKRowConstRef (size_t layer=1, size_t f=1) const |
| const_ref_k_row | getKRowConstRef (const size_t &layer, const size_t &f, const RangoIndice &) const |
| box_var_ref | getBoxVarRef (size_t layer=1, size_t f=1, size_t c=1) |
| box_var_ref | getBoxVarRef (const Array3dRange &) |
| constant_i_layer_variable_ref | getConstantILayerVarRef (size_t layer=1, size_t f=1, size_t c=1) |
| constant_i_layer_variable_ref | getConstantILayerVarRef (const size_t &layer, const RangoIndice &, const RangoIndice &) |
| constant_j_layer_variable_ref | getConstantJLayerVarRef (size_t f=1, size_t layer=1, size_t c=1) |
| constant_j_layer_variable_ref | getConstantJLayerVarRef (const RangoIndice &, const size_t &f, const RangoIndice &) |
| constant_k_layer_variable_ref | getConstantKLayerVarRef (size_t c=1, size_t layer=1, size_t f=1) |
| constant_k_layer_variable_ref | getConstantKLayerVarRef (const RangoIndice &, const RangoIndice &, const size_t &c) |
| var_ref_i_row | getVarRefIRow (size_t f=1, size_t c=1) |
| var_ref_i_row | getVarRefIRow (const RangoIndice &, const size_t &f, const size_t &c) |
| var_ref_j_row | getVarRefJRow (size_t layer=1, size_t c=1) |
| var_ref_j_row | getVarRefJRow (const size_t &layer, const RangoIndice &, const size_t &c) |
| var_ref_k_row | getVarRefKRow (size_t layer=1, size_t f=1) |
| var_ref_k_row | getVarRefKRow (const size_t &layer, const size_t &f, const RangoIndice &) |
| void | putBox (size_t layer_offset, size_t row_offset, size_t offset_col, const PtrArray3dBase< NodePtrArray > &otra) |
| Put in the array the array argument. | |
| std::vector< int > | getLayerObjectsTags (const size_t &) |
| Return the identifiers of the objects in the layer. | |
| std::vector< int > | getRowObjectsTags (const size_t &, const size_t &) |
| Return the identifiers of the objects in the row. | |
| std::vector< int > | getRowsObjectsTags (const size_t &) |
| Return the identifiers of the objects in the f-th rows. | |
| std::vector< int > | getColumnObjectsTags (const size_t &, const size_t &) |
| Return the identifiers of the objects in the column. | |
| std::vector< int > | getColumnsObjectsTags (const size_t &) |
| Return the identifiers of the objects in the c-th columns. | |
| std::vector< int > | getLayerInteriorObjectsTags (const size_t &) |
| Return the identifiers of the objects in the layer interior. | |
| std::vector< int > | getRowInteriorObjectsTags (const size_t &, const size_t &) |
| Return the identifiers of the objects in the row interior. | |
| std::vector< int > | getRowsInteriorObjectsTags (const size_t &) |
| Return the identifiers of the objects in the c-th rows interior. | |
| std::vector< int > | getColumnInteriorObjectsTags (const size_t &, const size_t &) |
| Return the identifiers of the objects in the c-th column interior. | |
| std::vector< int > | getColumnsInteriorObjectsTags (const size_t &) |
| Return the identifiers of the objects in the c-th columns interior. | |
| std::vector< int > | getTagsInteriorObjs (void) |
| Return the tabs of the inerior elements. | |
Additional Inherited Members | |
| Public Types inherited from XC::PtrArray3dBase< NodePtrArray > | |
| typedef NodePtrArray ::value_type | value_type |
| typedef NodePtrArray ::reference | reference |
| typedef NodePtrArray ::const_reference | const_reference |
| typedef std::vector< NodePtrArray >::iterator | iterator |
| typedef std::vector< NodePtrArray >::const_iterator | const_iterator |
| typedef Array3dBoxConstRef< PtrArray3dBase< NodePtrArray > > | box_const_ref |
| typedef ConstantILayerConstRef< PtrArray3dBase< NodePtrArray > > | constant_i_layer_const_ref |
| typedef ConstantJLayerConstRef< PtrArray3dBase< NodePtrArray > > | constant_j_layer_const_ref |
| typedef ConstantKLayerConstRef< PtrArray3dBase< NodePtrArray > > | constant_k_layer_const_ref |
| typedef IRowConstRef< PtrArray3dBase< NodePtrArray > > | const_ref_i_row |
| typedef JRowConstRef< PtrArray3dBase< NodePtrArray > > | const_ref_j_row |
| typedef KRowConstRef< PtrArray3dBase< NodePtrArray > > | const_ref_k_row |
| typedef Array3dBoxVarRef< PtrArray3dBase< NodePtrArray > > | box_var_ref |
| typedef ConstantILayerVarRef< PtrArray3dBase< NodePtrArray > > | constant_i_layer_variable_ref |
| typedef ConstantJLayerVarRef< PtrArray3dBase< NodePtrArray > > | constant_j_layer_variable_ref |
| typedef ConstantKLayerVarRef< PtrArray3dBase< NodePtrArray > > | constant_k_layer_variable_ref |
| typedef IRowVarRef< PtrArray3dBase< NodePtrArray > > | var_ref_i_row |
| typedef JRowVarRef< PtrArray3dBase< NodePtrArray > > | var_ref_j_row |
| typedef KRowVarRef< PtrArray3dBase< NodePtrArray > > | var_ref_k_row |
| Protected Member Functions inherited from XC::PtrArray3dBase< NodePtrArray > | |
| void | set_owner_matrices (void) |
| Sets the owner for the matrices. | |
Detailed Description
Three-dimensional array of pointers to nodes.
Member Function Documentation
§ findNode() [1/2]
| XC::Node * XC::NodePtrArray3d::findNode | ( | const int & | tag | ) |
Returns (if it exists) a pointer to the node which tag is being passed as parameter.
§ findNode() [2/2]
| const XC::Node * XC::NodePtrArray3d::findNode | ( | const int & | tag | ) | const |
Returns (if it exists) a pointer to the node which tag is being passed as parameter.
§ getNodeIndices()
Returns the indexes of the node identified by the pointer being passed as parameter.
The documentation for this class was generated from the following files:
- src/preprocessor/multi_block_topology/matrices/NodePtrArray3d.h
- src/preprocessor/multi_block_topology/matrices/NodePtrArray3d.cc
