XC::SFreedom_Constraint Class Reference

Single freedom constraint. More...

#include <SFreedom_Constraint.h>

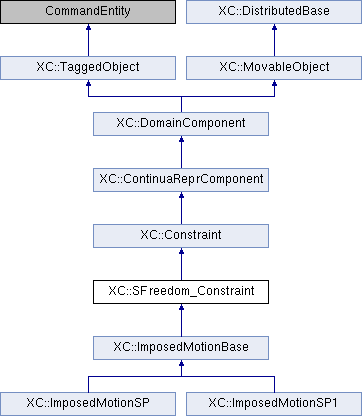

Inheritance diagram for XC::SFreedom_Constraint:

Public Member Functions
	SFreedom_Constraint (int classTag)
	Default constructor. More...
	SFreedom_Constraint (int spTag, int nodeTag)
	Constructor. More...
	SFreedom_Constraint (int spTag, int nodeTag, int ndof, int classTag)
	Constructor for a subclass to use. More...
	SFreedom_Constraint (int spTag, int nodeTag, int ndof, double value, bool isConstant=true)
	Constructor. More...
virtual SFreedom_Constraint *	getCopy (void) const
	Virtual constructor.
SFreedom_Constraint *	getCopy (const int &) const
	Returns a copy of the contraint with a different tag, it's used in BoundaryCondHandler::addSFreedom_Constraint(nodeTag,seed). More...
virtual int	getDOF_Number (void) const
	Returns the constrained DOF number.
virtual bool	affectsNodeAndDOF (int, int) const
	Returns true if the constraint affects the node and DOF arguments.
virtual int	applyConstraint (double loadFactor)
	Applies the constraint with the load factor being passed as parameter. More...
virtual double	getValue (void) const
	Returns the value of the prescribed displacement. More...
virtual bool	isHomogeneous (void) const
	Returns true if it's an homogeneous constraint (prescribed value for the DOF is zero). More...
virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the load pattern tag for the constraint. More...
virtual int	getLoadPatternTag (void) const
	Return the load pattern tag of the constraint.
void	setIsConstant (const bool &b)
bool	getIsConstant (void) const
int	getVtkCellType (void) const
	Returns the cell type to be used to represent the object in VTK graphics. More...
int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.
int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.
virtual void	Print (std::ostream &s, int flag=0)
	Prints constraint information.
Public Member Functions inherited from XC::Constraint
	Constraint (int classTag)
	Default constructor; receives the tag of the class as a paramenter. More...
	Constraint (int spTag, int nodeTag, int classTag)
	Constructor. More...
	~Constraint (void)
	Destructor.
void	setNodeTag (const int &nt)
	Sets the identifier of the node that will be constrained. More...
virtual int	getNodeTag (void) const
	Returns the identifier of the constrained node.
virtual const Node *	getNode (void) const
	Returns a pointer to the constrained node.
virtual int	getNodeIdx (void) const
	Returns an index for the node (used for VTK arrays).
virtual bool	affectsNode (int) const
	Returns true ifafecta to the node cuyo tag being passed as parameter.
void	setDomain (Domain *)
	Sets the domain for the constraint. More...
Public Member Functions inherited from XC::ContinuaReprComponent
	ContinuaReprComponent (int classTag)
	ContinuaReprComponent (int tag, int classTag)
virtual const bool	isDead (void) const
virtual const bool	isAlive (void) const
virtual void	kill (void)
virtual void	alive (void)
Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.
size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).
virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...
const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.
Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.
void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...
void	assignTag (int newTag)
	Set tag (to be called from Python interface).
int	getTag (void) const
	Returns the tag associated with the object.
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...
	MovableObject (int classTag)
	Constructor. More...
	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.
MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.
int	getClassTag (void) const
	Return the class identifier.
int	getDbTag (void) const
	Return the object identifier in the database.
int	getDbTag (CommParameters &)
	Return the object identifier in the database.
void	setDbTag (int dbTag)
	Sets the object identifier in the database.
void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value param to the parameter argv.
virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by parameterID with info.
virtual int	activateParameter (int parameterID)
	Activates the parameter identified by parameterID.
virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by var.
virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by var.
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags of the object members.
int	sendData (CommParameters &cp)
	Sends data through the channel being passed as parameter.
int	recvData (const CommParameters &cp)
	Receives data through the channel being passed as parameter.
Protected Member Functions inherited from XC::Constraint
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter. More...
int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter. More...
Protected Member Functions inherited from XC::ContinuaReprComponent
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.
Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
int	dofNumber
	identifies which of the nodes dof is constrained
double	valueR
	the reference value
double	valueC
	if constant = the reference value, if not constant = the reference value * load factor
bool	isConstant
	flag indicating if constant
int	loadPatternTag
Protected Attributes inherited from XC::Constraint
int	constrNodeTag
	constrained node tag

Detailed Description

Single freedom constraint.

An SFreedom_Constraint represents a single degree of freedom constraint in the domain. A single point constraint specifies the response of a particular degree-of-freedom at a node. The declaration that all methods are virtual allows for time varying constraints to be introduced.

Constructor & Destructor Documentation

SFreedom_Constraint() [1/4]

XC::SFreedom_Constraint::SFreedom_Constraint

(

int

classTag

)

Default constructor.

Provided for the FEM_ObjectBroker to be able to instantiate an object; the data for this object will be read from a Channel object when recvSelf() is invoked.

Parameters

classTag

class identifier.

SFreedom_Constraint() [2/4]

XC::SFreedom_Constraint::SFreedom_Constraint	(	int	tag,
		int	nodeTag
	)

Constructor.

Parameters

tag	Constraint identifier.
nodeTag	identifier of the node to constraint tag.

SFreedom_Constraint() [3/4]

XC::SFreedom_Constraint::SFreedom_Constraint	(	int	tag,
		int	nodeTag,
		int	ndof,
		int	classTag
	)

Constructor for a subclass to use.

Provided for subclasses to use. The subclasses can vary the value of the imposed displacement when getValue() is invoked. If this constructor is used the isHomogeneous() method will always return false. The integer value tag is used to identify the SFreedom_Constraint among all other SFreedom_Constraints.

Parameters

tag	Constraint identifier.
nodeTag	identifier of the node to constraint.
ndof	DOF number to constraint.
classTag	class identifier.

SFreedom_Constraint() [4/4]

XC::SFreedom_Constraint::SFreedom_Constraint	(	int	tag,
		int	nodeTag,
		int	ndof,
		double	value,
		bool	ISconstant = true
	)

Constructor.

To construct a single point constraint to constrain the trial displacement of the ndof'th dof at node node to the value given by value. The integer value tag is used to identify the SFreedom_Constraint among all other SFreedom_Constraints. If value is equal to \(0.0\) the method isHomogeneous() will always return true, otherwise false.

Parameters

tag	Constraint identifier.
nodeTag	identifier of the node to constraint.
ndof	DOF number to constraint.
value	prescribed value for DOF.
ISconstant	True if the prescribed value is constant in time.

Member Function Documentation

applyConstraint()

int XC::SFreedom_Constraint::applyConstraint ( double  loadFactor )

virtual

Applies the constraint with the load factor being passed as parameter.

To set the value of the constraint for the load factor given by {loadFactor}. The constraint is set equal to loadFactor * {value} if the constraint is not constant, or value if the constraint was identified as constant in the constructor.

Implements XC::Constraint.

Reimplemented in XC::ImposedMotionSP, and XC::ImposedMotionSP1.

getCopy()

XC::SFreedom_Constraint * XC::SFreedom_Constraint::getCopy

(

const int &

spTag

)

const

Returns a copy of the contraint with a different tag, it's used in BoundaryCondHandler::addSFreedom_Constraint(nodeTag,seed).

getValue()

double XC::SFreedom_Constraint::getValue ( void  ) const

virtual

Returns the value of the prescribed displacement.

To return the value of the constraint determined in the last call to applyConstraint(). This base class returns value passed in the constructor.

Reimplemented in XC::ImposedMotionBase.

getVtkCellType()

int XC::SFreedom_Constraint::getVtkCellType ( void  ) const

virtual

Returns the cell type to be used to represent the object in VTK graphics.

Reimplemented from XC::Constraint.

isHomogeneous()

bool XC::SFreedom_Constraint::isHomogeneous ( void  ) const

virtual

Returns true if it's an homogeneous constraint (prescribed value for the DOF is zero).

To return a boolean indicating whether or not the constraint is a homogeneous constraint. A homogeneous constraint is one where the value of the constraint, value, is always \(0\). This information can be used by the ConstraintHandler to reduce the number of equations in the system.

Reimplemented in XC::ImposedMotionSP1, and XC::ImposedMotionBase.

setLoadPatternTag()

void XC::SFreedom_Constraint::setLoadPatternTag ( int  tag )

virtual

Sets the load pattern tag for the constraint.

Parameters

tag	load pattern identifier.

---

The documentation for this class was generated from the following files:

• src/domain/constraints/SFreedom_Constraint.h
• src/domain/constraints/SFreedom_Constraint.cpp
