PDeltaCrdTransf2d provides the abstraction of a linear transformation for a spatial frame between the global and basic coordinate systems. More...
#include <PDeltaCrdTransf2d.h>

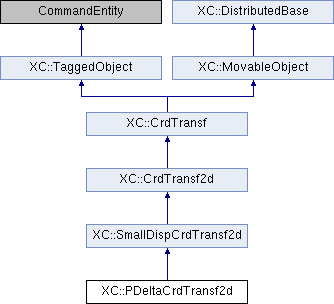

Inheritance diagram for XC::PDeltaCrdTransf2d:
Public Member Functions | |
| PDeltaCrdTransf2d (int tag) | |
| PDeltaCrdTransf2d (int tag, const Vector &rigJntOffsetI, const Vector &rigJntOffsetJ) | |
| int | update (void) |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| int | revertToStart (void) |
| const Vector & | getGlobalResistingForce (const Vector &basicForce, const Vector &p0) const |
| const Matrix & | getGlobalStiffMatrix (const Matrix &basicStiff, const Vector &basicForce) const |
| const Matrix & | getInitialGlobalStiffMatrix (const Matrix &basicStiff) const |
| CrdTransf2d * | getCopy (void) const |
| Virtual constructor. | |
| int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
 Public Member Functions inherited from XC::SmallDispCrdTransf2d | |
| SmallDispCrdTransf2d (int tag, int classTag) | |
| Default constructor. | |
| const Vector & | getPointGlobalCoordFromLocal (const Vector &) const |
| Return the global coordinates of the point from the local ones. | |
| const Vector & | getPointGlobalDisplFromBasic (double xi, const Vector &) const |
| Return the vector desplazamiento expressed in global coordinates. | |
| int | sendSelf (CommParameters &) |
| Send the object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| Public Member Functions inherited from XC::CrdTransf2d | |
| CrdTransf2d (int tag, int classTag) | |
| constructor: | |
| int | initialize (Node *node1Pointer, Node *node2Pointer) |
| Calculates initial displecements from those of the nodes. More... | |
| double | getInitialLength (void) const |
| Return the initial length of the element. | |
| double | getDeformedLength (void) const |
| Return the length of the deformed element. | |
| const Vector & | getBasicTrialDisp (void) const |
| Return the displacements expresados on the basic system. | |
| const Vector & | getBasicIncrDisp (void) const |
| Return the incrementos de displacement expresados on the basic system. | |
| const Vector & | getBasicIncrDeltaDisp (void) const |
| const Vector & | getBasicTrialVel (void) const |
| const Vector & | getBasicTrialAccel (void) const |
| const Vector & | getInitialI (void) const |
| Return the ${i}$ unit vector of the local axis expressed in global coordinates for the initial (undeformed) geometry. More... | |
| const Vector & | getI (void) const |
| Return the ${i}$ unit vector of the local axis expressed in global coordinates for the current geometry. More... | |
| const Vector & | getInitialJ (void) const |
| Return the ${j}$ unit vector of the local axis expressed in global coordinates for the initial (undeformed) geometry. More... | |
| const Vector & | getJ (void) const |
| Return the ${j}$ unit vector of the local axis expressed in global coordinates for the current geometry. More... | |
| int | getInitialLocalAxes (Vector &xAxis, Vector &yAxis) const |
| axis for the initial (undeformed) geometry. | |
| int | getLocalAxes (Vector &xAxis, Vector &yAxis) const |
| current position. | |
| Matrix | getLocalAxes (bool) const |
| Returs a matrix with the axes of the element as matrix rows [[x1,y1,z1],[x2,y2,z2],...ยท]. | |
| Pos2d | getPosNodeI (void) const |
| Return the position of the node I. | |
| Pos2d | getPosNodeJ (void) const |
| Return the position of the node J. | |
| Ref2d2d | getLocalReference (void) const |
| Return the local reference system. | |
| Vector | getPointLocalCoordFromGlobal (const Vector &xg) const |
| Return the local coordinates of the point from the local ones. | |
| const Vector & | getPointGlobalCoordFromBasic (const double &xi) const |
| Return the global coordinates of the point. | |
| const Matrix & | getPointsGlobalCoordFromBasic (const Vector &) const |
| Return the global coordinates of the points. | |
| const Vector & | getVectorGlobalCoordFromLocal (const Vector &localCoords) const |
| Return the vector expressed in global coordinates. | |
| const Matrix & | getVectorGlobalCoordFromLocal (const Matrix &localCoords) const |
| Return the vectors expressed in global coordinates. | |
| const Vector & | getVectorLocalCoordFromGlobal (const Vector &globalCoords) const |
| Return the vector expressed in local coordinates. | |
| const Matrix & | getCooNodes (void) const |
| Return the coordinates of the nodes as rows of the returned matrix. | |
| const Matrix & | getCooPoints (const size_t &ndiv) const |
| Return points distributed between the nodes as a matrix with the coordinates as rows. | |
| const Vector & | getCooPoint (const double &xrel) const |
| Return the point that correspond to the relative coordinate 0<=xrel<=1. | |
| Public Member Functions inherited from XC::CrdTransf | |
| CrdTransf (int tag, int classTag, int dim_joint_offset) | |
| Constructor. | |
| virtual | ~CrdTransf (void) |
| Destructor virtual. | |
| const TransfCooHandler * | GetTransfCooHandler (void) const |
| Returns (if possible) a pointer to the coordinate transformation handler (owner). | |
| TransfCooHandler * | GetTransfCooHandler (void) |
| Returs a pointer to the coordinate transformation handler (if possible). | |
| std::string | getName (void) const |
| Return the name of the coordinate transformation. | |
| double | getLength (bool initialGeometry=true) const |
| virtual const Vector & | getBasicDisplSensitivity (int gradNumber) |
| virtual const Vector & | getGlobalResistingForceShapeSensitivity (const Vector &basicForce, const Vector &uniformLoad) |
| virtual const Vector & | getBasicTrialDispShapeSensitivity (void) |
| double | getPointBasicCoordFromGlobal (const Vector &globalCoords) const |
| const Matrix & | getPointsGlobalCoordFromLocal (const Matrix &localCoords) const |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::SmallDispCrdTransf2d | |
| Vector & | basic_to_local_resisting_force (const XC::Vector &pb, const XC::Vector &p0) const |
| Transform resisting forces from the basic system to local coordinates. | |
| const Vector & | local_to_global_resisting_force (const Vector &pl) const |
| Transform resisting forces from local to global coordinates. | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags of the class members. More... | |
| Protected Member Functions inherited from XC::CrdTransf2d | |
| void | set_rigid_joint_offsetI (const Vector &rigJntOffsetI) |
| check rigid joint offset for node I | |
| void | set_rigid_joint_offsetJ (const Vector &rigJntOffsetJ) |
| check rigid joint offset for node J | |
| double | T02 (void) const |
| double | T12 (void) const |
| double | T35 (void) const |
| double | T45 (void) const |
| void | nodes_init_disp (void) |
| Checks for initial displacements on nodes and, if they exist,. | |
| int | computeElemtLengthAndOrient (void) const |
| Computes the length and the orientation of the associated element. | |
| int | sendData (CommParameters &cp) |
| Sends object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::CrdTransf | |
| int | set_node_ptrs (Node *nodeIPointer, Node *nodeJPointer) |
| Asigna los pointers to node dorsal y frontal. | |
| int | sendData (CommParameters &cp) |
| Sends object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from XC::CrdTransf2d | |
| double | cosTheta |
| double | sinTheta |
| direction cosines of undeformed element wrt to global system | |
| Protected Attributes inherited from XC::CrdTransf | |
| Node * | nodeIPtr |
| Node * | nodeJPtr |
| pointers to the nodes extremos of the element. | |
| double | L |
| element length | |
| Vector | nodeIOffset |
| Vector | nodeJOffset |
| rigid joint offsets | |
| std::vector< double > | nodeIInitialDisp |
| Initial displacement for I node. | |
| std::vector< double > | nodeJInitialDisp |
| Initial displacement for J node. | |
| bool | initialDispChecked |
Detailed Description
PDeltaCrdTransf2d provides the abstraction of a linear transformation for a spatial frame between the global and basic coordinate systems.
The documentation for this class was generated from the following files:
- src/domain/mesh/element/utils/coordTransformation/PDeltaCrdTransf2d.h
- src/domain/mesh/element/utils/coordTransformation/PDeltaCrdTransf2d.cpp
