PenaltyMFreedom_FE is a subclass of FE_Element which handles MFreedom_Constraints using the penalty method. More...

#include <PenaltyMFreedom_FE.h>

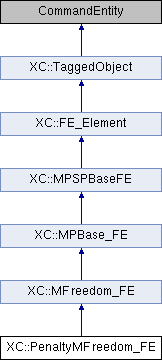

Inheritance diagram for XC::PenaltyMFreedom_FE:

Public Member Functions
virtual int	setID (void)
	Method to set the correMPonding index of the ID to value. More...

virtual const Matrix &	getTangent (Integrator *theIntegrator)
	If the MP_Constraint is time-varying, from the MP_Constraint `theMFreedom` it obtains the current \(C_{cr}\) matrix; it then forms the \(C\) matrix and finally it sets the tangent matrix to be \(\alpha //! C^TC\). More...

virtual const Vector &	getResidual (Integrator *theIntegrator)
	Returns the residual, a \(0\) Vector.

virtual const Vector &	getTangForce (const Vector &x, double fact=1.0)
	CURRENTLY just returns the \(0\) residual. More...

virtual const Vector &	getK_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getC_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getM_Force (const Vector &x, double fact=1.0)
	Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

Public Member Functions inherited from XC::FE_Element
virtual	~FE_Element (void)
	Destructor.

virtual const ID &	getDOFtags (void) const
	Returns the tags of the associated DOF_Groups. More...

virtual const ID &	getID (void) const
	Method to return the ID containing equation numbers. More...

void	setAnalysisModel (AnalysisModel &theModel)
	Sets the link with the analysis model. More...

virtual void	zeroTangent (void)
	Zeros the tangent matrix. More...

virtual void	addKtToTang (double fact=1.0)
	Adds the product of `fact` times the element's tangent stiffness matrix to the tangent. More...

virtual void	addKiToTang (double fact=1.0)
	Adds the product of `fact` times the element's initial stiffness matrix to the tangent. More...

virtual void	addCtoTang (double fact=1.0)
	Adds the product of `fact` times the element's damping matrix to the tangent. More...

virtual void	addMtoTang (double fact=1.0)
	Adds the product of `fact` times the element's mass matrix to the tangent. More...

virtual void	zeroResidual (void)
	Zeros the residual vector. More...

virtual void	addRtoResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector and `fact`. More...

virtual void	addRIncInertiaToResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector with inertia forces included and `fact`. More...

virtual void	addM_Force (const Vector &accel, double fact=1.0)
	Adds to the residual the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

virtual void	addD_Force (const Vector &vel, double fact=1.0)
	Adds to the residual the product of elements current damping matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `vel` associated with the FE_Elements equation numbers. More...

virtual int	updateElement (void)

virtual Integrator *	getLastIntegrator (void)
	Method which returns the last integrator supplied in a formTangent() or a formResidual() invocation. More...

virtual const Vector &	getLastResponse (void)
	A method which invokes getLastResponse() on the Integrator object that was last passed as an argument to any of the routines. More...

Element *	getElement (void)
	Returns a pointer to the associated element.

virtual void	Print (std::ostream &, int=0)
	Print stuff.

virtual void	addResistingForceSensitivity (int gradNumber, double fact=1.0)

virtual void	addM_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual void	addD_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual int	commitSensitivity (int gradNum, int numGrads)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Friends
class	AnalysisModel

Additional Inherited Members
Protected Member Functions inherited from XC::MFreedom_FE
	MFreedom_FE (int tag, int numDOF_Group, int ndof, MFreedom_Constraint &theMFreedom, const double &alpha=1.0)
	Constructor.

int	determineConstrainedDOFsIDs (const int &)
	determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More...

int	determineRetainedDOFsIDs (const int &)
	determine determine the IDs for the retained dof's

DOF_Group *	determineRetainedNodeDofGrpPtr (void)
	get the DOF_Group attached to the retained node.

Protected Member Functions inherited from XC::MPBase_FE
	MPBase_FE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0)
	Constructor.

int	determineConstrainedDOFsIDs (const MFreedom_ConstraintBase &, const int &)
	determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More...

DOF_Group *	determineConstrainedNodeDofGrpPtr (void)
	get the DOF_Group attached to the constrained node.

Protected Member Functions inherited from XC::MPSPBaseFE
	MPSPBaseFE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0)

Protected Member Functions inherited from XC::FE_Element
void	addLocalM_Force (const Vector &accel, double fact=1.0)

void	addLocalD_Force (const Vector &vel, double fact=1.0)

void	addLocalM_ForceSensitivity (int gradNumber, const Vector &accel, double fact=1.0)

void	addLocalD_ForceSensitivity (int gradNumber, const Vector &vel, double fact=1.0)

	FE_Element (int tag, Element *theElement)
	Construictor that take the corresponding model element. More...

	FE_Element (int tag, int numDOF_Group, int ndof)
	Constructor. More...

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes inherited from XC::MFreedom_FE
MFreedom_Constraint *	theMFreedom

Node *	theRetainedNode

Protected Attributes inherited from XC::MPBase_FE
Node *	theConstrainedNode

Protected Attributes inherited from XC::MPSPBaseFE
double	alpha

Matrix	tang

Vector	resid

Protected Attributes inherited from XC::FE_Element
ID	myDOF_Groups

ID	myID

Detailed Description

PenaltyMFreedom_FE is a subclass of FE_Element which handles MFreedom_Constraints using the penalty method.

PenaltyMP_FE is a subclass of FE_Element used to enforce a multi point constraint, of the form \(U_c = C_{cr} U_r\), where \(U_c\) are the constrained degrees-of-freedom at the constrained node, \(U_r\) are the retained degrees-of-freedom at the retained node and \(C_{cr}\) a matrix defining the relationship between these degrees-of-freedom.

To enforce the constraint a matrix \(\alpha C^T C\) is added to the tangent for the degrees-of-freedom \([U_c\) \(U_r]\), where \(C = [-I\) \(C_{cr}]\). Nothing is added to the residual.

Member Function Documentation

§ getM_Force()

const XC::Vector & XC::PenaltyMFreedom_FE::getM_Force	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector accel associated with the FE_Elements equation numbers.

If no element is associated with the FE_Element or the associated element is a Subdomain a warning message is printed and an error Vector is returned.

Reimplemented from XC::FE_Element.

§ getTangent()

const XC::Matrix & XC::PenaltyMFreedom_FE::getTangent ( Integrator * theNewIntegrator )

virtual

If the MP_Constraint is time-varying, from the MP_Constraint theMFreedom it obtains the current \(C_{cr}\) matrix; it then forms the \(C\) matrix and finally it sets the tangent matrix to be \(\alpha //! C^TC\).

Returns the tangent matrix.

Reimplemented from XC::FE_Element.

§ getTangForce()

const XC::Vector & XC::PenaltyMFreedom_FE::getTangForce	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

CURRENTLY just returns the \(0\) residual.

THIS WILL NEED TO CHANGE FOR ELE-BY-ELE SOLVERS.

Reimplemented from XC::FE_Element.

§ setID()

int XC::PenaltyMFreedom_FE::setID ( void )

virtual

Method to set the correMPonding index of the ID to value.

Causes the PenaltyMP_FE to determine the mapping between it's equation numbers and the degrees-of-freedom. This information is obtained by using the mapping information at the DOF_Group objects associated with the constrained and retained nodes to determine the mappings between the degrees-of-freedom identified in the constrainedID and the retainedID at the MP_Constraint theMFreedom. Returns \(0\) if successful. Prints a warning message and returns a negative number if an error occurs: \(-2\) if the Node has no associated DOF_Group, \(-3\) if the constrained DOF specified is invalid for this Node (sets corresponding ID component to \(-1\) so nothing is added to the tangent) and \(-4\) if the ID in the DOF_Group is too small for the Node (again setting corresponding ID component to \(-1\)).

Reimplemented from XC::FE_Element.

The documentation for this class was generated from the following files:

src/solution/analysis/model/fe_ele/penalty/PenaltyMFreedom_FE.h
src/solution/analysis/model/fe_ele/penalty/PenaltyMFreedom_FE.cpp
