PenaltyMRMFreedom_FE is a subclass of FE_Element which handles MRMFreedom_Constraints using the penalty method. More...

#include <PenaltyMRMFreedom_FE.h>

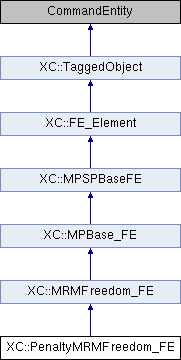

Inheritance diagram for XC::PenaltyMRMFreedom_FE:

Public Member Functions
virtual int	setID (void)
	Method to set the correMPonding index of the ID to value.

virtual const Matrix &	getTangent (Integrator *theIntegrator)
	Computes and returns the tangent stiffness matrix. More...

virtual const Vector &	getResidual (Integrator *theIntegrator)
	Computes and returns the residual vector. More...

virtual const Vector &	getTangForce (const Vector &x, double fact=1.0)
	Returns the product of FE_Elements current tangent matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `disp` associated with the FE_Elements equation numbers. More...

virtual const Vector &	getK_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getC_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getM_Force (const Vector &x, double fact=1.0)
	Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

Public Member Functions inherited from XC::FE_Element
virtual	~FE_Element (void)
	Destructor.

virtual const ID &	getDOFtags (void) const
	Returns the tags of the associated DOF_Groups. More...

virtual const ID &	getID (void) const
	Method to return the ID containing equation numbers. More...

void	setAnalysisModel (AnalysisModel &theModel)
	Sets the link with the analysis model. More...

virtual void	zeroTangent (void)
	Zeros the tangent matrix. More...

virtual void	addKtToTang (double fact=1.0)
	Adds the product of `fact` times the element's tangent stiffness matrix to the tangent. More...

virtual void	addKiToTang (double fact=1.0)
	Adds the product of `fact` times the element's initial stiffness matrix to the tangent. More...

virtual void	addCtoTang (double fact=1.0)
	Adds the product of `fact` times the element's damping matrix to the tangent. More...

virtual void	addMtoTang (double fact=1.0)
	Adds the product of `fact` times the element's mass matrix to the tangent. More...

virtual void	zeroResidual (void)
	Zeros the residual vector. More...

virtual void	addRtoResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector and `fact`. More...

virtual void	addRIncInertiaToResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector with inertia forces included and `fact`. More...

virtual void	addM_Force (const Vector &accel, double fact=1.0)
	Adds to the residual the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

virtual void	addD_Force (const Vector &vel, double fact=1.0)
	Adds to the residual the product of elements current damping matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `vel` associated with the FE_Elements equation numbers. More...

virtual int	updateElement (void)

virtual Integrator *	getLastIntegrator (void)
	Method which returns the last integrator supplied in a formTangent() or a formResidual() invocation. More...

virtual const Vector &	getLastResponse (void)
	A method which invokes getLastResponse() on the Integrator object that was last passed as an argument to any of the routines. More...

Element *	getElement (void)
	Returns a pointer to the associated element.

virtual void	Print (std::ostream &, int=0)
	Print stuff.

virtual void	addResistingForceSensitivity (int gradNumber, double fact=1.0)

virtual void	addM_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual void	addD_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual int	commitSensitivity (int gradNum, int numGrads)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Friends
class	AnalysisModel
	to hold the C matrix

Additional Inherited Members
Protected Member Functions inherited from XC::MRMFreedom_FE
	MRMFreedom_FE (int tag, int numDOF_Group, int ndof, MRMFreedom_Constraint &, const double &alpha=1.0)
	Constructor.

int	determineConstrainedDOFsIDs (const int &)
	determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More...

int	determineRetainedDOFsIDs (const int &)
	determine determine the IDs for the retained dof's

int	determineRetainedNodesDofGrpPtr (Domain &, const int &)
	get the DOF_Group attached to the retained nodes.

Protected Member Functions inherited from XC::MPBase_FE
	MPBase_FE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0)
	Constructor.

int	determineConstrainedDOFsIDs (const MFreedom_ConstraintBase &, const int &)
	determine the IDs in myID for those DOFs marked as constrained DOFs, this is obtained from the DOF_Group associated with the constrained node. More...

DOF_Group *	determineConstrainedNodeDofGrpPtr (void)
	get the DOF_Group attached to the constrained node.

Protected Member Functions inherited from XC::MPSPBaseFE
	MPSPBaseFE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0)

Protected Member Functions inherited from XC::FE_Element
void	addLocalM_Force (const Vector &accel, double fact=1.0)

void	addLocalD_Force (const Vector &vel, double fact=1.0)

void	addLocalM_ForceSensitivity (int gradNumber, const Vector &accel, double fact=1.0)

void	addLocalD_ForceSensitivity (int gradNumber, const Vector &vel, double fact=1.0)

	FE_Element (int tag, Element *theElement)
	Construictor that take the corresponding model element. More...

	FE_Element (int tag, int numDOF_Group, int ndof)
	Constructor. More...

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes inherited from XC::MRMFreedom_FE
MRMFreedom_Constraint *	theMRMP

std::vector< Node * >	theRetainedNodes

Protected Attributes inherited from XC::MPBase_FE
Node *	theConstrainedNode

Protected Attributes inherited from XC::MPSPBaseFE
double	alpha

Matrix	tang

Vector	resid

Protected Attributes inherited from XC::FE_Element
ID	myDOF_Groups

ID	myID

Detailed Description

PenaltyMRMFreedom_FE is a subclass of FE_Element which handles MRMFreedom_Constraints using the penalty method.

Member Function Documentation

§ getM_Force()

const XC::Vector & XC::PenaltyMRMFreedom_FE::getM_Force	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector accel associated with the FE_Elements equation numbers.

If no element is associated with the FE_Element or the associated element is a Subdomain a warning message is printed and an error Vector is returned.

Reimplemented from XC::FE_Element.

§ getResidual()

const XC::Vector & XC::PenaltyMRMFreedom_FE::getResidual ( Integrator * theNewIntegrator )

virtual

Computes and returns the residual vector.

Causes the FE_Element to determine it's contribution to the residual vector and to return this vector. If the Element is a Subdomain it invokes computeResidual()} and {getResistingForce() on the Subdomain. Otherwise {formEleResidual(this)} is invoked on theIntegrator and the resuting residual vector is returned. Subclasses must provide their own implementation. If no Element is passed in the constructor, a warning message and an error vector is returned.

Reimplemented from XC::FE_Element.

§ getTangent()

const XC::Matrix & XC::PenaltyMRMFreedom_FE::getTangent ( Integrator * theNewIntegrator )

virtual

Computes and returns the tangent stiffness matrix.

Causes the FE_Element to determine it's contribution to the tangent matrix and to return this matrix. If the Element is a Subdomain it invokes computeTangent()} and {getTang() on the Subdomain. Otherwise {formEleTangent(this)} is invoked on {theIntegrator} and the new tangent matrix is returned. Subclasses must provide their own implementation. If no Element is passed in the constructor, a warning message is printed and an error Matrix of size 1X1 is returned.

Reimplemented from XC::FE_Element.

§ getTangForce()

const XC::Vector & XC::PenaltyMRMFreedom_FE::getTangForce	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

Returns the product of FE_Elements current tangent matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector disp associated with the FE_Elements equation numbers.

If the element associated with the FE_Element is a subdomain, the tangent is obtained by invoking {getTang()} on the subdomain, otherwise the tangent is formed by invoking {formEleTang(this)} on the integrator object last used in a getTangent()} or {getResidual(). If no element is associated with the FE_Element a zero vector is returned and an error message is printed. An error message is also printed if invoking addMatrixVector() on the force vector returns \(< 0\).

Reimplemented from XC::FE_Element.

The documentation for this class was generated from the following files:

src/solution/analysis/model/fe_ele/penalty/PenaltyMRMFreedom_FE.h
src/solution/analysis/model/fe_ele/penalty/PenaltyMRMFreedom_FE.cc
