PenaltySFreedom_FE is a subclass of SFreedom_FE which handles SFreedom_Constraints using the penalty method. More...

#include <PenaltySFreedom_FE.h>

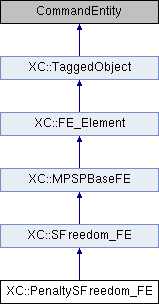

Inheritance diagram for XC::PenaltySFreedom_FE:

Public Member Functions
virtual int	setID (void)
	Method to set the corresponding index of the ID. More...

virtual const Matrix &	getTangent (Integrator *theIntegrator)
	Returns the tangent Matrix created in the constructor.

virtual const Vector &	getResidual (Integrator *theIntegrator)
	Sets the FE_Elements contribution to the residual to be \(\alpha * (U_s - U_t)\), where \(U_s\) is the specified value of the constraint and \(U_t\) the current trial displacement at the node corresponding to constrained degree-of-freedom. More...

virtual const Vector &	getTangForce (const Vector &x, double fact=1.0)
	Sets the FE_Elements contribution to the residual to be \(\alpha * (U\_s - disp\_t)\), where \(U\_s\) is the specified value of the constraint and \(disp\_t\) the value in `disp` corresponding to constrained degree-of-freedom. More...

virtual const Vector &	getK_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getC_Force (const Vector &x, double fact=1.0)

virtual const Vector &	getM_Force (const Vector &x, double fact=1.0)
	Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

Public Member Functions inherited from XC::FE_Element
virtual	~FE_Element (void)
	Destructor.

virtual const ID &	getDOFtags (void) const
	Returns the tags of the associated DOF_Groups. More...

virtual const ID &	getID (void) const
	Method to return the ID containing equation numbers. More...

void	setAnalysisModel (AnalysisModel &theModel)
	Sets the link with the analysis model. More...

virtual void	zeroTangent (void)
	Zeros the tangent matrix. More...

virtual void	addKtToTang (double fact=1.0)
	Adds the product of `fact` times the element's tangent stiffness matrix to the tangent. More...

virtual void	addKiToTang (double fact=1.0)
	Adds the product of `fact` times the element's initial stiffness matrix to the tangent. More...

virtual void	addCtoTang (double fact=1.0)
	Adds the product of `fact` times the element's damping matrix to the tangent. More...

virtual void	addMtoTang (double fact=1.0)
	Adds the product of `fact` times the element's mass matrix to the tangent. More...

virtual void	zeroResidual (void)
	Zeros the residual vector. More...

virtual void	addRtoResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector and `fact`. More...

virtual void	addRIncInertiaToResidual (double fact=1.0)
	Adds to the residual vector the product of the elements residual load vector with inertia forces included and `fact`. More...

virtual void	addM_Force (const Vector &accel, double fact=1.0)
	Adds to the residual the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `accel` associated with the FE_Elements equation numbers. More...

virtual void	addD_Force (const Vector &vel, double fact=1.0)
	Adds to the residual the product of elements current damping matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector `vel` associated with the FE_Elements equation numbers. More...

virtual int	updateElement (void)

virtual Integrator *	getLastIntegrator (void)
	Method which returns the last integrator supplied in a formTangent() or a formResidual() invocation. More...

virtual const Vector &	getLastResponse (void)
	A method which invokes getLastResponse() on the Integrator object that was last passed as an argument to any of the routines. More...

Element *	getElement (void)
	Returns a pointer to the associated element.

virtual void	Print (std::ostream &, int=0)
	Print stuff.

virtual void	addResistingForceSensitivity (int gradNumber, double fact=1.0)

virtual void	addM_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual void	addD_ForceSensitivity (int gradNumber, const Vector &vect, double fact=1.0)

virtual int	commitSensitivity (int gradNum, int numGrads)

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Friends
class	AnalysisModel

Additional Inherited Members
Protected Member Functions inherited from XC::SFreedom_FE
	SFreedom_FE (int tag, int sz, SFreedom_Constraint &theSP, const double &alpha=1.0)

Protected Member Functions inherited from XC::MPSPBaseFE
	MPSPBaseFE (int tag, int numDOF_Group, int ndof, const double &alpha=1.0)

Protected Member Functions inherited from XC::FE_Element
void	addLocalM_Force (const Vector &accel, double fact=1.0)

void	addLocalD_Force (const Vector &vel, double fact=1.0)

void	addLocalM_ForceSensitivity (int gradNumber, const Vector &accel, double fact=1.0)

void	addLocalD_ForceSensitivity (int gradNumber, const Vector &vel, double fact=1.0)

	FE_Element (int tag, Element *theElement)
	Construictor that take the corresponding model element. More...

	FE_Element (int tag, int numDOF_Group, int ndof)
	Constructor. More...

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes inherited from XC::SFreedom_FE
SFreedom_Constraint *	theSP

Node *	theNode

Protected Attributes inherited from XC::MPSPBaseFE
double	alpha

Matrix	tang

Vector	resid

Protected Attributes inherited from XC::FE_Element
ID	myDOF_Groups

ID	myID

Detailed Description

PenaltySFreedom_FE is a subclass of SFreedom_FE which handles SFreedom_Constraints using the penalty method.

PenaltySFreedom_FE is a subclass of FE_Element used to enforce a single point constraint. It does this by adding \(\alpha\) to the tangent and \(\alpha * (U\_s - U\_t)\) to the residual at the locations corresponding to the constrained degree-of-freedom specified by the SFreedom_Constraint, where \(U_s\) is the specified value of the constraint and \(U_t\) the current trial displacement at the node corresponding to the constraint.

Member Function Documentation

§ getM_Force()

const XC::Vector & XC::PenaltySFreedom_FE::getM_Force	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

Returns the product of elements current mass matrix and a Vector whose values are obtained by taking the product of {fact} and those elements of the Vector accel associated with the FE_Elements equation numbers.

If no element is associated with the FE_Element or the associated element is a Subdomain a warning message is printed and an error Vector is returned.

Reimplemented from XC::FE_Element.

§ getResidual()

const XC::Vector & XC::PenaltySFreedom_FE::getResidual ( Integrator * theNewIntegrator )

virtual

Sets the FE_Elements contribution to the residual to be \(\alpha * (U_s - U_t)\), where \(U_s\) is the specified value of the constraint and \(U_t\) the current trial displacement at the node corresponding to constrained degree-of-freedom.

Prints a warning message and sets this contribution to \(0\) if the specified constrained degree-of-freedom is invalid. Returns this residual Vector set.

Reimplemented from XC::FE_Element.

§ getTangForce()

const XC::Vector & XC::PenaltySFreedom_FE::getTangForce	(	const Vector &	disp,
		double	fact = `1.0`
	)

virtual

Sets the FE_Elements contribution to the residual to be \(\alpha * (U\_s - disp\_t)\), where \(U\_s\) is the specified value of the constraint and \(disp\_t\) the value in disp corresponding to constrained degree-of-freedom.

Prints a warning message and sets this contribution to \(0\) if the mapping, determined in setID(), for the the specified constrained degree-of-freedom lies outside disp.

Reimplemented from XC::FE_Element.

§ setID()

int XC::PenaltySFreedom_FE::setID ( void )

virtual

Method to set the corresponding index of the ID.

Causes the PenaltySFreedom_FE to determine the mapping between it's equation numbers and the degrees-of-freedom. From the Node object link, created! in the constructor, the DOF_group corresponding to the Node associated with the constraint is determined. From this {DOF_Group} object the mapping for the constrained degree of freedom is determined and the ID in the base class is set. Returns \(0\) if successful. Prints a warning message and returns a negative number if an error occurs: \(-2\) if the Node has no associated DOF_Group, \(-3\) if the constrained DOF specified is invalid for this Node and \(-4\) if the ID in the DOF_Group is too small for the Node.

Reimplemented from XC::FE_Element.

The documentation for this class was generated from the following files:

src/solution/analysis/model/fe_ele/penalty/PenaltySFreedom_FE.h
src/solution/analysis/model/fe_ele/penalty/PenaltySFreedom_FE.cpp
