#include <PressureMultiYieldBase.h>

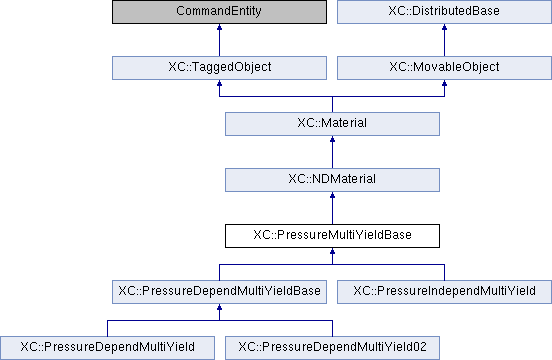

Inheritance diagram for XC::PressureMultiYieldBase:
Public Member Functions | |
| PressureMultiYieldBase (int tag, int classTag, int nd, double rho, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi=0.1, int numberOfYieldSurf=20) | |
| PressureMultiYieldBase (int tag, int classTag) | |
| PressureMultiYieldBase (const PressureMultiYieldBase &) | |
| PressureMultiYieldBase & | operator= (const PressureMultiYieldBase &) |
 Public Member Functions inherited from XC::NDMaterial | |
| NDMaterial () | |
| Constructor. | |
| NDMaterial (int tag, int classTag) | |
| Constructor. More... | |
| virtual double | getRho (void) const |
| virtual double | getE (void) |
| virtual double | getnu (void) |
| virtual double | getpsi (void) |
| virtual int | setTrialStrain (const Vector &v) |
Sets the value of the trial strain vector, that value used by {getStress()} and getTangent(), to be strain. More... | |
| virtual int | setTrialStrain (const Vector &v, const Vector &r) |
| Sets trial strain value. | |
| virtual int | setTrialStrainIncr (const Vector &v) |
| Set trial strain increment. | |
| virtual int | setTrialStrainIncr (const Vector &v, const Vector &r) |
| Set trial strain increment. | |
| virtual const Matrix & | getTangent (void) const |
| Return the tangent stiffness matrix at the current trial strain. More... | |
| virtual const Matrix & | getInitialTangent (void) const |
| virtual const Vector & | getStress (void) const |
| Returns the material stress vector at the current trial strain. | |
| virtual const Vector & | getStrain (void) const |
| Returns strain. | |
| const Vector & | getGeneralizedStress (void) const |
| const Vector & | getGeneralizedStrain (void) const |
| virtual void | setInitialGeneralizedStrain (const Vector &) |
| Asigna el initial strain value. | |
| const Vector & | getInitialGeneralizedStrain (void) const |
| Return the initial strain. | |
| virtual const Vector & | getCommittedStress (void) |
| Returns commited stresses. | |
| virtual const Vector & | getCommittedStrain (void) |
| Returns commited strains. | |
| virtual int | setTrialStrain (const Tensor &v) |
| Set trial strain value. | |
| virtual int | setTrialStrain (const Tensor &v, const Tensor &r) |
| virtual int | setTrialStrainIncr (const Tensor &v) |
| Set trial strain increment. | |
| virtual int | setTrialStrainIncr (const Tensor &v, const Tensor &r) |
| virtual const Tensor & | getTangentTensor (void) const |
| virtual const stresstensor & | getStressTensor (void) const |
| virtual const straintensor & | getStrainTensor (void) const |
| virtual const straintensor & | getPlasticStrainTensor (void) const |
| virtual int | setTrialF (const straintensor &f) |
| virtual int | setTrialFIncr (const straintensor &df) |
| virtual int | setTrialC (const straintensor &c) |
| virtual int | setTrialCIncr (const straintensor &dc) |
| virtual const stresstensor | getPK1StressTensor (void) |
| virtual const stresstensor | getCauchyStressTensor (void) |
| virtual const straintensor & | getF (void) const |
| virtual const straintensor & | getC (void) const |
| virtual const straintensor | getFp (void) |
| virtual NDMaterial * | getCopy (void) const =0 |
| Virtual constructor. | |
| virtual NDMaterial * | getCopy (const std::string &) const =0 |
| virtual const std::string & | getType (void) const =0 |
| virtual int | getOrder (void) const =0 |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &matInformation) |
| virtual int | getResponse (int responseID, Information &matInformation) |
| Returns material response. | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual const Vector & | getStressSensitivity (int gradNumber, bool conditional) |
| virtual const Vector & | getStrainSensitivity (int gradNumber) |
| virtual const Matrix & | getTangentSensitivity (int gradNumber) |
| virtual const Matrix & | getDampTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| virtual int | commitState (void)=0 |
| virtual int | revertToLastCommit (void)=0 |
| virtual int | revertToStart (void)=0 |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| virtual void | Print (std::ostream &, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | sendSelf (CommParameters &cp)=0 |
| Send the object. More... | |
| virtual int | recvSelf (const CommParameters &cp)=0 |
| Receive the object. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| void | setup (int nd, double r, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi, int numberOfYieldSurf) |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::NDMaterial | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Protected Attributes | |
| int | matN |
| int | e2p |
| std::vector< MultiYieldSurface > | theSurfaces |
| std::vector< MultiYieldSurface > | committedSurfaces |
| int | activeSurfaceNum |
| int | committedActiveSurf |
| T2Vector | currentStress |
| T2Vector | trialStress |
| T2Vector | currentStrain |
| T2Vector | strainRate |
Static Protected Attributes | |
| static int | matCount =0 |
| static std::vector< int > | ndmx |
| static std::vector< int > | loadStagex |
| static std::vector< double > | rhox |
| static std::vector< double > | frictionAnglex |
| static std::vector< double > | peakShearStrainx |
| static std::vector< double > | refPressurex |
| static std::vector< double > | cohesionx |
| static std::vector< double > | pressDependCoeffx |
| static std::vector< int > | numOfSurfacesx |
| static std::vector< double > | residualPressx |
| static std::vector< double > | stressRatioPTx |
| static Matrix | theTangent |
| static T2Vector | subStrainRate |
Detailed Description
??.
The documentation for this class was generated from the following files:
- src/material/nD/soil/PressureMultiYieldBase.h
- src/material/nD/soil/PressureMultiYieldBase.cc
