Imposes a rigid body motion to the nodes on included in the diaphragm . More...

#include <RigidDiaphragm.h>

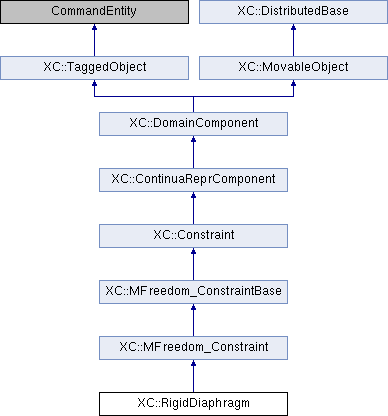

Inheritance diagram for XC::RigidDiaphragm:

Public Member Functions
	RigidDiaphragm (Domain &theDomain, int nodeR, ID &nodeC, int perpDirnToPlaneConstrained, int startMPtag)
	Constructor. More...

virtual	~RigidDiaphragm ()
	Destructor.

Public Member Functions inherited from XC::MFreedom_Constraint
	MFreedom_Constraint (int tag, int classTag)
	! More...

	MFreedom_Constraint (int tag)
	Constructor. More...

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, const ID &constrainedDOF, const ID &retainedDOF)
	Constructor to be called from subclasses. More...

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, const ID &constrainedDOF, const ID &retainedDOF, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_Constraint (int tag, int nodeRetain, int nodeConstr, Matrix &constrnt, ID &constrainedDOF, ID &retainedDOF)
	Constructor. More...

virtual const int &	getNodeRetained (void) const
	Returns the tag of the retained (or master) node.

virtual int &	getNodeRetained (void)
	Returns the tag of the retained (or master) node.

virtual size_t	getNumRetainedNodes (void) const
	Returns the number of retained nodes.

std::vector< XC::Node * >	getPointersToRetainedNodes (void) const
	Returns a vector with the pointers to the retained nodes.

bool	affectsNode (int) const
	Returns true ifafecta to the node cuyo tag being passed as parameter.

bool	affectsNodeAndDOF (int, int) const
	Returns true if the constraint affects the node and DOF arguments.

virtual const ID &	getRetainedDOFs (void) const
	Returns the identifiers of the retained degrees of freedom.

virtual int	applyConstraint (double pseudoTime)
	Applies the constraint at the pseudo-time being passed as parameter. More...

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

int	getVtkCellType (void) const
	Interfaz con VTK.

int	addResistingForceToNodalReaction (bool inclInertia)
	Add to nodes the actions due to this constraint. More...

virtual void	Print (std::ostream &s, int flag=0)
	Printing.

Public Member Functions inherited from XC::MFreedom_ConstraintBase
	MFreedom_ConstraintBase (int tag, int classTag)
	Constructor. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, const ID &, int classTag)
	Constructor to be called from subclasses. More...

	MFreedom_ConstraintBase (int tag, int nodeConstr, const Matrix &, const ID &, int classTag)
	Constructor. More...

virtual const int &	getNodeConstrained (void) const
	Return the identifier of the constrained node.

virtual int &	getNodeConstrained (void)
	Return the identifier of the constrained node.

virtual const ID &	getConstrainedDOFs (void) const
	Returns the identifiers of the constrained degrees of fredom.

virtual const Matrix &	getConstraint (void) const
	Returns the constraint matrix. More...

bool	isTimeVarying (void) const
	Returns true if the constraint varies with time.

bool	affectsNode (int) const
	Returns true if the constraints affects the node identified by the tag being passed as parameter. More...

bool	affectsNodeAndDOF (int theNode, int theDOF) const
	Returns true if the constraint affects the node and DOF arguments.

int	addResistingForceToNodalReaction (bool inclInertia)
	Add reactions to nodes.

Public Member Functions inherited from XC::Constraint
	Constraint (int classTag)
	Default constructor; receives the tag of the class as a paramenter. More...

	Constraint (int spTag, int nodeTag, int classTag)
	Constructor. More...

	~Constraint (void)
	Destructor.

void	setNodeTag (const int &nt)
	Sets the identifier of the node that will be constrained. More...

virtual int	getNodeTag (void) const
	Returns the identifier of the constrained node.

virtual const Node *	getNode (void) const
	Returns a pointer to the constrained node.

virtual int	getNodeIdx (void) const
	Returns an index for the node (used for VTK arrays).

void	setDomain (Domain *)
	Sets the domain for the constraint. More...

Public Member Functions inherited from XC::ContinuaReprComponent
	ContinuaReprComponent (int classTag)

	ContinuaReprComponent (int tag, int classTag)

virtual const bool	isDead (void) const

virtual const bool	isAlive (void) const

virtual void	kill (void)

virtual void	alive (void)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.

void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Additional Inherited Members
Protected Member Functions inherited from XC::MFreedom_Constraint
void	set_retained_dofs (const ID &)
	Sets the retained degrees of freedom.

void	set_constrained_retained_dofs (const ID &constrainedDOF, const ID &retainedDOF)
	Sets the retained and constrained degrees of freedom.

int	sendData (CommParameters &cp)
	Sends data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives data through the channel being passed as parameter.

Protected Member Functions inherited from XC::MFreedom_ConstraintBase
void	set_constraint (const Matrix &c)
	Set the constraint matrix.

void	set_constrained_dofs (const ID &)
	Set the constrained degrees of freedom. More...

int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Constraint
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter. More...

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter. More...

Protected Member Functions inherited from XC::ContinuaReprComponent
int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes inherited from XC::MFreedom_Constraint
int	retainedNodeTag
	Tag of the retained node.

ID	retainDOF
	ID of retained DOF at retained node.

Protected Attributes inherited from XC::MFreedom_ConstraintBase
Matrix	constraintMatrix
	Constraint matrix.

ID	constrDOF
	ID of constrained DOF at constrained node.

Protected Attributes inherited from XC::Constraint
int	constrNodeTag
	constrained node tag

Detailed Description

Imposes a rigid body motion to the nodes on included in the diaphragm .

Constructor & Destructor Documentation

§ RigidDiaphragm()

XC::RigidDiaphragm::RigidDiaphragm	(	Domain &	theDomain,
		int	nR,
		ID &	nC,
		int	perpPlaneConstrained,
		int	startMPtag
	)

Constructor.

Parameters

theDomain	domain where the constraint is defined.
nR	identifier of the retained node.
nC	identifiers of the constrained nodes.
perpPlaneConstrained	direction of perpendicular to constained plane: 0, 1 or 3.
startMPtag	tag for the first multi-freedom constraint (one constraint for each node).

The documentation for this class was generated from the following files:

src/domain/constraints/RigidDiaphragm.h
src/domain/constraints/RigidDiaphragm.cpp
