{staticFormTaylor} {equation} More...

#include <StaticIntegrator.h>

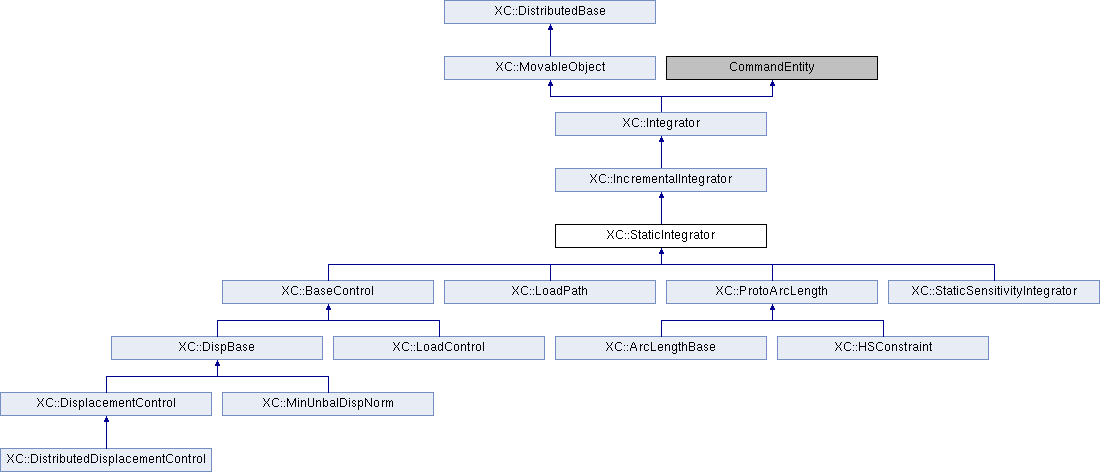

Inheritance diagram for XC::StaticIntegrator:

Public Member Functions
virtual int	formEleTangent (FE_Element *theEle)
	Asks the element being passed as parameter to build its tangent stiffness matrix. More...

virtual int	formEleResidual (FE_Element *theEle)
	To form the residual vector of the FE_Element. More...

virtual int	formNodTangent (DOF_Group *theDof)
	This should never be called in a static analysis. More...

virtual int	formNodUnbalance (DOF_Group *theDof)
	Form the unbalance vector for the DOF_Group. More...

virtual int	newStep (void)=0

Public Member Functions inherited from XC::IncrementalIntegrator
virtual int	formTangent (int statusFlag=CURRENT_TANGENT)
	Builds tangent stiffness matrix. More...

virtual int	formUnbalance (void)
	Builds the unbalanced load vector (right hand side of the equation). More...

virtual int	newStep (double deltaT)
	Invoked to inform the integrator that the transient analysis is proceeding to the next time step. More...

virtual int	update (const Vector &deltaU)=0
	When invoked causes the integrator object to update the DOF_Group responses with the appropriate values based on the computed solution to the system of equations object. More...

virtual int	commit (void)
	Invoked by the SolutionAlgorithm to inform the Integrator that current state of domain is on solution path. More...

virtual int	revertToLastStep (void)

virtual int	initialize (void)

virtual int	revertToStart ()

virtual int	getLastResponse (Vector &result, const ID &id)
	Returns the response on the DOFs being passed as parameter. More...

Public Member Functions inherited from XC::Integrator
virtual int	domainChanged (void)
	Make required changes when a change in the domain occurs. More...

virtual void	Print (std::ostream &s, int flag=0)
	The Integrator is to send information to the stream based on the integer `flag`. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
	StaticIntegrator (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::IncrementalIntegrator
LinearSOE *	getLinearSOEPtr (void)
	Returns a pointer to the linear system of equations. More...

const LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations. More...

virtual int	formNodalUnbalance (void)
	Builds the nodal unbalanced load vector. More...

	IncrementalIntegrator (AnalysisAggregation *, int classTag)
	Constructor. More...

virtual int	formElementResidual (void)
	Builds the unbalanced load vector of the elements. More...

Protected Member Functions inherited from XC::Integrator
AnalysisAggregation *	getAnalysisAggregation (void)
	Returns a pointer to the solution method that owns this object.

const AnalysisAggregation *	getAnalysisAggregation (void) const
	Returns a const pointer to the solution method that owns this object.

void	applyLoadModel (double newTime)

int	updateModel (void)

int	updateModel (double newTime, double dT)

int	commitModel (void)

double	getCurrentModelTime (void)

void	setCurrentModelTime (const double &t)

void	setRayleighDampingFactors (const RayleighDampingFactors &rF)

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model. More...

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model. More...

	Integrator (AnalysisAggregation *, int classTag)
	Constructor. More...

virtual Integrator *	getCopy (void) const =0

Additional Inherited Members
Protected Attributes inherited from XC::IncrementalIntegrator
int	statusFlag

Detailed Description

{staticFormTaylor} {equation}

which a system of of \(N\) equations with ( \(N+1\)) unknowns. Two solve this, an additional equation is required, the constraint equation. The constraint equation used depends on the static integration scheme, of which there are a number, for example load control, arc length, and displacement control.

Constructor & Destructor Documentation

§ StaticIntegrator()

XC::StaticIntegrator::StaticIntegrator	(	AnalysisAggregation *	owr,
		int	clasTag
	)

protected

Constructor.

Parameters

owr	set of objects used to perform the analysis.

Member Function Documentation

§ formEleResidual()

int XC::StaticIntegrator::formEleResidual ( FE_Element * theEle )

virtual

To form the residual vector of the FE_Element.

To form the residual vector of the FE_Element, theEle, is instructed to zero the vector and then add it's \(R\) vector to the residual, i.e. it performs the following: {tabbing} while \= + while \= while \= theEle- \(>\)zeroResidual() theEle- \(>\)addRtoResid() {tabbing} The method returns \(0\).

Implements XC::IncrementalIntegrator.

Reimplemented in XC::StaticSensitivityIntegrator.

§ formEleTangent()

int XC::StaticIntegrator::formEleTangent ( FE_Element * theEle )

virtual

Asks the element being passed as parameter to build its tangent stiffness matrix.

To form the tangent matrix of the FE_Element, theEle, is instructed to zero this matrix and then add it's \(K\) matrix to the tangent, i.e. it performs the following: {tabbing} while \= + while \= while \= theEle- \(>\)zeroTang() theEle- \(>\)addKtoTang() {tabbing} The method returns \(0\).

Implements XC::IncrementalIntegrator.

§ formNodTangent()

int XC::StaticIntegrator::formNodTangent ( DOF_Group * theDof )

virtual

This should never be called in a static analysis.

An error message is printed if it is. Returns -1.

Implements XC::IncrementalIntegrator.

§ formNodUnbalance()

int XC::StaticIntegrator::formNodUnbalance ( DOF_Group * theDof )

virtual

Form the unbalance vector for the DOF_Group.

To form the unbalance vector of the DOF_Group, theDof, is instructed to zero the vector and then add it's \(P\) vector to the unbalance, i.e. it performs the following: {tabbing} while \= + while \= while \= theDof- \(>\)zeroUnbalance() theDof- \(>\)addPtoUnbal() {tabbing} The method returns \(0\).

Implements XC::IncrementalIntegrator.

The documentation for this class was generated from the following files:

src/solution/analysis/integrator/StaticIntegrator.h
src/solution/analysis/integrator/StaticIntegrator.cpp
