Linear system of equations. More...

#include <LinearSOE.h>

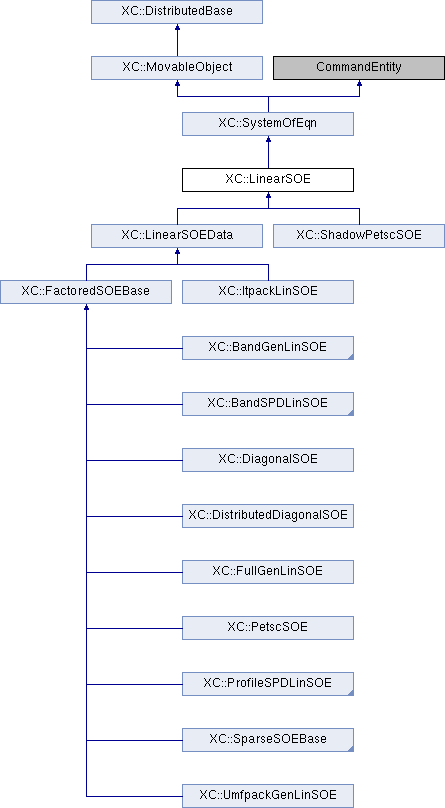

Inheritance diagram for XC::LinearSOE:

Public Member Functions
virtual	~LinearSOE (void)
	Destructor.

virtual int	solve (void)
	Computes the solution of the system of equations. More...

virtual int	setSize (Graph &theGraph)=0
	Determines and sets the size of the system. More...

virtual int	getNumEqn (void) const =0
	Returns the number of equations in the system.

virtual int	addA (const Matrix &M, const ID &loc, double fact=1.0)=0
	The LinearSOE object assembles `fact` times the Matrix `M` into the matrix $A$. More...

virtual int	addB (const Vector &V, const ID &loc, const double &fact=1.0)=0
	The LinearSOE object assembles `fact` times the Vector `V` into the vector $b$. More...

virtual int	setB (const Vector &V, const double &fact=1.0)=0
	The LinearSOE object sets the vector `b` to be `fact` times the vector `V`. More...

virtual void	zeroA (void)=0
	To zero the matrix $A$, i.e. set all the components of $A$ to $0$.

virtual void	zeroB (void)=0
	To zero the vector $b$, i.e. set all the components of $b$ to $0$.

virtual const Vector &	getX (void) const =0
	Return a const reference to the vector $x$.

virtual const Vector &	getB (void) const =0
	Return a const reference to the vector $b$.

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

virtual double	normRHS (void) const =0
	Return the 2-norm of the vector $x$.

virtual void	setX (int loc, double value)=0
	The LinearSOE object is responsible for setting $x(loc) = value$. More...

virtual void	setX (const Vector &X)=0
	Sets the vector $x$.

LinearSOESolver *	getSolver (void)
	Returns a pointer to the solver.

LinearSOESolver &	newSolver (const std::string &)

Public Member Functions inherited from XC::SystemOfEqn
int	checkSize (Graph &theGraph) const
	Check number of DOFs in the graph.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual bool	setSolver (LinearSOESolver *)
	Sets the solver for the system of equations. More...

int	setSolverSize (void)
	invoke setSize() on the Solver

	LinearSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::SystemOfEqn
virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a const pointer to the analysis model.

	SystemOfEqn (AnalysisAggregation *, int classTag)
	Constructor. More...

virtual SystemOfEqn *	getCopy (void) const =0
	Virtual constructor.

Friends
class	FEM_ObjectBroker

Detailed Description

Linear system of equations.

Abstract base class and thus no objects of it's type can be instantiated. It has pure virtual functions which must be implemented in it's derived classes. LinearSystemOfEqn is an abstraction of the linear system of equation given by : [A]{X} = {B} - {C}, where A is a matrix and B,C and X are vectors. To solve the equation means given A, B and C to find the unknown X such that the equation is satisfied. LinearSOE object is responsible for storing these equations and for providing methods at the interface to set up and obtain the equations. Each LinearSOE object will be associated with a LinearSOESolver object. It is the LinearSOESolver objects that is responsible for solving the linear system of equations.

Constructor & Destructor Documentation

§ LinearSOE()

XC::LinearSOE::LinearSOE	(	AnalysisAggregation *	owr,
		int	classTag
	)

protected

Constructor.

Parameters

owr	analysis aggregation that owns this object.
classTag	identifier of the class.

Member Function Documentation

§ addA()

virtual int XC::LinearSOE::addA	(	const Matrix &	M,
		const ID &	loc,
		double	fact = `1.0`
	)

pure virtual

The LinearSOE object assembles fact times the Matrix M into the matrix $A$.

The Matrix is assembled into $A$ at the locations given by the ID object loc, i.e. $a_{loc(i),loc(j)}+= M(i,j)$. Numbering in $A$ starts at $(0,0)$, i.e. C style. If allocation specified is outside the range, i.e. $(-1,-1)$ the corresponding entry in M is not added to $A$. To return $0$ if sucessfull, a negative number if not.

Implemented in XC::SparseGenColLinSOE, XC::ProfileSPDLinSOE, XC::BandSPDLinSOE, XC::BandGenLinSOE, XC::FullGenLinSOE, XC::PetscSOE, XC::ShadowPetscSOE, XC::DistributedSparseGenRowLinSOE, XC::ItpackLinSOE, XC::UmfpackGenLinSOE, XC::DistributedDiagonalSOE, XC::DiagonalSOE, XC::SparseGenRowLinSOE, XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, XC::DistributedProfileSPDLinSOE, and XC::SymSparseLinSOE.

§ addB()

virtual int XC::LinearSOE::addB	(	const Vector &	V,
		const ID &	loc,
		const double &	fact = `1.0`
	)

pure virtual

The LinearSOE object assembles fact times the Vector V into the vector $b$.

The Vector is assembled into $b$ at the locations given by the ID object {loc}, i.e. $b_{loc(i)} += V(i)$. If a location specified is outside the range, e.g. $-1$, the corresponding entry in {V} is not added to $b$. To return $0$ if sucessfull, a negative number if not.

Implemented in XC::ShadowPetscSOE, XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, XC::DistributedProfileSPDLinSOE, XC::SymSparseLinSOE, and XC::LinearSOEData.

§ setB()

virtual int XC::LinearSOE::setB	(	const Vector &	V,
		const double &	fact = `1.0`
	)

pure virtual

The LinearSOE object sets the vector b to be fact times the vector V.

To return $0$ if sucessfull, a negative number if not.

Implemented in XC::ShadowPetscSOE, XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, XC::DistributedProfileSPDLinSOE, and XC::LinearSOEData.

§ setSize()

virtual int XC::LinearSOE::setSize ( Graph & theGraph )

pure virtual

Determines and sets the size of the system.

Invoked to allow the LinearSOE object to determine the size and sparsity of the matrix $A$ and vectors $x$ and $b$. This information can be deduced from the number of vertices and the connectivity between the vertices in the Graph object theGraph. To return $0$ if sucessfull, a negative number if not.

Implemented in XC::SparseGenColLinSOE, XC::ProfileSPDLinSOE, XC::BandSPDLinSOE, XC::BandGenLinSOE, XC::FullGenLinSOE, XC::PetscSOE, XC::DistributedSparseGenRowLinSOE, XC::ShadowPetscSOE, XC::ItpackLinSOE, XC::UmfpackGenLinSOE, XC::DistributedDiagonalSOE, XC::DistributedBandSPDLinSOE, XC::DiagonalSOE, XC::DistributedProfileSPDLinSOE, XC::SparseGenRowLinSOE, XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, and XC::SymSparseLinSOE.

§ setSolver()

bool XC::LinearSOE::setSolver ( LinearSOESolver * newSolver )

protectedvirtual

Sets the solver for the system of equations.

This is invoked to set the currently associated LinearSOESolver object to be newSolver. Each subclass will provide it's own variation of setSolver() method (needed so subclasses can verify type of Solver object passed). the subclasses in their variation of the setSolver() method (unless they wish to implement their own solve() method) invoke this method. Returns $0$.

Reimplemented in XC::SparseGenColLinSOE, XC::ProfileSPDLinSOE, XC::BandSPDLinSOE, XC::BandGenLinSOE, XC::FullGenLinSOE, XC::DistributedSparseGenRowLinSOE, XC::ItpackLinSOE, XC::UmfpackGenLinSOE, XC::SparseGenRowLinSOE, XC::DiagonalSOE, and XC::SymSparseLinSOE.

§ setX()

virtual void XC::LinearSOE::setX	(	int	loc,
		double	value
	)

pure virtual

The LinearSOE object is responsible for setting $x(loc) = value$.

This is needed in domain decomposition methods and could be useful in iterative solution strategies when an initial approximation is known.

Implemented in XC::ShadowPetscSOE, and XC::LinearSOEData.

§ solve()

int XC::LinearSOE::solve ( void )

virtual

Computes the solution of the system of equations.

Causes the SystemOfEqn object to invoke solve() on the currently associated solver object. Returns a $0$ if successful, negative number if not; the actual value depending on the LinearSOESolver. To solve a linear system of equations means to find $x$ such that the equation $Ax=b$ is satisfied.

Implements XC::SystemOfEqn.

Reimplemented in XC::ShadowPetscSOE, XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, and XC::DistributedProfileSPDLinSOE.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/LinearSOE.h
src/solution/system_of_eqn/linearSOE/LinearSOE.cpp
