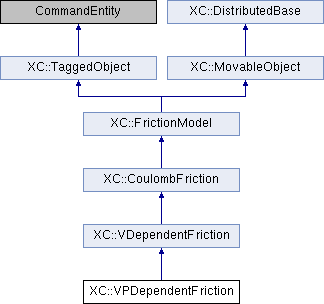

Inheritance diagram for XC::VPDependentFriction:
Public Member Functions | |
| VPDependentFriction (int tag, double muSlow, double muFast0, double A, double deltaMu, double alpha, double transRate) | |
| int | setTrial (double normalForce, double velocity=0.0) |
| double | getDFFrcDNFrc (void) |
| FrictionModel * | getCopy (void) const |
| Virtual constructor. | |
| int | sendSelf (CommParameters &) |
| Send the object. More... | |
| int | recvSelf (const CommParameters &) |
| Receive the object. More... | |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
 Public Member Functions inherited from XC::VDependentFriction | |
| VDependentFriction (int classTag=FRN_TAG_VDependentFriction) | |
| VDependentFriction (int tag, double muSlow, double muFast, double transRate, int classTag=FRN_TAG_VDependentFriction) | |
| int | revertToStart (void) |
| Public Member Functions inherited from XC::CoulombFriction | |
| CoulombFriction (int classTag=FRN_TAG_CoulombFriction) | |
| CoulombFriction (int tag, double mu, int classTag=FRN_TAG_CoulombFriction) | |
| double | getFrictionForce (void) |
| double | getFrictionCoeff (void) |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| Public Member Functions inherited from XC::FrictionModel | |
| FrictionModel (int tag, int classTag) | |
| virtual double | getNormalForce (void) |
| virtual double | getVelocity (void) |
| virtual Response * | setResponse (const std::vector< std::string > &, Information &) |
| virtual int | getResponse (int responseID, Information &info) |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send data through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive data through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::VDependentFriction | |
| int | sendData (CommParameters &) |
| Send data through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive data through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::CoulombFriction | |
| int | sendData (CommParameters &) |
| Send data through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive data through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::FrictionModel | |
| int | sendData (CommParameters &) |
| Send data through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive data through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from XC::VDependentFriction | |
| double | muSlow |
| coefficient of friction at low velocity | |
| double | muFast |
| coefficient of friction at high velocity | |
| double | transRate |
| transition rate from low to high velocity | |
| Protected Attributes inherited from XC::CoulombFriction | |
| double | mu |
| coefficient of friction | |
| Protected Attributes inherited from XC::FrictionModel | |
| double | trialN |
| double | trialVel |
Member Function Documentation
§ recvSelf()
|
virtual |
Receive the object.
Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.
Reimplemented from XC::VDependentFriction.
§ sendSelf()
|
virtual |
Send the object.
Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.
Reimplemented from XC::VDependentFriction.
The documentation for this class was generated from the following files:
- src/domain/mesh/element/special/frictionBearing/frictionModel/VPDependentFriction.h
- src/domain/mesh/element/special/frictionBearing/frictionModel/VPDependentFriction.cpp
