A ZeroLengthElement is defined by two nodes with the same coordinate. More...

#include <ZeroLengthMaterials.h>

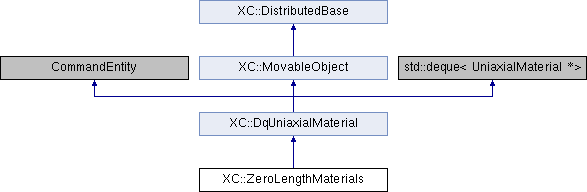

Inheritance diagram for XC::ZeroLengthMaterials:

Public Member Functions
	ZeroLengthMaterials (ZeroLength *owner, UniaxialMaterial &theMaterial, int direction)
	Constructor:

	ZeroLengthMaterials (ZeroLength owner, UniaxialMaterial theMaterial, int direction)
	Constructor:

	ZeroLengthMaterials (ZeroLength *owner, const DqUniaxialMaterial &theMaterial, const ID &direction)
	Construct container with multiple unidirectional materials.

	ZeroLengthMaterials (ZeroLength *owner=nullptr)

void	push_back (const int &dir, const UniaxialMaterial *)

void	push_front (const int &dir, const UniaxialMaterial *)

const int &	getDir (const size_t i) const

int &	getDir (const size_t i)

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

void	Print (std::ostream &s, int flag=0)

void	clear (void)
	Free memory.

Public Member Functions inherited from XC::DqUniaxialMaterial
	DqUniaxialMaterial (CommandEntity *owner=nullptr, const size_t &sz=0)
	Constructor.

	DqUniaxialMaterial (CommandEntity *owner, const UniaxialMaterial &)
	Constructor.

	DqUniaxialMaterial (CommandEntity *owner, const UniaxialMaterial &um, const size_t &sz)
	Constructor.

	DqUniaxialMaterial (CommandEntity owner, const UniaxialMaterial um, const size_t &sz)
	Constructor.

	DqUniaxialMaterial (const DqUniaxialMaterial &)
	Copy constructor.

	DqUniaxialMaterial (const DqUniaxialMaterial &, SectionForceDeformation *s)
	Copy constructor.

DqUniaxialMaterial &	operator= (const DqUniaxialMaterial &)
	Assignment operator.

	~DqUniaxialMaterial (void)
	Destructor.

void	push_back (const UniaxialMaterial , SectionForceDeformation s=nullptr)

void	push_front (const UniaxialMaterial , SectionForceDeformation s=nullptr)

iterator	begin (void)

const_iterator	begin (void) const

iterator	end (void)

const_iterator	end (void) const

void	clear (void)
	Clears the container.

void	clearAll (void)
	Clears the container and deletes object properties.

size_type	size (void) const

void	resize (const size_t &n)

int	commitState (void)
	Commit materials state (normally when convergence is achieved).

int	revertToLastCommit (void)
	Returns to the last commited state.

int	revertToStart (void)
	Returns to the initial state.

int	zeroInitialStrain (void)
	Zeroes initial strains.

int	setInitialStrain (const Vector &def, const size_t &offset)
	Sets initial strain.

int	setTrialStrain (const Vector &def, const size_t &offset)
	Sets trial strain.

int	setTrialStrain (const double &strain, const double &strainRate)
	Asigna la trial strain (se emplea en ParallelMaterial).

void	getStrain (Vector &, const size_t &offset) const
	Returns strains vector.

void	getInitialStrain (Vector &, const size_t &offset) const
	Returns the initial strains.

void	getTangent (Matrix &, const size_t &offset) const
	Return the tangent stiffness matrix.

void	getInitialTangent (Matrix &, const size_t &offset) const
	Return the initial tangent stiffness matrix.

void	getFlexibility (Matrix &f, const size_t &offset) const
	Return the flexibility matrix.

void	getInitialFlexibility (Matrix &f, const size_t &offset) const
	Return the initial flexibility matrix.

void	getStress (Vector &, const size_t &offset) const
	Returns the tensiones.

reference	operator[] (const size_t i)

const_reference	operator[] (const size_t i) const

void	Print (std::ostream &s, int flag=0) const
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
MaterialHandler *	get_material_handler (void)
	Return the material handler.

Protected Member Functions inherited from XC::DqUniaxialMaterial
void	copy_list (const DqUniaxialMaterial &, SectionForceDeformation *s=nullptr)
	Copy the list being passed as parameter.

int	sendData (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object through the channel being passed as parameter.

Additional Inherited Members
Public Types inherited from XC::DqUniaxialMaterial
typedef std::deque< UniaxialMaterial * >	lst_ptr

typedef lst_ptr::const_iterator	const_iterator

typedef lst_ptr::iterator	iterator

typedef lst_ptr::reference	reference

typedef lst_ptr::const_reference	const_reference

typedef lst_ptr::size_type	size_type

Detailed Description

A ZeroLengthElement is defined by two nodes with the same coordinate.

One or more material objects may be associated with the nodes to provide a force displacement relationship. ZeroLengthMaterials will work with 1d, 2d, or 3d material models.

The force-deformation relationship for the element is given by a pointer theMaterial to a { UniaxialMaterial} model acting in local direction. The local direction is 1, 2, 3, for translation in the local x, y, z axes or 4, 5, 6 for rotation about the local x, y, z axes.

The documentation for this class was generated from the following files:

src/material/uniaxial/ZeroLengthMaterials.h
src/material/uniaxial/ZeroLengthMaterials.cc
