XC::SectionForceDeformation Class Reference

Base class for force deformation section models. More...

#include <SectionForceDeformation.h>

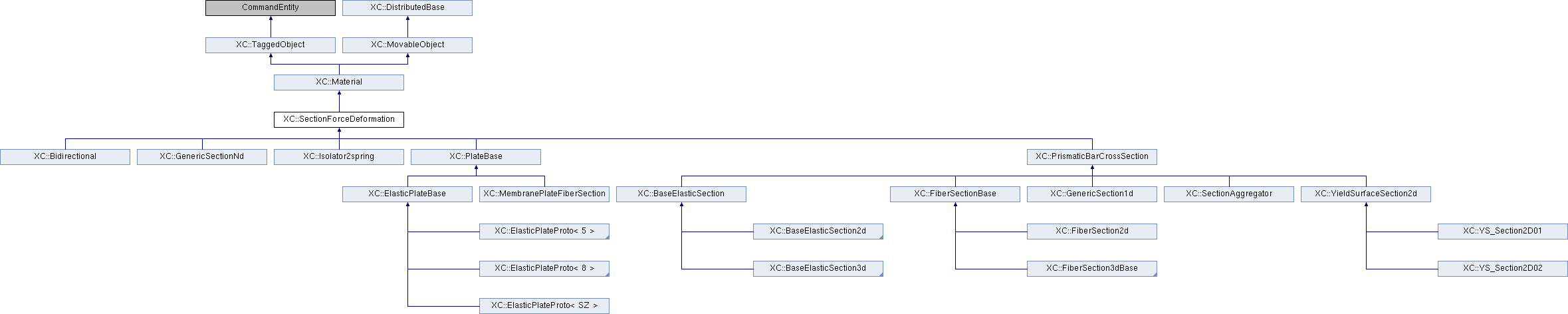

Inheritance diagram for XC::SectionForceDeformation:

Public Member Functions
	SectionForceDeformation (int tag, int classTag, MaterialHandler *mat_ldr=nullptr)
	Constructor. More...
	SectionForceDeformation (const SectionForceDeformation &)
	Copy constructor.
SectionForceDeformation &	operator= (const SectionForceDeformation &)
	Assignment operator.
virtual	~SectionForceDeformation (void)
	Destructor.
MaterialHandler *	getMaterialHandler (void)
virtual void	zeroInitialSectionDeformation (void)=0
virtual int	setInitialSectionDeformation (const Vector &)=0
virtual int	addInitialSectionDeformation (const Vector &)
	Adds to the generalized strains vector inicial el being passed as parameter. More...
void	setInitialGeneralizedStrain (const Vector &iS)
const Vector &	getInitialGeneralizedStrain (void) const
virtual int	setTrialSectionDeformation (const Vector &)=0
	Set the value of the trial section deformation vector, \(esec\) to be {def}. More...
virtual const Vector &	getInitialSectionDeformation (void) const =0
virtual const Vector &	getSectionDeformation (void) const =0
	Return the trial section deformation vector, \(esec\).
double	getSectionDeformation (const int &) const
	Returns 'defID' component of the generalized strain vector.
double	getSectionDeformationByName (const std::string &) const
	Returns section's trial deformation component by its name.
virtual double	getStrain (const double &y, const double &z=0) const =0
virtual const Vector &	getStressResultant (void) const =0
	Return the section resisting forces, \(ssec\), at the current trial state. More...
double	getStressResultant (const int &) const
	Returns 'defID' component of the generalized stress vector.
double	getStressResultantByName (const std::string &) const
	Returns the esfuerzos de la placa.
virtual const Matrix &	getSectionTangent (void) const =0
	Return the section tangent stiffness matrix, \(ksec\), at the current trial state. More...
virtual const Matrix &	getInitialTangent (void) const =0
virtual const Matrix &	getSectionFlexibility (void) const
	Returns the tangent flexibility matrix of the section. More...
virtual const Matrix &	getInitialFlexibility (void) const
	Returns the initial flexibility matrix of the section.
const Vector &	getGeneralizedStress (void) const
virtual const Vector &	getGeneralizedStrain (void) const
virtual double	getRho (void) const
	Returns the density (mass per unit length/area/volume) of the section. More...
virtual SectionForceDeformation *	getCopy (void) const =0
	Virtual constructor.
virtual const ResponseId &	getType (void) const =0
	Return the ordering and type of response quantities returned by this object. More...
std::string	getTypeString (void) const
	Comma separated internal forces names to with the section contributes with stiffness.
virtual int	getOrder (void) const =0
	Return the number of response quantities provided by the section.
virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)
	Returns the respuesta of the section.
virtual int	getResponse (int responseID, Information &info)
	Returns section response.
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value param to the parameter argv.
virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by parameterID with info.
virtual int	activateParameter (int parameterID)
	Activates the parameter identified by parameterID.
virtual const Vector &	getStressResultantSensitivity (int gradNumber, bool conditional)
virtual const Vector &	getSectionDeformationSensitivity (int gradNumber)
virtual const Matrix &	getSectionTangentSensitivity (int gradNumber)
virtual double	getRhoSensitivity (int gradNumber)
virtual int	commitSensitivity (const Vector &sectionDeformationGradient, int gradNumber, int numGrads)
Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...
const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).
MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).
std::string	getName (void) const
	Returns the name of the material.
virtual int	setVariable (const std::string &argv)
virtual int	getVariable (int variableID, double &info)
virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...
virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...
virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain
virtual int	commitState (void)=0
virtual int	revertToLastCommit (void)=0
virtual int	revertToStart (void)=0
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...
void	assignTag (int newTag)
	Set tag (to be called from Python interface).
int	getTag (void) const
	Returns the tag associated with the object.
virtual void	Print (std::ostream &, int flag=0)
	Print stuff.
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...
	MovableObject (int classTag)
	Constructor. More...
	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.
MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.
int	getClassTag (void) const
	Return the class identifier.
int	getDbTag (void) const
	Return the object identifier in the database.
int	getDbTag (CommParameters &)
	Return the object identifier in the database.
void	setDbTag (int dbTag)
	Sets the object identifier in the database.
void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...
virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...
virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...
virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by var.
virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by var.
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.
int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
Matrix *	fDefault
	Default flexibility matrix.
MaterialHandler *	material_handler
	Material definition handler (search,...).

Detailed Description

Base class for force deformation section models.

Constitutive equations of the section.

Constructor & Destructor Documentation

SectionForceDeformation()

XC::SectionForceDeformation::SectionForceDeformation	(	int	tag,
		int	classTag,
		MaterialHandler *	mat_ldr = nullptr
	)

Constructor.

Parameters

tag	object identifier.
classTag	object class identifier.
mat_ldr	model wide material objects manager.

Member Function Documentation

addInitialSectionDeformation()

int XC::SectionForceDeformation::addInitialSectionDeformation ( const Vector &  def )

virtual

Adds to the generalized strains vector inicial el being passed as parameter.

getRho()

double XC::SectionForceDeformation::getRho ( void  ) const

virtual

Returns the density (mass per unit length/area/volume) of the section.

Reimplemented in XC::MembranePlateFiberSection, and XC::ElasticMembranePlateSection.

getSectionFlexibility()

const XC::Matrix & XC::SectionForceDeformation::getSectionFlexibility ( void  ) const

virtual

Returns the tangent flexibility matrix of the section.

Obtains the section tangent stiffness matrix, \(ksec\), and returns its inverse, the section flexibility matrix, \(fsec\), via an explicit matrix inversion. NOTE: The explicit matrix inversion provides default behavior and may be overridden in subclasses to suit specific SectionForceDeformation implementations.

Reimplemented in XC::SectionAggregator, XC::GenericSection1d, XC::ElasticSection2d, XC::ElasticSection3d, XC::YieldSurfaceSection2d, XC::ElasticShearSection3d, XC::FiberSectionShear3d, and XC::ElasticShearSection2d.

getSectionTangent()

virtual const Matrix& XC::SectionForceDeformation::getSectionTangent ( void  ) const

pure virtual

Return the section tangent stiffness matrix, \(ksec\), at the current trial state.

Implemented in XC::FiberSectionBase, XC::SectionAggregator, XC::Isolator2spring, XC::MembranePlateFiberSection, XC::GenericSection1d, XC::GenericSectionNd, XC::Bidirectional, XC::ElasticSection2d, XC::ElasticSection3d, XC::YieldSurfaceSection2d, XC::ElasticShearSection3d, XC::ElasticMembranePlateSection, XC::FiberSectionShear3d, XC::ElasticShearSection2d, and XC::ElasticPlateSection.

getStressResultant()

virtual const Vector& XC::SectionForceDeformation::getStressResultant ( void  ) const

pure virtual

Return the section resisting forces, \(ssec\), at the current trial state.

Implemented in XC::FiberSectionBase, XC::SectionAggregator, XC::Isolator2spring, XC::MembranePlateFiberSection, XC::GenericSection1d, XC::Bidirectional, XC::GenericSectionNd, XC::ElasticSection2d, XC::ElasticSection3d, XC::YieldSurfaceSection2d, XC::ElasticShearSection3d, XC::ElasticMembranePlateSection, XC::FiberSectionShear3d, XC::ElasticShearSection2d, and XC::ElasticPlateSection.

getType()

virtual const ResponseId& XC::SectionForceDeformation::getType ( void  ) const

pure virtual

Return the ordering and type of response quantities returned by this object.

Return the section ResponseId code that indicates the ordering and type of response quantities returned by the section. Lets the calling object (e.g. an Element) know how to interpret the quantites returned by this object.

Implemented in XC::SectionAggregator, XC::Isolator2spring, XC::GenericSection1d, XC::Bidirectional, XC::GenericSectionNd, XC::FiberSection2d, XC::ElasticSection2d, XC::ElasticSection3d, XC::FiberSectionGJ, XC::FiberSection3d, XC::FiberSectionShear3d, XC::MembranePlateFiberSection, XC::ElasticShearSection3d, XC::YieldSurfaceSection2d, XC::ElasticShearSection2d, XC::ElasticMembranePlateSection, and XC::ElasticPlateSection.

setTrialSectionDeformation()

virtual int XC::SectionForceDeformation::setTrialSectionDeformation ( const Vector &  )

pure virtual

Set the value of the trial section deformation vector, \(esec\) to be {def}.

To return \(0\) if successful, a negative number if not.

Implemented in XC::SectionAggregator, XC::Isolator2spring, XC::FiberSectionBase, XC::MembranePlateFiberSection, XC::Bidirectional, XC::GenericSection1d, XC::GenericSectionNd, XC::FiberSection2d, XC::FiberSection3d, XC::FiberSectionGJ, XC::YieldSurfaceSection2d, XC::FiberSectionShear3d, XC::BaseElasticSection, XC::ElasticPlateProto< SZ >, XC::ElasticPlateProto< 5 >, and XC::ElasticPlateProto< 8 >.

---

The documentation for this class was generated from the following files:

• src/material/section/SectionForceDeformation.h
• src/material/section/SectionForceDeformation.cpp
