Delegate to read Octrees from ply files, this is the abstract base class, to let us modify loading by datatype. More...

#include <OctreeNodePlyReaderDelegate.h>

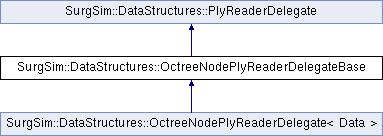

Inheritance diagram for SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase:

Classes
struct	BoundsData
	Data Structure to receive the bounds information. More...

struct	DimensionData
	Data structure to receive the dimension information from the file. More...

struct	SpacingData
	Data structure to receive the spacing information from the file. More...

struct	VoxelData
	Data structure to receive the specific voxel information from the file. More...

Public Member Functions
	OctreeNodePlyReaderDelegateBase ()
	Constructor.

virtual	~OctreeNodePlyReaderDelegateBase ()
	Destructor.

bool	registerDelegate (PlyReader *reader) override
	Registers the delegate with the reader. More...

bool	fileIsAcceptable (const PlyReader &reader) override
	Check whether the file in the reader can be used with this delegate, this gives the delegate a chance to make sure that all the elements and properties that are required are available in the file encapsulated by the reader.

void *	beginBounds (const std::string &elementName, size_t count)
	Callback function, begin the processing of the bounds. More...

void *	beginDimension (const std::string &elementName, size_t count)
	Callback function, begin the processing of the dimension. More...

void *	beginSpacing (const std::string &elementName, size_t count)
	Callback function, begin the processing of the bounds. More...

virtual void *	beginVoxel (const std::string &elementName, size_t count)
	Callback function, begin the processing of the voxels. More...

virtual void	processVoxel (const std::string &elementName)=0
	Callback function to process one voxel. More...

Public Member Functions inherited from SurgSim::DataStructures::PlyReaderDelegate
virtual	~PlyReaderDelegate ()
	Virtual destructor.

Protected Member Functions
virtual void	initializeOctree ()=0
	Set up the octree, this is left up to the derived classes.

Protected Attributes
struct SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::BoundsData	m_bounds

Eigen::AlignedBox< double, 3 >	m_boundingBox
	Bounding box, will be initialized from the file.

struct SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::SpacingData	m_spacing

struct SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::DimensionData	m_dimension

struct SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::VoxelData	m_voxel

int	m_numLevels = -1
	Calculated number of levels for the octree.


bool	m_haveSpacing

bool	m_haveDimensions

bool	m_haveBounds

Detailed Description

Delegate to read Octrees from ply files, this is the abstract base class, to let us modify loading by datatype.

Member Function Documentation

§ beginBounds()

void * SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::beginBounds	(	const std::string &	elementName,
		size_t	count
	)

Callback function, begin the processing of the bounds.

Parameters

elementName	Name of the element.
count	Number of entries.

Exceptions

SurgSim::Framework::AssertionFailure if count != 1, only one bounds entry is expected

Returns: memory for bounds data to the reader.

§ beginDimension()

void * SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::beginDimension	(	const std::string &	elementName,
		size_t	count
	)

Callback function, begin the processing of the dimension.

Parameters

elementName	Name of the element.
count	Number of entries.

Exceptions

SurgSim::Framework::AssertionFailure if count != 1, only one dimesion entry is expected

Returns: memory for dimension data to the reader.

§ beginSpacing()

void * SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::beginSpacing	(	const std::string &	elementName,
		size_t	count
	)

Callback function, begin the processing of the bounds.

Parameters

elementName	Name of the element.
count	Number of entries.

Exceptions

SurgSim::Framework::AssertionFailure if count != 1, only one spacing entry is expected

Returns: memory for spacing data to the reader.

§ beginVoxel()

void * SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::beginVoxel	(	const std::string &	elementName,
		size_t	count
	)

virtual

Callback function, begin the processing of the voxels.

Parameters

elementName	Name of the element.
count	Number of bounds entry.

Returns: memory for voxel data to the reader.

§ processVoxel()

virtual void SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::processVoxel ( const std::string & elementName )

pure virtual

Callback function to process one voxel.

This is left up to the subclasses, they might have to deal with data specific processing

Parameters

elementName Name of the element.

Implemented in SurgSim::DataStructures::OctreeNodePlyReaderDelegate< Data >.

§ registerDelegate()

bool SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::registerDelegate ( PlyReader * reader )

overridevirtual

Registers the delegate with the reader.

Parameters

[out] reader The reader that should be used by the delegate.

Returns: true usually if the reader is valid and fileIsAcceptable() is true.

Implements SurgSim::DataStructures::PlyReaderDelegate.

Member Data Documentation

§ m_haveSpacing

bool SurgSim::DataStructures::OctreeNodePlyReaderDelegateBase::m_haveSpacing

protected

Check wether we actually received the appropriate information, if not we can't initialize the octree

The documentation for this class was generated from the following files:

SurgSim/DataStructures/OctreeNodePlyReaderDelegate.h
SurgSim/DataStructures/OctreeNodePlyReaderDelegate.cpp
