Mixin class for enabling a property system on OSS classes, the instance still needs to initialize properties in the constructor by using either addSetter, addGetter, addAccessors or the macro for each member variable that should be made accessible. More...

#include <Accessible.h>

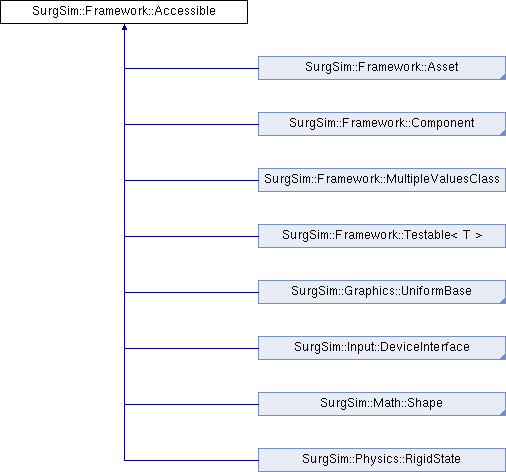

Inheritance diagram for SurgSim::Framework::Accessible:

Public Types
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Member Functions
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Detailed Description

Mixin class for enabling a property system on OSS classes, the instance still needs to initialize properties in the constructor by using either addSetter, addGetter, addAccessors or the macro for each member variable that should be made accessible.

Member Function Documentation

§ decode()

void SurgSim::Framework::Accessible::decode	(	const YAML::Node &	node,
		const std::vector< std::string > &	ignoredProperties = `std::vector<std::string>()`
	)

Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted.

Exceptions

SurgSim::Framework::AssertionFailure if node is not of YAML::NodeType::Map.

Parameters

node	The node that carries the data to be decoded, properties with names that don't match up with properties in the Accessible will be reported.
ignoredProperties	Properties that will be ignored.

§ encode()

YAML::Node SurgSim::Framework::Accessible::encode ( ) const

Encode this Accessible to a YAML::Node.

Returns: The encoded version of this instance.

§ forwardProperty()

void SurgSim::Framework::Accessible::forwardProperty	(	const std::string &	name,
		const Accessible &	target,
		const std::string &	targetProperty
	)

Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target.

Note: This will copy the appropriate calls into the local function table of this accessible, in effect exposing a pointer to the target, if the target goes out of scope, the behavior is undefined

Exceptions

SurgSim::Framework::AssertionFailure if the target does not contain the property named in this call.

Parameters

name	The name of the new property
target	The instance that provides the actual property
targetProperty	The name of the property that should be used.

§ getValue() [1/3]

template<class T >

T SurgSim::Framework::Accessible::getValue ( const std::string & name ) const

Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type.

Exceptions

SurgSim::Framework::AssertionFailure If the conversion fails or the property cannot be found.

Template Parameters

T	The requested type for the property.

Parameters

name	The name of the property.

Returns: The value of the property if the getter was found

§ getValue() [2/3]

boost::any SurgSim::Framework::Accessible::getValue ( const std::string & name ) const

Retrieves the value with the name by executing the getter if it is found.

Exceptions

SurgSim::Framework::AssertionFailure if the property cannot be found

Parameters

name	The name of the property.

Returns: The value of the property if the getter was found

§ getValue() [3/3]

template<class T >

bool SurgSim::Framework::Accessible::getValue	(	const std::string &	name,
		T *	value
	)		const

Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter.

This does not throw.

Template Parameters

T	the type of the property, usually can be deduced automatically

Parameters

	name	The name of the property.
[out]	value	If non-null, will receive the value of the given property.

Returns: true if value != nullptr and the getter can be found.

§ isReadable()

bool SurgSim::Framework::Accessible::isReadable ( const std::string & name ) const

Check whether a property is readable.

Parameters

name	Name of the property to be checked.

Returns: true if the property exists and has a getter

§ isWriteable()

bool SurgSim::Framework::Accessible::isWriteable ( const std::string & name ) const

Check whether a property is writable.

Parameters

name	Name of the property to be checked.

Returns: true if the property exists and has a setter

§ removeAccessors()

void SurgSim::Framework::Accessible::removeAccessors ( const std::string & name )

Removes all the accessors (getter and setter) for a given property.

Parameters

name	The name of the property

§ setAccessors()

void SurgSim::Framework::Accessible::setAccessors	(	const std::string &	name,
		GetterType	getter,
		SetterType	setter
	)

Sets the accessors getter and setter in one function.

Exceptions

SurgSim::Framework::AssertionFailure if either getter or setter is a nullptr.

Parameters

name	The name of the property.
getter	The getter.
setter	The setter.

§ setDecoder()

void SurgSim::Framework::Accessible::setDecoder	(	const std::string &	name,
		DecoderType	decoder
	)

Sets the functions used to convert data from a YAML::Node.

This leaves the encoder (class -> YAML) conversion empty, this can be used to let the user decide how to model the data in the data file, inside the class this should all result in one member to be created/changed.

Parameters

name	The name of the property.
decoder	The function to be used to read the property from the node and set it in the instance.

§ setGetter()

void SurgSim::Framework::Accessible::setGetter	(	const std::string &	name,
		GetterType	func
	)

Sets a getter for a given property.

Exceptions

SurgSim::Framework::AssertionFailure if func is a nullptr.

Parameters

name	The name of the property.
func	The getter function.

§ setSerializable()

void SurgSim::Framework::Accessible::setSerializable	(	const std::string &	name,
		EncoderType	encoder,
		DecoderType	decoder
	)

Sets the functions used to convert data from and to a YAML::Node.

Will throw an exception if the data type that is passed to YAML cannot be converted into a YAML::Node

Parameters

name	The name of the property.
encoder	The function to be used to put the property into the node.
decoder	The function to be used to read the property from the node and set it in the instance.

§ setSetter()

void SurgSim::Framework::Accessible::setSetter	(	const std::string &	name,
		SetterType	func
	)

Sets a setter for a given property.

Exceptions

SurgSim::Framework::AssertionFailure if func is a nullptr.

Parameters

name	The name of the property.
func	The setter function.

§ setValue()

void SurgSim::Framework::Accessible::setValue	(	const std::string &	name,
		const boost::any &	value
	)

Sets a value of a property that has setter.

Exceptions

SurgSim::Framework::AssertionFailure If the property cannot be found.

Parameters

name	The name of the property.
value	The value that it should be set to.

The documentation for this class was generated from the following files:

SurgSim/Framework/Accessible.h
SurgSim/Framework/Accessible-inl.h
SurgSim/Framework/Accessible.cpp
