SurgSim::Graphics::OsgTexture1d Class Reference

OSG implementation of a 1D Texture. More...

#include <OsgTexture1d.h>

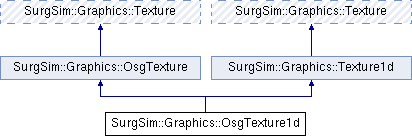

Inheritance diagram for SurgSim::Graphics::OsgTexture1d:

Public Member Functions
	OsgTexture1d ()
	Constructor. More...
virtual void	setSize (int width)
	Sets the size of the texture. More...
virtual void	getSize (int *width) const
	Gets the size of the texture. More...
osg::ref_ptr< osg::Texture1D >	getOsgTexture1d () const
	Returns the osg::Texture1D.
Public Member Functions inherited from SurgSim::Graphics::OsgTexture
virtual bool	loadImage (const std::string &filePath)
	Loads an image into the texture from a file. More...
virtual void	clearImage ()
	Removes the image from the texture.
osg::ref_ptr< osg::Texture >	getOsgTexture () const
	Returns the osg::Texture1D.
Public Member Functions inherited from SurgSim::Graphics::Texture
virtual	~Texture ()
	Destructor.
void	setIsPointSprite (bool value)
	Set point sprite flag on/off.
bool	isPointSprite () const
	Get point sprite flag state.

Additional Inherited Members
Protected Member Functions inherited from SurgSim::Graphics::OsgTexture
	OsgTexture (osg::Texture *texture)
	Constructor. More...

Detailed Description

OSG implementation of a 1D Texture.

Wraps an osg::Texture1d

Constructor & Destructor Documentation

OsgTexture1d()

OsgTexture1d::OsgTexture1d

(

)

Constructor.

Postcondition

No image is loaded in the texture.

Member Function Documentation

getSize()

void OsgTexture1d::getSize ( int *  width ) const

virtual

Gets the size of the texture.

Returns

width Width of the texture

Implements SurgSim::Graphics::Texture1d.

setSize()

void OsgTexture1d::setSize ( int  width )

virtual

Sets the size of the texture.

Parameters

width

Width of the texture

Note

Use this to setup a texture as a render target rather than loading from file.

Implements SurgSim::Graphics::Texture1d.

---

The documentation for this class was generated from the following files:

• SurgSim/Graphics/OsgTexture1d.h
• SurgSim/Graphics/OsgTexture1d.cpp
