Defines the base for tween-based components. More...

#include <ht_tween_component.h>

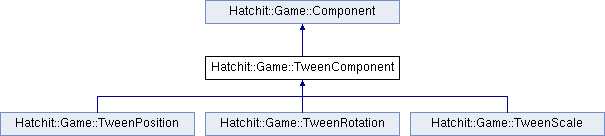

Inheritance diagram for Hatchit::Game::TweenComponent:

Public Types
typedef float(*	TweenFunction) (float start, float end, float time, float duration)
	The type for tween function pointers. More...

Public Member Functions
	TweenComponent ()
	Creates a new tween component.

virtual	~TweenComponent ()
	Destroys this tween component.

virtual Core::JSON	VSerialize (void) override

virtual bool	VDeserialize (const Core::JSON &jsonObject) override

float	GetDuration () const
	Gets the duration of the tween.

TweenMethod	GetMethod () const
	Gets the tween method.

TweenPlayMode	GetPlayMode () const
	Gets the tween play mode.

bool	IsPlaying () const
	Checks to see if this tween is playing.

bool	Play ()
	Plays the tween. More...

bool	Play (float duration)
	Plays the tween. More...

bool	Play (float duration, TweenMethod method)
	Plays the tween. More...

bool	Play (float duration, TweenMethod method, TweenPlayMode mode)
	Plays the tween. More...

void	SetDuration (float duration)
	Sets the tween's duration. More...

void	SetMethod (TweenMethod method)
	Sets the tween method. More...

void	SetPlayMode (TweenPlayMode mode)
	Sets the play mode. More...

void	Stop ()
	Stops the tween.

void	VOnInit () override
	Called when the GameObject is created to initialize all values.

virtual void	VOnUpdate () override
	Called once per frame while the GameObject is enabled. More...

void	VOnDestroy () override
	Called when the GameObject is destroyed/deleted. More...

Component *	VClone (void) const override
	Creates a copy of this Component.

virtual Core::Guid	VGetComponentId (void) const override
	Retrieves the id associated with this class of Component. More...

Public Member Functions inherited from Hatchit::Game::Component
	Component (const Component &rhs)=default

	Component (Component &&rhs)=default

Component &	operator= (const Component &rhs)=default

Component &	operator= (Component &&rhs)=default

GameObject *	GetOwner (void)
	Getter which returns the GameObject to which this Component is attached. More...

bool	GetEnabled (void)
	Getter that returns that value of m_enabled. More...

void	SetEnabled (bool value)
	Setter that sets the value of m_enabled. More...

void	SetOwner (GameObject *owner)
	Setter that sets which GameObject this Component is attached to. More...

Protected Member Functions
bool	AreValuesCompatible () const
	Checks to see if the start and end values are compatible.

void	VOnEnabled () override
	Called when the Component is enabled. More...

void	VOnDisabled () override
	Called when the Component is disabled. More...

Static Protected Member Functions
static void	CreateTweenFunctions ()
	Creates the global list of tween functions.

Protected Attributes
TweenValue	m_targetValue

TweenValue	m_startValue

TweenValue	m_endValue

TweenFunction	m_tweenFunction

TweenMethod	m_tweenMethod

TweenPlayMode	m_tweenPlayMode

float	m_startTime

float	m_duration

bool	m_isPlaying

Protected Attributes inherited from Hatchit::Game::Component
bool	m_enabled {true}
	bool indicating if this Component is enabled. More...

GameObject *	m_owner
	The GameObject to which this Component is attached. More...

Static Protected Attributes
static std::vector< TweenFunction >	s_tweenFunctions

Additional Inherited Members
Static Public Member Functions inherited from Hatchit::Game::Component
template<typename T >
static Core::Guid	GetComponentId (void)
	Returns the unique id associated with a Component of type T. More...

Detailed Description

Defines the base for tween-based components.

Member Typedef Documentation

typedef float(* Hatchit::Game::TweenComponent::TweenFunction) (float start, float end, float time, float duration)

The type for tween function pointers.

Parameters

start	The start value.
end	The end value.
time	The current time in the tween.
duration	The duration of the tween.

Returns: The resulting tween value.

Member Function Documentation

bool Hatchit::Game::TweenComponent::Play ( )

Plays the tween.

Returns: True if the tween has begun, false if there was an error.

bool Hatchit::Game::TweenComponent::Play ( float duration )

Plays the tween.

Parameters

duration The duration of the tween.

Returns: True if the tween has begun, false if there was an error.

bool Hatchit::Game::TweenComponent::Play	(	float	duration,
		TweenMethod	method
	)

Plays the tween.

Parameters

duration	The duration of the tween.
method	The tween method.

Returns: True if the tween has begun, false if there was an error.

bool Hatchit::Game::TweenComponent::Play	(	float	duration,
		TweenMethod	method,
		TweenPlayMode	mode
	)

Plays the tween.

Parameters

duration	The duration of the tween.
method	The tween method.
mode	The play mode.

Returns: True if the tween has begun, false if there was an error.

void Hatchit::Game::TweenComponent::SetDuration ( float duration )

Sets the tween's duration.

Parameters

duration The new duration.

void Hatchit::Game::TweenComponent::SetMethod ( TweenMethod method )

Sets the tween method.

Parameters

method The new method.

void Hatchit::Game::TweenComponent::SetPlayMode ( TweenPlayMode mode )

Sets the play mode.

Parameters

method The new play mode.

Core::Guid Hatchit::Game::TweenComponent::VGetComponentId ( void ) const

overridevirtual

Retrieves the id associated with this class of Component.

Returns: The Core::Guid associated with this Component type.

See also: Component(), GameObject()

Implements Hatchit::Game::Component.

Reimplemented in Hatchit::Game::TweenScale, Hatchit::Game::TweenPosition, and Hatchit::Game::TweenRotation.

void Hatchit::Game::TweenComponent::VOnDestroy ( void )

overridevirtual

Called when the GameObject is destroyed/deleted.

Objects are always disabled before destroyed. When a scene is destroyed, all gameobjects are disabled before any are destroyed.

Implements Hatchit::Game::Component.

void Hatchit::Game::TweenComponent::VOnDisabled ( void )

overrideprotectedvirtual

Called when the Component is disabled.

Components are always disabled before destroyed. When a scene is destroyed, all Components are disabled before any are destroyed.

Implements Hatchit::Game::Component.

void Hatchit::Game::TweenComponent::VOnEnabled ( void )

overrideprotectedvirtual

Called when the Component is enabled.

This happens when a scene has finished loading, or immediately after creation if the scene is already loaded.

Implements Hatchit::Game::Component.

void Hatchit::Game::TweenComponent::VOnUpdate ( void )

overridevirtual

Called once per frame while the GameObject is enabled.

Updates all components first, then all child gameobjects.

Implements Hatchit::Game::Component.

Reimplemented in Hatchit::Game::TweenScale, Hatchit::Game::TweenPosition, and Hatchit::Game::TweenRotation.

The documentation for this class was generated from the following files:

include/unused/ht_tween_component.h
source/unused/ht_tween_component.cpp
source/unused/ht_tween_functions.cpp
