abstract class for all animation instance implementation. More...

#include <AnimInstanceBase.h>

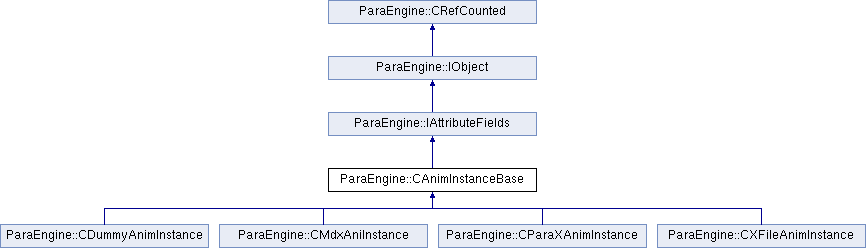

Inheritance diagram for ParaEngine::CAnimInstanceBase:

Public Member Functions
	ATTRIBUTE_DEFINE_CLASS (CAnimInstanceBase)

virtual int	InstallFields (CAttributeClass *pClass, bool bOverride)
	this class should be implemented if one wants to add new attribute. More...

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, GetRenderCount_s, int *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, SetRenderCount_s, int)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, IsAnimIDMapEnabled_s, bool *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, EnableAnimIDMap_s, bool)

	ATTRIBUTE_METHOD (CAnimInstanceBase, ResetAnimation_s)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, GetCurrentAnimation_s, int *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, ShowMesh_s, DWORD)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, GetSizeScale_s, float *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, SetSizeScale_s, float)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, GetSpeedScale_s, float *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, SetSpeedScale_s, float)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, IsUseGlobalTime_s, bool *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, SetUseGlobalTime_s, bool)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, GetAnimFrame_s, int *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, SetAnimFrame_s, int)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, IsAnimationEnabled_s, bool *)

	ATTRIBUTE_METHOD1 (CAnimInstanceBase, EnableAnimation_s, bool)

virtual int	GetRenderCount ()
	this function is called to update the render frame number of this object. More...

virtual void	SetRenderCount (int nCount)

void	EnableAnimIDMap (bool bEnable)
	set whether the m_mapAnimIDs will be used. More...

bool	IsAnimIDMapEnabled ()
	get whether the m_mapAnimIDs will be used.Disabled by default

map< int, int > *	GetAnimIDMap ()
	one can use the returned map to set and get the animation ID mapping. More...

void	ApplyLocalTransformToVec3 (Vector3 pOut, const Vector3 pV)
	pOut = m_mxLocalTransform (X) pV;

void	ApplyLocalTransformToVec1 (float pOut, float pV)

virtual void	LoadAnimation (const char sName, float fSpeed, bool bAppend=false)
	Play or append the specified animation. More...

virtual void	LoadAnimation (int nAnimID, float *fSpeed, bool bAppend=false)

virtual void	LoadDefaultStandAnim (float *fSpeed)

virtual void	LoadDefaultWalkAnim (float *fSpeed)

virtual bool	HasAnimId (int nAnimID)
	check to see if the underlying model has a given animation id. More...

virtual int	GetCurrentAnimation ()
	get the ID of the current animation. More...

virtual void	ResetAnimation ()
	reset the animation and blending animation. More...

virtual void	SetModelColor (LinearColor modelColor)
	set model color, different race might have different color

virtual void	ShowMesh (BOOL bShow, int nIndex)
	a model might has several meshes, you can show or hide them by setting the bit field of a DWORD. More...

virtual void	ShowMesh (DWORD dwBitfields)

virtual void	SetLocalTransform (Matrix4 mXForm)
	when calling draw method, the mxWorld is pre-multiplied by a location transform matrix

virtual void	AdvanceTime (double dTimeDelta)
	Draw() method will call this function automatically.

virtual void	Animate (double dTimeDelta, int nRenderNumber=0)
	animate the model. More...

virtual HRESULT	Draw (SceneState sceneState, const Matrix4 mxWorld, CParameterBlock *paramBlock=NULL)
	simply call this function to draw and advance time. More...

virtual void	BuildShadowVolume (SceneState sceneState, ShadowVolume pShadowVolume, LightParams pLight, Matrix4 mxWorld)

virtual void	SetSizeScale (float fScale)
	get the size scale scale normally this is 1.0f

virtual float	GetSizeScale ()
	get the size scale

virtual void	GetCurrentRadius (float *fRadius)
	normally this will read the radius of the current animation and calculate the correct size after scaling

virtual void	GetCurrentSize (float fWidth, float fDepth)
	normally this will read the radius of the current animation and calculate the correct size after scaling

virtual void	SetSpeedScale (float fScale)
	set the scale factor that will be pre-multiplied to the loaded model and animation the animation speed is changed, one should later call GetCurrentSpeed to update the animation's displacement speed. More...

virtual float	GetSpeedScale ()
	Get the scale factor that will be pre-multiplied to the loaded model and animation. More...

virtual void	GetCurrentSpeed (float *fSpeed)
	normally this will read the move speed of the current animation and calculate the correct(scaled) speed

virtual void	GetSpeedOf (const char sName, float fSpeed)
	normally this will read the move speed of the specified animation and calculate the correct(scaled) speed

virtual void	SetUseGlobalTime (bool bUseGlobalTime)
	whether to use global time to sync animation. More...

virtual bool	IsUseGlobalTime ()
	whether to use global time to sync animation. More...

virtual void	SetAnimFrame (int nFrame)
	set the current animation frame number relative to the beginning of current animation. More...

virtual int	GetAnimFrame ()
	get the current animation frame number relative to the beginning of current animation. More...

virtual void	SetBlendingFactor (float fBlendingFactor)
	set the blending factor between the current and blend animation. More...

virtual bool	HasAnimation (int nAnimID)
	whether an animation id exist

virtual bool	HasAlphaBlendedObjects ()
	return true if the object contains alpha blended render pass. More...

virtual int	GetValidAnimID (int nAnimID)
	look for a valid animation ID for nAnimID. More...

void	EnableAnimation (bool bAnimated)
	whether animation is enabled. More...

bool	IsAnimationEnabled () const

Public Member Functions inherited from ParaEngine::IAttributeFields
virtual int	GetAttributeClassID ()
	attribute class ID should be identical, unless one knows how overriding rules work. More...

virtual const char *	GetAttributeClassName ()
	a static string, describing the attribute class object's name

virtual const char *	GetAttributeClassDescription ()
	a static string, describing the attribute class object

virtual int	GetChildAttributeColumnCount ()
	we support multi-dimensional child object. More...

virtual int	GetChildAttributeObjectCount (int nColumnIndex=0)
	get the number of child objects (row count) in the given column. More...

virtual IAttributeFields *	GetChildAttributeObject (int nRowIndex, int nColumnIndex=0)

virtual IAttributeFields *	GetChildAttributeObject (const std::string &sName)
	get attribute by child object. More...

	ATTRIBUTE_METHOD1 (IAttributeFields, GetName_s, const char **)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetName_s, const char *)

	ATTRIBUTE_METHOD (IAttributeFields, PrintObject_s)

	ATTRIBUTE_METHOD (IAttributeFields, AddRef_s)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetRefCount_s, int *)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetTime_s, int)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetTime_s, int *)

	ATTRIBUTE_METHOD (IAttributeFields, Release_s)

virtual const std::string &	GetIdentifier ()

virtual void	SetIdentifier (const std::string &sID)

virtual bool	IsModified ()
	whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary. More...

virtual void	SetModified (bool bModified)
	set whether any field has been modified. More...

virtual bool	ValidateFields ()
	validate all fields and return true if validation passed. More...

virtual string	GetValidationMessage ()
	get the recent validation message due to the most recent call to ValidateFields()

virtual bool	ResetField (int nFieldID)
	Reset the field to its initial or default value. More...

virtual bool	InvokeEditor (int nFieldID, const std::string &sParameters)
	Invoke an (external) editor for a given field. More...

virtual bool	AddChildAttributeObject (IAttributeFields *pChild, int nRowIndex=-1, int nColumnIndex=0)
	add child object. More...

virtual void *	QueryObjectByName (const std::string &sObjectType)
	convert to object of a given type. More...

virtual void *	QueryObject (int nObjectType)
	convert to object of a given type. More...

virtual int	GetTime ()
	get the current local time in case it is animated in milli seconds frames. More...

virtual void	SetTime (int nTime)

virtual CDynamicAttributeField *	GetDynamicField (const std::string &sName)
	Get a dynamic field with a given name. More...

virtual CDynamicAttributeField *	GetDynamicField (int nIndex)
	Get a dynamic field with a given index. More...

virtual const char *	GetDynamicFieldNameByIndex (int nIndex)
	get field name by index

virtual int	GetDynamicFieldCount ()
	how many dynamic field this object currently have. More...

virtual int	SetDynamicField (const std::string &sName, const CVariable &value)
	set a dynamic field with a given name. More...

virtual int	AddDynamicField (const std::string &sName, ATTRIBUTE_FIELDTYPE dwType)
	add dynamic field and return field index

virtual void	RemoveAllDynamicFields ()
	remove all dynamic fields

virtual int	SaveDynamicFieldsToString (std::string &output)
	save only text dynamic fields to fieldname = value text strings. More...

virtual int	LoadDynamicFieldsFromString (const std::string &input)
	load only text dynamic fields from string More...

CAttributeClass *	GetAttributeClass ()
	get the main attribute class object. More...

void	PrintObject ()
	print the content of this object to a text file at temp/doc/[ClassName].txt. More...

Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...

virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...

virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...

virtual const IType *	GetType () const

virtual std::string	ToString () const

WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...

virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...

Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...

bool	delref () const
	decrease reference count of the object. More...

int	GetRefCount () const
	get the reference count

virtual int	Release ()

CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...

Protected Attributes
LinearColor	m_modelColor
	color of this model

Matrix4	m_mxLocalTransform
	mesh local world xform: center in the origin

float	m_fSizeScale
	scale parameters

float	m_fSpeedScale

int	m_nRenderCount
	the last render frame count that this object is rendered. More...

map< int, int >	m_mapAnimIDs
	a mapping from one animation ID to another ID. More...

bool	m_bEnableAnimIDMap
	whether the m_mapAnimIDs will be used. More...

bool	m_bEnableAnimation
	whether animation is enabled, true by default. More...

Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference

Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount

Additional Inherited Members
Public Types inherited from ParaEngine::IAttributeFields
typedef ParaEngine::weak_ptr< IObject, IAttributeFields >	WeakPtr_type

Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type

Static Public Member Functions inherited from ParaEngine::IAttributeFields
static HRESULT	GetAttributeClassID_s (IAttributeFields cls, int p1)

static HRESULT	GetAttributeClassName_s (IAttributeFields cls, const char *p1)

static bool	OpenWithDefaultEditor (const char *sFilename, bool bWaitOnReturn=false)
	Open a given file with the default registered editor in the game engine. More...

Protected Member Functions inherited from ParaEngine::IAttributeFields
virtual CAttributeClass *	CreateAttributeClass ()
	initialize fields

virtual CDynamicAttributesSet *	GetDynamicAttributes (bool bCreateIfNotExist=false)

Detailed Description

abstract class for all animation instance implementation.

so that there can be several implementations such as MDX animation and X file animation support.

Member Function Documentation

§ Animate()

void ParaEngine::CAnimInstanceBase::Animate	(	double	dTimeDelta,
		int	nRenderNumber = `0`
	)

virtual

animate the model.

One can call this function multiple times in a single render frame, but only the first time is calculated. this function will call AdvanceTime internally.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ Draw()

HRESULT ParaEngine::CAnimInstanceBase::Draw	(	SceneState *	sceneState,
		const Matrix4 *	mxWorld,
		CParameterBlock *	paramBlock = `NULL`
	)

virtual

simply call this function to draw and advance time.

set dTimeDelta to 0 if you want to render only static model.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ EnableAnimation()

void ParaEngine::CAnimInstanceBase::EnableAnimation ( bool bAnimated )

whether animation is enabled.

by default this is true. During movie editing, we may disable animation, set animation frame explicitly by editor logics.

§ EnableAnimIDMap()

void ParaEngine::CAnimInstanceBase::EnableAnimIDMap ( bool bEnable )

set whether the m_mapAnimIDs will be used.

Disabled by default

§ GetAnimFrame()

int ParaEngine::CAnimInstanceBase::GetAnimFrame ( )

virtual

get the current animation frame number relative to the beginning of current animation.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ GetAnimIDMap()

map< int, int > * ParaEngine::CAnimInstanceBase::GetAnimIDMap ( )

one can use the returned map to set and get the animation ID mapping.

animation ID mapping is a mapping from one animation ID to another ID. This mapping is usually not used (empty). However, it is used when we can want to secretly replace animation used by this animation instance, by adding a ID to ID map. e.g. we can replace female walk animation ID with an external female walk animation ID.

Note: : remember to EnableAnimIDMap() in order for the mapping to take effect.

§ GetCurrentAnimation()

int ParaEngine::CAnimInstanceBase::GetCurrentAnimation ( )

virtual

get the ID of the current animation.

0 is default standing animation.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ GetRenderCount()

int ParaEngine::CAnimInstanceBase::GetRenderCount ( )

virtual

this function is called to update the render frame number of this object.

please note that, the frame number increases by 1 every frame. This function is called inside the Draw() function to prevent the same animation to be advanced multiple times in a single render frame.

§ GetSpeedScale()

float ParaEngine::CAnimInstanceBase::GetSpeedScale ( )

virtual

Get the scale factor that will be pre-multiplied to the loaded model and animation.

Returns: : speed scale. 1.0 is the original speed.

§ GetValidAnimID()

int ParaEngine::CAnimInstanceBase::GetValidAnimID ( int nAnimID )

virtual

look for a valid animation ID for nAnimID.

return -1 if no animation is found. e.g. if nAnimId 4 not found, 0 will be returned.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ HasAlphaBlendedObjects()

bool ParaEngine::CAnimInstanceBase::HasAlphaBlendedObjects ( )

virtual

return true if the object contains alpha blended render pass.

This function determines which render pipeline stage the object is rendered. generally speaking, if deferred shading is used, we will render alpha blended objects last.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ HasAnimId()

bool ParaEngine::CAnimInstanceBase::HasAnimId ( int nAnimID )

virtual

check to see if the underlying model has a given animation id.

Reimplemented in ParaEngine::CParaXAnimInstance, and ParaEngine::CDummyAnimInstance.

§ InstallFields()

int ParaEngine::CAnimInstanceBase::InstallFields	(	CAttributeClass *	pClass,
		bool	bOverride
	)

virtual

this class should be implemented if one wants to add new attribute.

This function is always called internally.

Reimplemented from ParaEngine::IAttributeFields.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ IsUseGlobalTime()

bool ParaEngine::CAnimInstanceBase::IsUseGlobalTime ( )

virtual

whether to use global time to sync animation.

Default to false. if true, all characters plays exactly the same frames if they are using the same animation file at all times, if false, each character advances its time frame separately according to their visibility in the scene.

Note: : animation is always looped once use global time

Reimplemented in ParaEngine::CParaXAnimInstance.

§ LoadAnimation()

void ParaEngine::CAnimInstanceBase::LoadAnimation	(	const char *	sName,
		float *	fSpeed,
		bool	bAppend = `false`
	)

virtual

Play or append the specified animation.

If the current animation is the same as the specified animation, it will loop on the current animation infinitely until a different animation is specified; otherwise, the current animation will be stopped, the specified animation played and the next animation emptied.

Parameters

fSpeed	[out] the speed of the animation after applying scaling is returned.
bAppend	if true, the new animation will be appended to the current animation according to the following rules: if the current animation is non-looping, the new animation will be played after the end of the current animation. if the current animation is looping, the new animation will be played immediately.

Reimplemented in ParaEngine::CParaXAnimInstance, and ParaEngine::CMdxAniInstance.

§ ResetAnimation()

void ParaEngine::CAnimInstanceBase::ResetAnimation ( )

virtual

reset the animation and blending animation.

this function must be called when the base model (CharModelInstance) is changed.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ SetAnimFrame()

void ParaEngine::CAnimInstanceBase::SetAnimFrame ( int nFrame )

virtual

set the current animation frame number relative to the beginning of current animation.

Parameters

nFrame 0 means beginning. if nFrame is longer than the current animation length, it will wrap (modulate the length).

Reimplemented in ParaEngine::CParaXAnimInstance.

§ SetBlendingFactor()

void ParaEngine::CAnimInstanceBase::SetBlendingFactor ( float fBlendingFactor )

virtual

set the blending factor between the current and blend animation.

Parameters

bBlendingFactor from [0,1]. where 0 means no blending.

Reimplemented in ParaEngine::CParaXAnimInstance.

§ SetSpeedScale()

void ParaEngine::CAnimInstanceBase::SetSpeedScale ( float fScale )

virtual

set the scale factor that will be pre-multiplied to the loaded model and animation the animation speed is changed, one should later call GetCurrentSpeed to update the animation's displacement speed.

Reimplemented in ParaEngine::CMdxAniInstance.

§ SetUseGlobalTime()

void ParaEngine::CAnimInstanceBase::SetUseGlobalTime ( bool bUseGlobalTime )

virtual

whether to use global time to sync animation.

Default to false. if true, all characters plays exactly the same frames if they are using the same animation file at all times, if false, each character advances its time frame separately according to their visibility in the scene.

Note: : animation is always looped once use global time

Reimplemented in ParaEngine::CParaXAnimInstance.

§ ShowMesh()

void ParaEngine::CAnimInstanceBase::ShowMesh	(	BOOL	bShow,
		int	nIndex
	)

virtual

a model might has several meshes, you can show or hide them by setting the bit field of a DWORD.

the lowest bit is the first mesh.

Reimplemented in ParaEngine::CMdxAniInstance.

Member Data Documentation

§ m_bEnableAnimation

bool ParaEngine::CAnimInstanceBase::m_bEnableAnimation

protected

whether animation is enabled, true by default.

§ m_bEnableAnimIDMap

bool ParaEngine::CAnimInstanceBase::m_bEnableAnimIDMap

protected

whether the m_mapAnimIDs will be used.

Disabled by default

§ m_mapAnimIDs

map<int, int> ParaEngine::CAnimInstanceBase::m_mapAnimIDs

protected

a mapping from one animation ID to another ID.

This mapping is usually not used (empty). However, it is used when we can want to secretly replace animation used by this animation instance, by adding a ID to ID map. e.g. we can replace female walk animation ID with an external female walk animation ID.

§ m_nRenderCount

int ParaEngine::CAnimInstanceBase::m_nRenderCount

protected

the last render frame count that this object is rendered.

The documentation for this class was generated from the following files:

Client/trunk/ParaEngineClient/3dengine/AnimInstanceBase.h
Client/trunk/ParaEngineClient/3dengine/AnimInstanceBase.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

§ Animate()

§ Draw()

§ EnableAnimation()

§ EnableAnimIDMap()

§ GetAnimFrame()

§ GetAnimIDMap()

§ GetCurrentAnimation()

§ GetRenderCount()

§ GetSpeedScale()

§ GetValidAnimID()

§ HasAlphaBlendedObjects()

§ HasAnimId()

§ InstallFields()

§ IsUseGlobalTime()

§ LoadAnimation()

§ ResetAnimation()

§ SetAnimFrame()

§ SetBlendingFactor()

§ SetSpeedScale()

§ SetUseGlobalTime()

§ ShowMesh()

Member Data Documentation

§ m_bEnableAnimation

§ m_bEnableAnimIDMap

§ m_mapAnimIDs

§ m_nRenderCount
