A common interface for all classes implementing IAttributeFields By implementing this class's virtual functions, it enables a class to easily expose attributes to the NPL scripting interface. More...

#include <IAttributeFields.h>

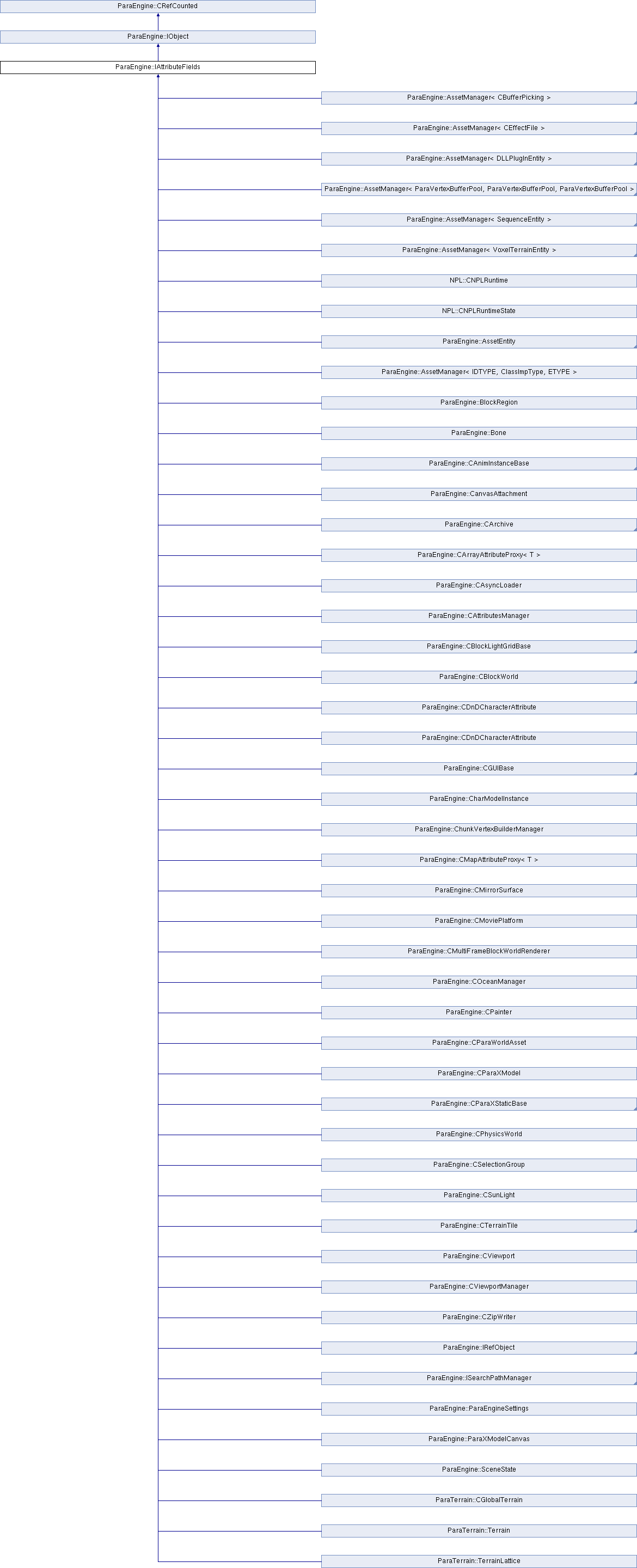

Inheritance diagram for ParaEngine::IAttributeFields:

Public Types
typedef ParaEngine::weak_ptr< IObject, IAttributeFields >	WeakPtr_type

Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type

Public Member Functions
virtual int	GetAttributeClassID ()
	attribute class ID should be identical, unless one knows how overriding rules work. More...

virtual const char *	GetAttributeClassName ()
	a static string, describing the attribute class object's name

virtual const char *	GetAttributeClassDescription ()
	a static string, describing the attribute class object

virtual int	InstallFields (CAttributeClass *pClass, bool bOverride)
	this class should be implemented if one wants to add new attribute. More...

virtual int	GetChildAttributeColumnCount ()
	we support multi-dimensional child object. More...

virtual int	GetChildAttributeObjectCount (int nColumnIndex=0)
	get the number of child objects (row count) in the given column. More...

virtual IAttributeFields *	GetChildAttributeObject (int nRowIndex, int nColumnIndex=0)

virtual IAttributeFields *	GetChildAttributeObject (const std::string &sName)
	get attribute by child object. More...

	ATTRIBUTE_METHOD1 (IAttributeFields, GetName_s, const char **)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetName_s, const char *)

	ATTRIBUTE_METHOD (IAttributeFields, PrintObject_s)

	ATTRIBUTE_METHOD (IAttributeFields, AddRef_s)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetRefCount_s, int *)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetTime_s, int)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetTime_s, int *)

	ATTRIBUTE_METHOD (IAttributeFields, Release_s)

virtual const std::string &	GetIdentifier ()

virtual void	SetIdentifier (const std::string &sID)

virtual bool	IsModified ()
	whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary. More...

virtual void	SetModified (bool bModified)
	set whether any field has been modified. More...

virtual bool	ValidateFields ()
	validate all fields and return true if validation passed. More...

virtual string	GetValidationMessage ()
	get the recent validation message due to the most recent call to ValidateFields()

virtual bool	ResetField (int nFieldID)
	Reset the field to its initial or default value. More...

virtual bool	InvokeEditor (int nFieldID, const std::string &sParameters)
	Invoke an (external) editor for a given field. More...

virtual bool	AddChildAttributeObject (IAttributeFields *pChild, int nRowIndex=-1, int nColumnIndex=0)
	add child object. More...

virtual void *	QueryObjectByName (const std::string &sObjectType)
	convert to object of a given type. More...

virtual void *	QueryObject (int nObjectType)
	convert to object of a given type. More...

virtual int	GetTime ()
	get the current local time in case it is animated in milli seconds frames. More...

virtual void	SetTime (int nTime)

virtual CDynamicAttributeField *	GetDynamicField (const std::string &sName)
	Get a dynamic field with a given name. More...

virtual CDynamicAttributeField *	GetDynamicField (int nIndex)
	Get a dynamic field with a given index. More...

virtual const char *	GetDynamicFieldNameByIndex (int nIndex)
	get field name by index

virtual int	GetDynamicFieldCount ()
	how many dynamic field this object currently have. More...

virtual int	SetDynamicField (const std::string &sName, const CVariable &value)
	set a dynamic field with a given name. More...

virtual int	AddDynamicField (const std::string &sName, ATTRIBUTE_FIELDTYPE dwType)
	add dynamic field and return field index

virtual void	RemoveAllDynamicFields ()
	remove all dynamic fields

virtual int	SaveDynamicFieldsToString (std::string &output)
	save only text dynamic fields to fieldname = value text strings. More...

virtual int	LoadDynamicFieldsFromString (const std::string &input)
	load only text dynamic fields from string More...

CAttributeClass *	GetAttributeClass ()
	get the main attribute class object. More...

void	PrintObject ()
	print the content of this object to a text file at temp/doc/[ClassName].txt. More...

Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...

virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...

virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...

virtual const IType *	GetType () const

virtual std::string	ToString () const

WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...

virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...

Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...

bool	delref () const
	decrease reference count of the object. More...

int	GetRefCount () const
	get the reference count

virtual int	Release ()

CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...

Static Public Member Functions
static HRESULT	GetAttributeClassID_s (IAttributeFields cls, int p1)

static HRESULT	GetAttributeClassName_s (IAttributeFields cls, const char *p1)

static bool	OpenWithDefaultEditor (const char *sFilename, bool bWaitOnReturn=false)
	Open a given file with the default registered editor in the game engine. More...

Protected Member Functions
virtual CAttributeClass *	CreateAttributeClass ()
	initialize fields

virtual CDynamicAttributesSet *	GetDynamicAttributes (bool bCreateIfNotExist=false)

Additional Inherited Members
Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference

Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount

Detailed Description

A common interface for all classes implementing IAttributeFields By implementing this class's virtual functions, it enables a class to easily expose attributes to the NPL scripting interface.

All standard attribute types are supported by the external editors, which makes displaying and editing object attributes an automatic process.

This class has only one data member, hence there are little space penalties for implementing this class. The attribute information for each class is kept centrally in a global table by CAttributeClass. An example of using this class can be found at AttributesManager.h and CAttributesManager::PrintManual() most objects in ParaEngine implement this class, such as CBaseObject, etc. The following virtual functions must be implemented: GetAttributeClassID(), GetAttributeClassName(), InstallFields()

Use following macros to define new class or adding new attributes: ATTRIBUTE_DEFINE_CLASS(XXXX_classname) Class destructor should be a virtual function

Member Function Documentation

§ AddChildAttributeObject()

bool ParaEngine::IAttributeFields::AddChildAttributeObject	(	IAttributeFields *	pChild,
		int	nRowIndex = `-1`,
		int	nColumnIndex = `0`
	)

virtual

add child object.

Reimplemented in ParaEngine::CBaseObject.

§ GetAttributeClass()

CAttributeClass * IAttributeFields::GetAttributeClass ( )

get the main attribute class object.

§ GetAttributeClassID()

int ParaEngine::IAttributeFields::GetAttributeClassID ( )

virtual

attribute class ID should be identical, unless one knows how overriding rules work.

Reimplemented in ParaTerrain::Terrain, ParaEngine::CBaseObject, ParaEngine::COceanManager, ParaEngine::CBipedObject, ParaEngine::CSceneObject, ParaEngine::CGUIIMEEditBox, ParaEngine::CMeshObject, NPL::CNPLRuntime, ParaEngine::CRpgCharacter, ParaEngine::CRpgCharacter, ParaEngine::CBaseCamera, ParaEngine::CGUIBase, ParaEngine::CAutoCamera, ParaEngine::CGUIRoot, ParaEngine::CParaXModel, ParaEngine::ParaEngineSettings, ParaTerrain::CGlobalTerrain, ParaEngine::CMeshPhysicsObject, ParaEngine::CPortalNode, ParaEngine::CBlockWorld, ParaEngine::CZoneNode, ParaEngine::CMiniSceneGraph, ParaEngine::CGUIWebBrowser, ParaEngine::CMoviePlatform, ParaEngine::CAttributesManager, ParaEngine::CSunLight, ParaEngine::CSkyMesh, ParaEngine::CParaXStaticModel, ParaEngine::IGameObject, ParaEngine::CViewport, ParaEngine::CParaXStaticMesh, ParaEngine::CGUIEditBox, ParaEngine::CSphereObject, ParaEngine::CDnDCharacterAttribute, ParaEngine::CDnDCharacterAttribute, ParaEngine::CGUIButton, ParaEngine::BlockWorldClient, and ParaEngine::CTerrainTileRoot.

§ GetChildAttributeColumnCount()

int ParaEngine::IAttributeFields::GetChildAttributeColumnCount ( )

virtual

we support multi-dimensional child object.

by default objects have only one column.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CanvasAttachment, ParaEngine::CBipedObject, ParaEngine::CSceneObject, ParaEngine::CGUIBase, ParaTerrain::TerrainLattice, ParaEngine::ParaEngineSettings, ParaEngine::CParaXModel, ParaTerrain::CGlobalTerrain, ParaEngine::CParaWorldAsset, ParaEngine::CBlockWorld, ParaEngine::AssetManager< IDTYPE, ClassImpType, ETYPE >, ParaEngine::AssetManager< CEffectFile >, ParaEngine::AssetManager< CBufferPicking >, ParaEngine::AssetManager< DLLPlugInEntity >, ParaEngine::AssetManager< SequenceEntity >, ParaEngine::AssetManager< VoxelTerrainEntity >, ParaEngine::AssetManager< ParaVertexBufferPool, ParaVertexBufferPool, ParaVertexBufferPool >, ParaEngine::CharModelInstance, ParaEngine::CTerrainTile, ParaEngine::CBufferPicking, ParaEngine::ParaXModelCanvas, ParaEngine::BlockWorldClient, ParaEngine::CParaXAnimInstance, ParaEngine::BMaxObject, ParaEngine::COverlayObject, and ParaEngine::CTerrainTileRoot.

§ GetChildAttributeObject()

IAttributeFields * ParaEngine::IAttributeFields::GetChildAttributeObject ( const std::string & sName )

virtual

get attribute by child object.

used to iterate across the attribute field hierarchy.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CanvasAttachment, ParaEngine::CBipedObject, ParaEngine::CSceneObject, ParaEngine::CGUIBase, ParaTerrain::TerrainLattice, ParaEngine::CParaXModel, ParaEngine::ParaEngineSettings, ParaTerrain::CGlobalTerrain, ParaEngine::CParaWorldAsset, ParaEngine::CBlockWorld, ParaEngine::CFileManager, ParaEngine::AssetManager< IDTYPE, ClassImpType, ETYPE >, ParaEngine::AssetManager< CEffectFile >, ParaEngine::AssetManager< CBufferPicking >, ParaEngine::AssetManager< DLLPlugInEntity >, ParaEngine::AssetManager< SequenceEntity >, ParaEngine::AssetManager< VoxelTerrainEntity >, ParaEngine::AssetManager< ParaVertexBufferPool, ParaVertexBufferPool, ParaVertexBufferPool >, ParaEngine::CharModelInstance, ParaEngine::CTerrainTile, ParaEngine::CViewportManager, ParaEngine::CBufferPicking, ParaEngine::ParaXModelCanvas, ParaEngine::BlockWorldClient, ParaEngine::CParaXAnimInstance, ParaEngine::COverlayObject, and ParaEngine::CTerrainTileRoot.

§ GetChildAttributeObjectCount()

int ParaEngine::IAttributeFields::GetChildAttributeObjectCount ( int nColumnIndex = 0 )

virtual

get the number of child objects (row count) in the given column.

please note different columns can have different row count.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CanvasAttachment, ParaEngine::CBipedObject, ParaEngine::CSceneObject, ParaEngine::CSelectionManager, NPL::CNPLRuntime, ParaEngine::CGUIBase, ParaTerrain::TerrainLattice, ParaEngine::CSelectionGroup, ParaEngine::CParaXModel, ParaEngine::ParaEngineSettings, ParaTerrain::CGlobalTerrain, ParaEngine::CParaWorldAsset, ParaEngine::CBlockWorld, ParaEngine::CFileManager, ParaEngine::AssetManager< IDTYPE, ClassImpType, ETYPE >, ParaEngine::AssetManager< CEffectFile >, ParaEngine::AssetManager< CBufferPicking >, ParaEngine::AssetManager< DLLPlugInEntity >, ParaEngine::AssetManager< SequenceEntity >, ParaEngine::AssetManager< VoxelTerrainEntity >, ParaEngine::AssetManager< ParaVertexBufferPool, ParaVertexBufferPool, ParaVertexBufferPool >, ParaEngine::CViewportManager, ParaEngine::CharModelInstance, ParaEngine::CTerrainTile, ParaEngine::CBufferPicking, ParaEngine::ParaXModelCanvas, ParaEngine::BlockWorldClient, ParaEngine::CArrayAttributeProxy< T >, ParaEngine::CParaXAnimInstance, ParaEngine::BMaxObject, ParaEngine::COverlayObject, ParaEngine::CTerrainTileRoot, and ParaEngine::ParaXEntity.

§ GetDynamicField() [1/2]

CDynamicAttributeField * ParaEngine::IAttributeFields::GetDynamicField ( const std::string & sName )

virtual

Get a dynamic field with a given name.

Parameters

sName name of the field to set

Returns: : return the field or NULL if does not exist

§ GetDynamicField() [2/2]

CDynamicAttributeField * ParaEngine::IAttributeFields::GetDynamicField ( int nIndex )

virtual

Get a dynamic field with a given index.

Parameters

sName name of the field to set

Returns: : return the field or NULL if does not exist

§ GetDynamicFieldCount()

int ParaEngine::IAttributeFields::GetDynamicFieldCount ( )

virtual

how many dynamic field this object currently have.

§ GetTime()

int ParaEngine::IAttributeFields::GetTime ( )

virtual

get the current local time in case it is animated in milli seconds frames.

Reimplemented in ParaEngine::CBipedObject, ParaEngine::BMaxObject, and ParaEngine::CParaXAnimInstance.

§ InstallFields()

int IAttributeFields::InstallFields	(	CAttributeClass *	pClass,
		bool	bOverride
	)

virtual

this class should be implemented if one wants to add new attribute.

This function is always called internally.

Reimplemented in ParaTerrain::Terrain, ParaEngine::CBaseObject, ParaEngine::SceneState, ParaEngine::CZipArchive, ParaEngine::CanvasAttachment, ParaEngine::COceanManager, ParaEngine::CBipedObject, ParaEngine::CSceneObject, ParaEngine::CMeshObject, NPL::CNPLRuntime, ParaEngine::CRpgCharacter, ParaEngine::CRpgCharacter, ParaEngine::CBaseCamera, ParaEngine::CAsyncLoader, ParaEngine::CAnimInstanceBase, ParaEngine::CGUIBase, ParaEngine::CAutoCamera, ParaEngine::CBlockLightGridBase, ParaEngine::CGUIRoot, ParaEngine::CParaWorldAsset, ParaEngine::CParaXModel, ParaEngine::ParaEngineSettings, NPL::CNPLRuntimeState, ParaTerrain::CGlobalTerrain, ParaEngine::CMeshPhysicsObject, ParaEngine::CPortalNode, ParaEngine::CBlockWorld, ParaEngine::CZoneNode, ParaEngine::CPainter, ParaEngine::CMiniSceneGraph, ParaEngine::CGUIWebBrowser, ParaEngine::CMoviePlatform, ParaEngine::CAttributesManager, ParaEngine::CBlockPieceParticle, ParaEngine::CParaXStaticBase, ParaEngine::CSunLight, ParaEngine::CFileManager, ParaEngine::CSkyMesh, ParaEngine::IGameObject, ParaEngine::CViewport, ParaEngine::AssetEntity, ParaEngine::BlockRegion, ParaEngine::CGUIEditBox, ParaEngine::CSphereObject, ParaEngine::CMultiFrameBlockWorldRenderer, ParaEngine::CDnDCharacterAttribute, ParaEngine::CDnDCharacterAttribute, ParaEngine::CharModelInstance, ParaEngine::CLightObject, ParaEngine::CRenderTarget, ParaEngine::CViewportManager, ParaEngine::CGUIButton, ParaEngine::CBufferPicking, ParaEngine::ParaXModelCanvas, ParaEngine::BlockWorldClient, ParaEngine::CWeatherEffect, ParaEngine::WeatherParticleSpawner, ParaEngine::BMaxObject, ParaEngine::Bone, ParaEngine::CParaXAnimInstance, ParaEngine::ChunkVertexBuilderManager, ParaEngine::CBlockDynamicObject, ParaEngine::CContainerObject, ParaEngine::ParaVertexBufferPool, and ParaEngine::ParaXEntity.

§ InvokeEditor()

virtual bool ParaEngine::IAttributeFields::InvokeEditor	(	int	nFieldID,
		const std::string &	sParameters
	)

inlinevirtual

Invoke an (external) editor for a given field.

This is usually for NPL script field

Parameters

nFieldID	: field ID
sParameters	: the parameter passed to the editor

Returns: true if editor is invoked, false if failed or field has no editor.

§ IsModified()

virtual bool ParaEngine::IAttributeFields::IsModified ( )

inlinevirtual

whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary.

Reimplemented in ParaTerrain::Terrain, ParaTerrain::CGlobalTerrain, ParaTerrain::TerrainLattice, ParaEngine::CSceneObject, ParaEngine::IGameObject, and ParaEngine::BlockRegion.

§ LoadDynamicFieldsFromString()

int IAttributeFields::LoadDynamicFieldsFromString ( const std::string & input )

virtual

load only text dynamic fields from string

Returns: the number of fields loaded.

§ OpenWithDefaultEditor()

bool IAttributeFields::OpenWithDefaultEditor	(	const char *	sFilename,
		bool	bWaitOnReturn = `false`
	)

static

Open a given file with the default registered editor in the game engine.

Parameters

sFileName	file name to be opened by the default editor.
bWaitOnReturn	if false, the function returns immediately; otherwise it will wait for the editor to return.

Returns: true if opened.

§ PrintObject()

void IAttributeFields::PrintObject ( )

print the content of this object to a text file at temp/doc/[ClassName].txt.

This is usually used for dumping and testing object attributes.

§ QueryObject()

void * ParaEngine::IAttributeFields::QueryObject ( int nObjectType )

virtual

convert to object of a given type.

Parameters

nObjectType such as values in ATTRIBUTE_CLASSID_TABLE, In most cases, we query ATTRIBUTE_CLASSID_CBaseObject

Reimplemented in ParaEngine::CBaseObject, and ParaEngine::CGUIBase.

§ QueryObjectByName()

void * ParaEngine::IAttributeFields::QueryObjectByName ( const std::string & sObjectType )

virtual

convert to object of a given type.

Parameters

sObjectType

Reimplemented in ParaEngine::CBaseObject.

§ ResetField()

virtual bool ParaEngine::IAttributeFields::ResetField ( int nFieldID )

inlinevirtual

Reset the field to its initial or default value.

Parameters

nFieldID : field ID

Returns: true if value is set; false if value not set.

Reimplemented in ParaEngine::IGameObject.

§ SaveDynamicFieldsToString()

int IAttributeFields::SaveDynamicFieldsToString ( std::string & output )

virtual

save only text dynamic fields to fieldname = value text strings.

one on each line. line separator is
.

Returns: the number of fields saved. or -1 if failed.

§ SetDynamicField()

int ParaEngine::IAttributeFields::SetDynamicField	(	const std::string &	sName,
		const CVariable &	value
	)

virtual

set a dynamic field with a given name.

Parameters

sName name of the field to set : the value to add. if NULL, field will be removed.

Returns: : -1 failed, if 0 means modified, if 1 means a new key is added, if 2 means a key is removed.

§ SetModified()

virtual void ParaEngine::IAttributeFields::SetModified ( bool bModified )

inlinevirtual

set whether any field has been modified.

Reimplemented in ParaTerrain::Terrain, ParaEngine::CSceneObject, ParaEngine::IGameObject, and ParaEngine::BlockRegion.

§ ValidateFields()

virtual bool ParaEngine::IAttributeFields::ValidateFields ( )

inlinevirtual

validate all fields and return true if validation passed.

The documentation for this class was generated from the following files:

Client/trunk/ParaEngineClient/Core/IAttributeFields.h
Client/trunk/ParaEngineClient/Core/IAttributeFields.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

§ AddChildAttributeObject()

§ GetAttributeClass()

§ GetAttributeClassID()

§ GetChildAttributeColumnCount()

§ GetChildAttributeObject()

§ GetChildAttributeObjectCount()

§ GetDynamicField() [1/2]

§ GetDynamicField() [2/2]

§ GetDynamicFieldCount()

§ GetTime()

§ InstallFields()

§ InvokeEditor()

§ IsModified()

§ LoadDynamicFieldsFromString()

§ OpenWithDefaultEditor()

§ PrintObject()

§ QueryObject()

§ QueryObjectByName()

§ ResetField()

§ SaveDynamicFieldsToString()

§ SetDynamicField()

§ SetModified()

§ ValidateFields()
