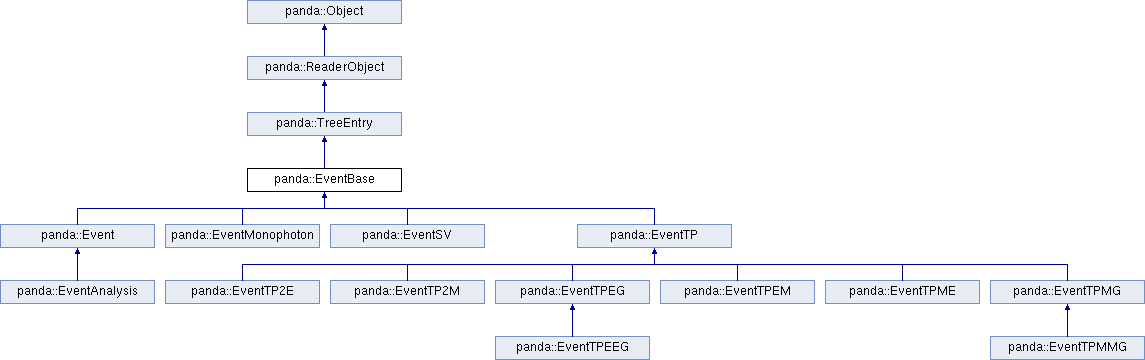

Inheritance diagram for panda::EventBase:

Public Member Functions
	EventBase (EventBase const &)

EventBase &	operator= (EventBase const &)

void	print (std::ostream &=std::cout, UInt_t level=1) const override
	Print the object content.

void	dump (std::ostream &=std::cout) const override
	Dump the object content.

virtual GenParticleBaseCollection const *	genParticleCollection () const

virtual GenParticleBaseCollection *	genParticleCollection ()

void	setReadRunTree (Bool_t s)
	Turn run synch feature on/off (default on)

UInt_t	registerTrigger (char const *path)
	Use to declare a trigger path to be used in the analysis. Returns a token for the path. More...

Bool_t	triggerFired (UInt_t token) const
	Trigger decision of the event. More...

void	registerTriggerObjects (char const *filter)
	Use to declare a trigger filter name (key in the triggerObjects map) to be used in the analysis. More...

Public Member Functions inherited from panda::TreeEntry
	TreeEntry (TreeEntry const &src)

TreeEntry &	operator= (TreeEntry const &)

void	setStatus (TTree &, utils::BranchList const &blist) final
	Set status of branches to true (matching branch) or false (vetoed branch) More...

utils::BranchList	getStatus (TTree &) const final
	Get status of branches in the tree.

utils::BranchList	getBranchNames (Bool_t=kTRUE, Bool_t direct=kFALSE) const final
	Get the full list of branch names. More...

UInt_t	setAddress (TTree &, utils::BranchList const &blist={"*"}, Bool_t setStatus=kTRUE) final
	Bind the tree branches to the elements of this object. More...

void	book (TTree &, utils::BranchList const &blist={"*"}) final
	Book new branches bound to this object on the tree. More...

Int_t	getEntry (UInt_t, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

Int_t	fill (TTree &) final
	Fill a tree. More...

void	init () final
	Reset the object state.

char const *	getName () const final
	Name of this object.

void	setName (char const *) final
	Set object name.

void	unlink (TTree &) final
	Unlink from a tree.

Public Member Functions inherited from panda::ReaderObject
	ReaderObject (ReaderObject const &src)

ReaderObject &	operator= (ReaderObject const &)

Int_t	getEntry (TTree &tree, Long64_t entry, Bool_t localEntry=kFALSE) final
	Read an entry from an input tree. More...

void	updateBranchArray (TTree &)

Public Member Functions inherited from panda::Object
	Object (Object const &)

Object &	operator= (Object const &)

Static Public Member Functions
static utils::BranchList	getListOfBranches (Bool_t direct=kFALSE)

Public Attributes
HLTBits	triggers = HLTBits("triggers")

PartonCollection	partons = PartonCollection("partons", 8)

Vertex	genVertex = Vertex("genVertex")

UInt_t	runNumber {}

UInt_t	lumiNumber {}

ULong64_t	eventNumber {}

Bool_t	isData {}

Float_t	weight {}

UShort_t	npv {}

UShort_t	npvTrue {}

Run	run
	Current run object.

HLTObjectStore	triggerObjects = HLTObjectStore("triggerObjects")
	Trigger object collection with additional features.

RRNG	rng {0,0,nullptr}
	Repeatable random number generator, initialized to be empty.

Protected Member Functions
void	doSetStatus_ (TTree &, utils::BranchList const &) override

utils::BranchList	doGetStatus_ (TTree &) const override

utils::BranchList	doGetBranchNames_ () const override

void	doSetAddress_ (TTree &, utils::BranchList const &, Bool_t setStatus) override

void	doBook_ (TTree &, utils::BranchList const &) override

void	doGetEntry_ (TTree &) override

void	doInit_ () override

void	doUnlink_ (TTree &) override

Protected Member Functions inherited from panda::ReaderObject
UInt_t	registerInput_ (TTree &)

Additional Inherited Members
Protected Types inherited from panda::ReaderObject
typedef std::vector< TBranch * >	BranchArray

typedef std::pair< TTree *, BranchArray >	BranchMapping
	List of branches linked with this object in the tree.

Protected Attributes inherited from panda::TreeEntry
std::vector< Object * >	objects_ {}
	list of object branches (containers and singlets)

std::vector< CollectionBase * >	collections_ {}
	list of collections (overlaps with objects_)

Protected Attributes inherited from panda::ReaderObject
std::vector< BranchMapping >	inputBranches_
	List of list of input branches. More...

Member Function Documentation

§ registerTrigger()

UInt_t panda::EventBase::registerTrigger ( char const * path )

inline

Use to declare a trigger path to be used in the analysis. Returns a token for the path.

Call this function before the event loop for each trigger you will be using. The return value is an integer unique to the path, and can be passed to triggerFired() in the event loop to retrieve the trigger decision of the event.

Parameters

path HLT path

§ registerTriggerObjects()

void panda::EventBase::registerTriggerObjects ( char const * filter )

inline

Use to declare a trigger filter name (key in the triggerObjects map) to be used in the analysis.

By default, all trigger objects are loaded into the triggerObjects map at each call to getEntry. Once a call to this function is made, only the objects for the registered filter will be loaded.

§ triggerFired()

Bool_t panda::EventBase::triggerFired ( UInt_t token ) const

Trigger decision of the event.

Pass the trigger token returned by registerTrigger().

Parameters

token Token returned by registerTrigger()

The documentation for this class was generated from the following files:

Objects/interface/EventBase.h
Objects/src/EventBase.cc
