Abstract base class for objects that can be drawn to a render target. More...

#include <IDrawable.hpp>

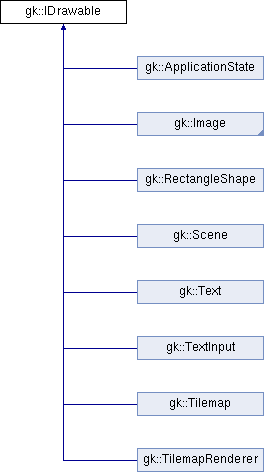

Inheritance diagram for gk::IDrawable:

Public Member Functions
virtual	~IDrawable ()=default
	Virtual destructor. More...

Protected Member Functions
virtual void	draw (RenderTarget &target, RenderStates states) const =0
	Draw the object to a render target. More...

Friends
class	RenderTarget

Detailed Description

Abstract base class for objects that can be drawn to a render target.

This part of the documentation has been taken from SFML. Once the migration to 2.6 is done, this file will be removed.

gk::IDrawable is a very simple base class that allows objects of derived classes to be drawn to a gk::RenderTarget.

All you have to do in your derived class is to override the draw virtual function.

Note that inheriting from gk::IDrawable is not mandatory, but it allows this nice syntax "window.draw(object)" rather than "object.draw(window)", which is more consistent with other GameKit classes.

Example:

class MyDrawable : public gk::IDrawable {
    public:
       ...
    private:
        void draw(gk::RenderTarget &target, gk::RenderStates states) const override {
            // You can draw other high-level objects
            target.draw(m_sprite, states);
            // ... or use the low-level API
            states.texture = &m_texture;
            target.draw(m_vertices, GL_QUADS, 0, 16, states);
        }
        gk::Sprite m_sprite;
        gk::Texture m_texture;
        gk::VertexBuffer m_vbo;
};

See also: gk::RenderTarget

Definition at line 25 of file IDrawable.hpp.

Constructor & Destructor Documentation

§ ~IDrawable()

virtual gk::IDrawable::~IDrawable ( )

virtualdefault

Virtual destructor.

Member Function Documentation

§ draw()

virtual void gk::IDrawable::draw	(	RenderTarget &	target,
		RenderStates	states
	)		const

protectedpure virtual

Draw the object to a render target.

This is a pure virtual function that has to be implemented by the derived class to define how the drawable should be drawn.

Parameters

target	Render target to draw to
states	Current render states

Implemented in gk::ApplicationState, gk::Scene, gk::Text, gk::Image, gk::RectangleShape, gk::Tilemap, gk::TextInput, and gk::TilemapRenderer.

Friends And Related Function Documentation

§ RenderTarget

friend class RenderTarget

friend

Definition at line 34 of file IDrawable.hpp.

The documentation for this class was generated from the following file:

include/gk/gl/IDrawable.hpp
