Base class for all the things that make up Levels' Sectors. More...

#include <game_object.hpp>

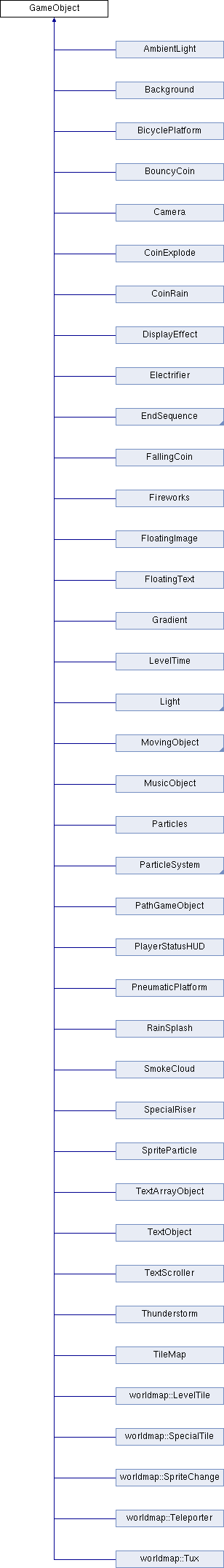

Inheritance diagram for GameObject:

Public Member Functions
	GameObject (const std::string &name)

	GameObject (const ReaderMapping &reader)

virtual void	finish_construction ()
	Called after all objects have been added to the Sector and the Sector is fully constructed. More...

UID	get_uid () const

virtual void	update (float dt_sec)=0
	This function is called once per frame and allows the object to update it's state. More...

virtual void	draw (DrawingContext &context)=0
	The GameObject should draw itself onto the provided DrawingContext if this function is called. More...

void	save (Writer &writer)
	This function saves the object. More...

virtual std::string	get_class () const

virtual std::string	get_display_name () const

virtual bool	is_singleton () const
	If true only a single object of this type is allowed in a given GameObjectManager.

virtual bool	has_variable_size () const
	Does this object have variable size (secret area trigger, wind, etc.)

virtual bool	is_saveable () const
	Indicates if the object will be saved. More...

virtual bool	has_settings () const
	Indicates if get_settings() is implemented. More...

virtual ObjectSettings	get_settings ()

virtual void	after_editor_set ()

bool	is_valid () const
	returns true if the object is not scheduled to be removed yet

void	remove_me ()
	schedules this object to be removed at the end of the frame

void	add_remove_listener (ObjectRemoveListener *listener)
	registers a remove listener which will be called if the object gets removed/destroyed

void	del_remove_listener (ObjectRemoveListener *listener)
	unregisters a remove listener, so it will no longer be called if the object gets removed/destroyed

void	set_name (const std::string &name)

const std::string &	get_name () const

virtual const std::string	get_icon_path () const

virtual void	stop_looping_sounds ()
	stops all looping sounds

virtual void	play_looping_sounds ()
	continues all looping sounds

template<typename T >
T *	get_component ()

void	add_component (std::unique_ptr< GameObjectComponent > component)

void	remove_component (GameObjectComponent *component)

virtual void	editor_delete ()
	The editor requested the deletion of the object.

virtual void	editor_select ()
	The user clicked on the object in the editor and selected it.

virtual void	editor_deselect ()
	The object got deselected.

virtual void	editor_update ()
	Called each frame in the editor, used to keep linked objects together (e.g. More...

Protected Attributes
std::string	m_name
	a name for the gameobject, this is mostly a hint for scripts and for debugging, don't rely on names being set or being unique

Friends
class	GameObjectManager

Detailed Description

Base class for all the things that make up Levels' Sectors.

Each sector of a level will hold a list of active GameObject while the game is played.

This class is responsible for:

Updating and Drawing the object. This should happen in the update() and draw() functions. Both are called once per frame.
Providing a safe way to remove the object by calling the remove_me functions.

Member Function Documentation

§ draw()

virtual void GameObject::draw ( DrawingContext & context )

pure virtual

The GameObject should draw itself onto the provided DrawingContext if this function is called.

Implemented in LiveFireDormant, worldmap_editor::Teleporter, AmbientSound, FloatingImage, LiveFireAsleep, Camera, BicyclePlatform, TileMap, PneumaticPlatform, ParticleSystem, worldmap_editor::LevelDot, BonusBlock, Player, MovingSprite, TriggerBase, IceCrusher, ParticleSystem_Interactive, Climbable, Electrifier, BadGuy, Particles, SpriteParticle, TextArrayObject, SecretAreaTrigger, PathGameObject, worldmap::SpriteChange, SequenceTrigger, Background, MagicBlock, TextScroller, PlayerStatusHUD, Door, worldmap::Tux, Dispenser, TreeWillOWisp, RainSplash, ScriptTrigger, Switch, worldmap::LevelTile, Kugelblitz, Block, Gradient, SpawnPointMarker, TextObject, Thunderstorm, worldmap::SpecialTile, GhostTree, FloatingText, LevelTime, MusicObject, Flower, Light, SpecialRiser, Torch, Wind, worldmap::Teleporter, Stalactite, SkullTile, GrowUp, InfoBlock, InvisibleBlock, ScriptedObject, Spotlight, WeakBlock, Bullet, Candle, DisplayEffect, Firefly, PulsingLight, MarkerObject, AmbientLight, BouncyCoin, Explosion, Fireworks, InvisibleWall, SmokeCloud, Root, CoinRain, EndSequence, FallingCoin, PowerUp, Star, Lantern, Yeti, YetiStalactite, CoinExplode, EndSequenceFireworks, EndSequenceWalkLeft, EndSequenceWalkRight, and Fish.

§ editor_update()

virtual void GameObject::editor_update ( )

inlinevirtual

Called each frame in the editor, used to keep linked objects together (e.g.

platform on a path)

Reimplemented in TileMap, Coin, Platform, ResizeMarker, and NodeMarker.

§ finish_construction()

virtual void GameObject::finish_construction ( )

inlinevirtual

Called after all objects have been added to the Sector and the Sector is fully constructed.

If objects refer to other objects by name, those connection can be resolved here.

Reimplemented in TileMap, Coin, WillOWisp, and Platform.

§ has_settings()

virtual bool GameObject::has_settings ( ) const

inlinevirtual

Indicates if get_settings() is implemented.

If true the editor will display Tip and ObjectMenu.

Reimplemented in ResizeMarker, and NodeMarker.

§ is_saveable()

virtual bool GameObject::is_saveable ( ) const

inlinevirtual

Indicates if the object will be saved.

If false, the object will be skipped on saving and can't be cloned in the editor.

Reimplemented in Camera, Player, TextArrayObject, SpriteParticle, PlayerStatusHUD, TextObject, Gradient, MarkerObject, Electrifier, Particles, EndSequence, Bullet, BicyclePlatformChild, DisplayEffect, PneumaticPlatformChild, Explosion, Star, BouncyCoin, FallingCoin, Fireworks, SmokeCloud, CoinRain, FloatingText, RainSplash, Bomb, Flower, Light, SpecialRiser, CoinExplode, FloatingImage, GrowUp, and OneUp.

§ save()

void GameObject::save ( Writer & writer )

This function saves the object.

Editor will use that.

§ update()

virtual void GameObject::update ( float dt_sec )

pure virtual

This function is called once per frame and allows the object to update it's state.

The dt_sec is the time that has passed since the last frame in seconds and should be the base for all timed calculations (don't use SDL_GetTicks directly as this will fail in pause mode). This function is not called in the Editor.

Implemented in AmbientSound, HeavyCoin, FloatingImage, BicyclePlatform, Camera, PneumaticPlatform, TileMap, MovingSprite, Player, BadGuy, TriggerBase, IceCrusher, TextArrayObject, Climbable, Electrifier, Particles, SpriteParticle, worldmap::SpriteChange, Coin, PathGameObject, Platform, TextScroller, worldmap::Tux, worldmap::LevelTile, Background, MagicBlock, TextObject, PlayerStatusHUD, Door, worldmap::SpecialTile, RainSplash, Rock, Switch, Block, Gradient, Thunderstorm, Torch, worldmap::Teleporter, FloatingText, LevelTime, MusicObject, Flower, Light, SpecialRiser, Wind, CloudParticleSystem, GhostParticleSystem, PneumaticPlatformChild, RustyTrampoline, SkullTile, SpawnPointMarker, BicyclePlatformChild, GrowUp, InfoBlock, OneUp, ScriptedObject, SnowParticleSystem, Spotlight, UnstableTile, WeakBlock, Bullet, DisplayEffect, FallingCoin, Ispy, PulsingLight, RainParticleSystem, MarkerObject, AmbientLight, BouncyCoin, Explosion, Fireworks, SmokeCloud, Trampoline, WaterDrop, YetiStalactite, CoinRain, EndSequence, PowerUp, PushButton, Star, and CoinExplode.

The documentation for this class was generated from the following files:

src/supertux/game_object.hpp
src/supertux/game_object.cpp
