A general Cholesky factorization and solver based on Cholmod. More...
#include <CholmodSupport.h>
Public Types | |
| typedef _MatrixType | MatrixType |

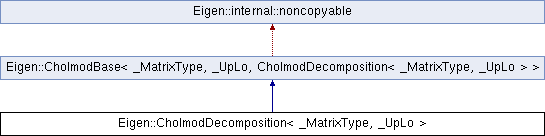

 Public Types inherited from Eigen::CholmodBase< _MatrixType, _UpLo, CholmodDecomposition< _MatrixType, _UpLo > > | |
| enum | |
| typedef _MatrixType | MatrixType |
| typedef MatrixType::Scalar | Scalar |
| typedef MatrixType::RealScalar | RealScalar |
| typedef MatrixType | CholMatrixType |
| typedef MatrixType::Index | Index |
Public Member Functions | |
| CholmodDecomposition (const MatrixType &matrix) | |
| void | setMode (CholmodMode mode) |
| Public Member Functions inherited from Eigen::CholmodBase< _MatrixType, _UpLo, CholmodDecomposition< _MatrixType, _UpLo > > | |
| CholmodBase (const MatrixType &matrix) | |
| Index | cols () const |
| Index | rows () const |
| CholmodDecomposition< _MatrixType, _UpLo > & | derived () |
| const CholmodDecomposition< _MatrixType, _UpLo > & | derived () const |
| ComputationInfo | info () const |
| Reports whether previous computation was successful. More... | |
| CholmodDecomposition< _MatrixType, _UpLo > & | compute (const MatrixType &matrix) |
| Computes the sparse Cholesky decomposition of matrix. | |
| const internal::solve_retval< CholmodBase, Rhs > | solve (const MatrixBase< Rhs > &b) const |
| const internal::sparse_solve_retval< CholmodBase, Rhs > | solve (const SparseMatrixBase< Rhs > &b) const |
| void | analyzePattern (const MatrixType &matrix) |
| Performs a symbolic decomposition on the sparsity pattern of matrix. More... | |
| void | factorize (const MatrixType &matrix) |
| Performs a numeric decomposition of matrix. More... | |
| cholmod_common & | cholmod () |
| Returns a reference to the Cholmod's configuration structure to get a full control over the performed operations. More... | |
| void | _solve (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const |
| void | _solve (const SparseMatrix< RhsScalar, RhsOptions, RhsIndex > &b, SparseMatrix< DestScalar, DestOptions, DestIndex > &dest) const |
| CholmodDecomposition< _MatrixType, _UpLo > & | setShift (const RealScalar &offset) |
| Sets the shift parameter that will be used to adjust the diagonal coefficients during the numerical factorization. More... | |
| void | dumpMemory (Stream &) |
Protected Member Functions | |
| void | init () |
Additional Inherited Members | |
| Protected Attributes inherited from Eigen::CholmodBase< _MatrixType, _UpLo, CholmodDecomposition< _MatrixType, _UpLo > > | |
| cholmod_common | m_cholmod |
| cholmod_factor * | m_cholmodFactor |
| RealScalar | m_shiftOffset [2] |
| ComputationInfo | m_info |
| bool | m_isInitialized |
| int | m_factorizationIsOk |
| int | m_analysisIsOk |
Detailed Description
template<typename _MatrixType, int _UpLo = Lower>
class Eigen::CholmodDecomposition< _MatrixType, _UpLo >
A general Cholesky factorization and solver based on Cholmod.
This class allows to solve for A.X = B sparse linear problems via a LL^T or LDL^T Cholesky factorization using the Cholmod library. The sparse matrix A must be selfadjoint and positive definite. The vectors or matrices X and B can be either dense or sparse.
This variant permits to change the underlying Cholesky method at runtime. On the other hand, it does not provide access to the result of the factorization. The default is to let Cholmod automatically choose between a simplicial and supernodal factorization.
- Template Parameters
-
_MatrixType the type of the sparse matrix A, it must be a SparseMatrix<> _UpLo the triangular part that will be used for the computations. It can be Lower or Upper. Default is Lower.
This class supports all kind of SparseMatrix<>: row or column major; upper, lower, or both; compressed or non compressed.
- See also
- Sparse solvers
The documentation for this class was generated from the following file:
- vendor/eigen/Eigen/src/CholmodSupport/CholmodSupport.h
