Load due to restricted material expansion or contraction on bidimensional elements. More...

#include <BidimStrainLoad.h>

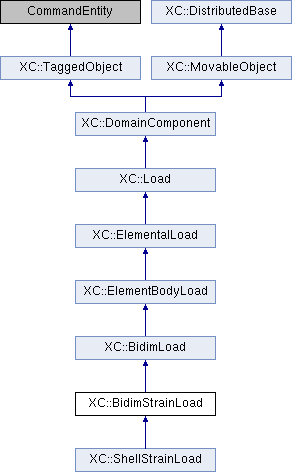

Inheritance diagram for XC::BidimStrainLoad:

Public Member Functions
	BidimStrainLoad (int tag, const std::vector< Vector > &, const ID &theElementTags)

	BidimStrainLoad (int tag, const size_t &, const Vector &, const ID &theElementTags)

	BidimStrainLoad (int tag, const size_t &, const ID &theElementTags)

	BidimStrainLoad (int tag, const size_t &, const Vector &)

	BidimStrainLoad (int tag, const size_t &)

	BidimStrainLoad (const size_t &s=4)

const std::vector< Vector > &	getStrains (void) const

std::vector< Vector > &	Strains (void)

const Vector &	getStrain (const size_t &i) const

Vector &	Strain (const size_t &i)

void	setStrains (const Matrix &)
	Asigna las strains.

void	setStrainComp (const size_t &, const size_t &, const double &)
	Sets the strains for a Gauss point. More...

const Vector &	getData (int &type, const double &loadFactor) const

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::BidimLoad
	BidimLoad (int tag, int classTag, const ID &theElementTags)

	BidimLoad (int tag, int classTag)

virtual std::string	Categoria (void) const

void	Print (std::ostream &s, int flag=0) const
	Print stuff.

Public Member Functions inherited from XC::ElementBodyLoad
	ElementBodyLoad (int tag, int classTag, const ID &theElementTags)

	ElementBodyLoad (int tag, int classTag)

	ElementBodyLoad (int classTag)

virtual void	setDomain (Domain *theDomain)
	Sets the pointer to the domain. More...

virtual void	applyLoad (double loadfactor)
	The load object is to add `loadFactor` times the load to the corresponding residual value at its associated element(s) or node(s). More...

virtual int	removeElement (int tag)
	Removes the element from those affected by the load. More...

void	Print (std::ostream &s, int flag=0) const
	Print stuff.

Public Member Functions inherited from XC::ElementalLoad
	ElementalLoad (int tag=0, int classTag=0)
	Constructor. More...

	ElementalLoad (int tag, int classTag, const ID &)
	Constructor. More...

int	numElements (void) const
	Return the number of loaded elements.

int	setElementTags (const ID &theEleTags)
	Sets the identifiers of the loaded elements.

virtual const ID &	getElementTags (void) const
	Return the identifiers of the loaded elements.

virtual const Vector &	getSensitivityData (const int &gradIndex) const

Public Member Functions inherited from XC::Load
	Load (int tag, int classTag)
	Constructor. More...

virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the identifier of the pattern to which the load belongs.

virtual int	getLoadPatternTag (void) const
	Return the identifier of the pattern to which the load belongs. More...

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.

void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

virtual void	Print (std::ostream &, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags of the class members. More...

int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementBodyLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementalLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Load
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Additional Inherited Members
Protected Attributes inherited from XC::ElementalLoad
ID	elemTags
	Tags of loaded elements.

Detailed Description

Load due to restricted material expansion or contraction on bidimensional elements.

Member Function Documentation

§ getDbTagData()

XC::DbTagData & XC::BidimStrainLoad::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags of the class members.

Reimplemented from XC::DistributedBase.

§ recvSelf()

int XC::BidimStrainLoad::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::BidimStrainLoad::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

§ setStrainComp()

void XC::BidimStrainLoad::setStrainComp	(	const size_t &	i,
		const size_t &	j,
		const double &	strain
	)

Sets the strains for a Gauss point.

Parameters

i	Gauss point index.
j	Strain component.
strain	Strain value.

The documentation for this class was generated from the following files:

src/domain/load/plane/BidimStrainLoad.h
src/domain/load/plane/BidimStrainLoad.cc
