XC::BoundaryCondHandler Class Reference

Constraint cration tools. More...

#include <BoundaryCondHandler.h>

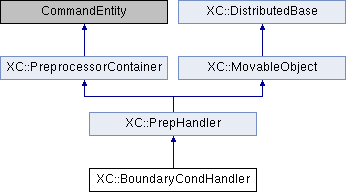

Inheritance diagram for XC::BoundaryCondHandler:

Public Member Functions
	BoundaryCondHandler (Preprocessor *owr)
	Default constructor.
const int &	getTagNextSPConstraint (void) const
const int &	getTagNextMPConstraint (void) const
const int &	getTagNextMRMPConstraint (void) const
int	getNumSPs (void) const
	returns number of single node constraints.
int	getNumMPs (void) const
	returns numbr of multiple node constraints.
int	getNumMRMPs (void) const
	returns numbr of multiple retained node constraints.
int	getNumLPs (void) const
	returns number of load patterns.
SFreedom_Constraint *	newSPConstraint (const int &, const int &, const double &)
	Defines a single freedom constraint.
void	removeSPConstraint (const int &tagC)
	Removes the constraint from domain.
MFreedom_Constraint *	newMPConstraint (const int &, const int &, const ID &, const ID &)
	Appends a multi-freedom constraint to the model.
MFreedom_Constraint *	newEqualDOF (const int &, const int &, const ID &)
	Imposes the same displacements on both nodes for the components specified in the argument. More...
MFreedom_Constraint *	newRigidBeam (const int &, const int &)
MFreedom_Constraint *	newRigidRod (const int &, const int &)
MRMFreedom_Constraint *	newMRMPConstraint (const ID &, const int &, const ID &)
	Appends a multi-row, multi-freedom constraint to the model.
MRMFreedom_Constraint *	newGlueNodeToElement (const Node &, const Element &, const ID &)
void	clearAll (void)
	Clears all the objects.
Public Member Functions inherited from XC::PrepHandler
	PrepHandler (Preprocessor *owr)
	Default constructor.
virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.
virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.
Public Member Functions inherited from XC::PreprocessorContainer
	PreprocessorContainer (Preprocessor *owr)
	Default constructor.
const Domain *	getDomain (void) const
	Returns the domain.
Domain *	getDomain (void)
	Returns the domain.
Preprocessor *	getPreprocessor (void)
	Returns a pointer to the object preprocessor.
const Preprocessor *	getPreprocessor (void) const
	Returns a pointer to the object preprocessor.
void	checkPreprocessor (void)
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...
	MovableObject (int classTag)
	Constructor. More...
	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.
MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.
int	getClassTag (void) const
	Return the class identifier.
int	getDbTag (void) const
	Return the object identifier in the database.
int	getDbTag (CommParameters &)
	Return the object identifier in the database.
void	setDbTag (int dbTag)
	Sets the object identifier in the database.
void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value param to the parameter argv.
virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by parameterID with info.
virtual int	activateParameter (int parameterID)
	Activates the parameter identified by parameterID.
virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by var.
virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by var.
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
SFreedom_Constraint *	addSFreedom_Constraint (const int &, const SFreedom_Constraint &)
	Appends a single freedom constraint to the model.
SFreedom_Constraint *	addSFreedom_Constraint (const int &, const int &, const double &)
	Appends a single freedom constraint to the model.

Friends
class	Node
class	SetMeshComp

Detailed Description

Constraint cration tools.

Member Function Documentation

newEqualDOF()

XC::MFreedom_Constraint * XC::BoundaryCondHandler::newEqualDOF	(	const int &	masterNode,
		const int &	slaveNode,
		const ID &	dofs
	)

Imposes the same displacements on both nodes for the components specified in the argument.

Parameters

masterNode	tag of the master node.
slaveNode	tag of the slave node.
dofs	degrees of freedom to impose the constraint on.

---

The documentation for this class was generated from the following files:

• src/preprocessor/prep_handlers/BoundaryCondHandler.h
• src/preprocessor/prep_handlers/BoundaryCondHandler.cc
