Base class for band general matrix distributed systems of equations. More...

#include <DistributedBandGenLinSOE.h>

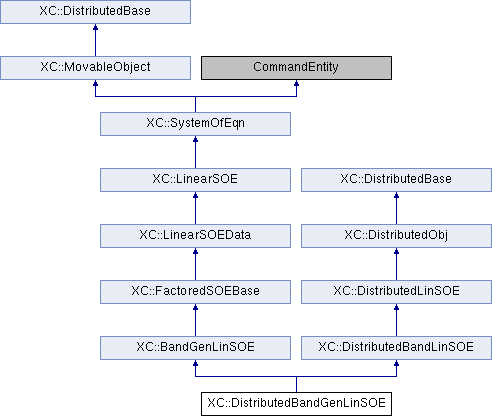

Inheritance diagram for XC::DistributedBandGenLinSOE:

Public Member Functions
int	setSize (Graph &theGraph)
	Compute the size of the system from the graph. More...

int	addA (const Matrix &, const ID &, double fact=1.0)
	Assembles fact times the matrix m into the matrix A. More...

int	addB (const Vector &, const ID &, const double &fact=1.0)
	assemblies v multiplied by factor into vector B. More...

int	setB (const Vector &, const double &fact=1.0)
	Sets B= v*fact. More...

Vector &	getB (void)
	Returns the Vector object created for $b$.

const Vector &	getB (void) const
	Returns the Vector object created for $b$.

int	solve (void)
	Computes the solution of the system of equations. More...

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::BandGenLinSOE
virtual void	zeroA (void)
	Zeros the entries in the 1d array for $A$ and marks the system as not having been factored. More...

Public Member Functions inherited from XC::LinearSOEData
virtual int	getNumEqn (void) const
	Return the current size of the system.

virtual void	zeroB (void)
	Zeros the entries in the 1d array for $b$.

virtual void	zeroX (void)
	Zeros the entries in the 1d array for $x$.

virtual void	zero (void)
	Zeros the entries in the 1d array for $x$ and $b$.

virtual int	addB (const Vector &, const double &fact=1.0)
	add v multiplied by factor to vector B. More...

virtual void	setX (int loc, double value)
	If `loc` is within the range of $x$, sets $x(loc) = value$.

virtual void	setX (const Vector &x)
	Assigns $x$.

virtual const Vector &	getX (void) const
	Returns the Vector object created for $x$.

virtual Vector &	getX (void)
	Returns the Vector object created for $x$.

virtual double	normRHS (void) const
	Returns the 2-norm of the vector $x$.

void	receiveB (const CommParameters &)

void	receiveX (const CommParameters &)

void	receiveBX (const CommParameters &)

void	sendB (CommParameters &) const

void	sendBX (CommParameters &) const

Public Member Functions inherited from XC::LinearSOE
virtual	~LinearSOE (void)
	Destructor.

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

LinearSOESolver *	getSolver (void)
	Returns a pointer to the solver.

LinearSOESolver &	newSolver (const std::string &)

Public Member Functions inherited from XC::SystemOfEqn
int	checkSize (Graph &theGraph) const
	Check number of DOFs in the graph.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Public Member Functions inherited from XC::DistributedLinSOE
int	setChannels (const ChannelQueue &)

Public Member Functions inherited from XC::DistributedObj
	DistributedObj (const ChannelQueue &theC)

bool	buscaCanal (const CommParameters &, int &)

int	setProcessID (int processTag)

int	setChannels (const ChannelQueue &theChannels)

Protected Member Functions
void	calcBand (Graph &)
	Compute the values of numSubD y numSuperD.

	DistributedBandGenLinSOE (AnalysisAggregation *)
	Constructor.

SystemOfEqn *	getCopy (void) const
	Virtual constructor.

Protected Member Functions inherited from XC::BandGenLinSOE
virtual bool	setSolver (LinearSOESolver *)
	Sets the solver. More...

	BandGenLinSOE (AnalysisAggregation *)
	Constructor. More...

	BandGenLinSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

	BandGenLinSOE (AnalysisAggregation , int N, int numSuperDiagonals, int numSubDiagonal, BandGenLinSolver theSolver=nullptr)
	Constructor. More...

Protected Member Functions inherited from XC::FactoredSOEBase
	FactoredSOEBase (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOEData
void	inic (const size_t &)
	1d arrays containing coefficients of B and X More...

const double &	getB (const size_t &i) const

double &	getB (const size_t &i)

const double &	getX (const size_t &i) const

double &	getX (const size_t &i)

double *	getPtrB (void)

const double *	getPtrB (void) const

double *	getPtrX (void)

const double *	getPtrX (void) const

	LinearSOEData (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOE
int	setSolverSize (void)
	invoke setSize() on the Solver

	LinearSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::SystemOfEqn
virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a const pointer to the analysis model.

	SystemOfEqn (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::DistributedBandLinSOE
void	setupMyB (const std::size_t &, const std::size_t &)

int	addB (const int &size, const Vector &, const ID &, const double &)

int	setB (const int &size, const Vector &, const double &)

void	zeroB (void)

int	sendBArecvBX (LinearSOEData &, const bool &, double *, const int &, ID &)

int	recvBAsendBX (FactoredSOEBase &) const

int	sendResultsBack (FactoredSOEBase &, ID &)

int	recvXA (FactoredSOEBase &, const bool &, double *A, const int &, ID &)

	DistributedBandLinSOE (void)
	Default constructor.

Protected Member Functions inherited from XC::DistributedLinSOE
int	sendGraph (Graph &, ID &)
	Collect graph, send it off, vector back containing size of system, etc. More...

int	getSubGraphs (Graph &)
	From each distributed SOE recv it's graph and merge them into master graph.

int	sendSizeData (const ID &)
	To each distributed SOE send the size data and merge them into master graph.

void	calcLocalMap (const int &)

int	getSendID (CommParameters &)

int	send (CommParameters &)

int	receive (const CommParameters &)

	DistributedLinSOE (void)
	Default constructor.

Friends
class	AnalysisAggregation

class	BandGenLinLapackSolver

Additional Inherited Members
Protected Attributes inherited from XC::BandGenLinSOE
int	numSuperD

int	numSubD

Vector	A

Protected Attributes inherited from XC::FactoredSOEBase
bool	factored
	True if the system is factored.

Protected Attributes inherited from XC::LinearSOEData
int	size

Vector	B
	order of A

Vector	X

Protected Attributes inherited from XC::DistributedBandLinSOE
std::vector< double >	workArea

std::vector< double >	myB

Vector	myVectB

Protected Attributes inherited from XC::DistributedLinSOE
std::vector< ID >	localCol

Protected Attributes inherited from XC::DistributedObj
int	processID

ChannelQueue	theChannels

Detailed Description

Base class for band general matrix distributed systems of equations.

Member Function Documentation

§ addA()

int XC::DistributedBandGenLinSOE::addA	(	const Matrix &	m,
		const ID &	id,
		double	fact = `1.0`
	)

virtual

Assembles fact times the matrix m into the matrix A.

First tests that loc and M are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then assembles fact times the Matrix {M} into the matrix $A$. The Matrix is assembled into $A$ at the locations given by the ID object loc, i.e. $a_{loc(i),loc(j)} += //! fact * M(i,j)$. If the location specified is outside the range, i.e. $(-1,-1)$ the corresponding entry in M is not added to $A$. If fact is equal to $0.0$ or $1.0$, more efficient steps are performed. Returns $0$.

Parameters

m	matrix to assemble.
id	row identifiers.
fact	factor.

Reimplemented from XC::BandGenLinSOE.

§ addB()

int XC::DistributedBandGenLinSOE::addB	(	const Vector &	v,
		const ID &	id,
		const double &	fact = `1.0`
	)

virtual

assemblies v multiplied by factor into vector B.

First tests that loc and V are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then assembles fact times the Vector V into the vector $b$. The Vector is assembled into $b$ at the locations given by the ID object loc, i.e. $b_{loc(i)} += fact * V(i)$. If a location specified is outside the range, e.g. $-1$, the corresponding entry in V is not added to $b$. If fact is equal to $0.0$, $1.0$ or $-1.0$, more efficient steps are performed. Returns $0$.

Parameters

v	vector to add.
id	row indexes.
fact	factor that multiplies v.

Reimplemented from XC::LinearSOEData.

§ recvSelf()

int XC::DistributedBandGenLinSOE::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Reimplemented from XC::BandGenLinSOE.

§ sendSelf()

int XC::DistributedBandGenLinSOE::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Reimplemented from XC::BandGenLinSOE.

§ setB()

int XC::DistributedBandGenLinSOE::setB	(	const Vector &	v,
		const double &	fact = `1.0`
	)

virtual

Sets B= v*fact.

First tests that V and the size of the system are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then sets the vector b to be fact times the Vector V. If fact is equal to $0.0$, $1.0$ or $-1.0$, more efficient steps are performed. Returns $0$.

Parameters

v	vector to add.
fact	factor that multiplies v.

??? LCPT (must not set B to 0?).

Reimplemented from XC::LinearSOEData.

§ setSize()

int XC::DistributedBandGenLinSOE::setSize ( Graph & theGraph )

virtual

Compute the size of the system from the graph.

The size of the system is determined by looking at the adjacency ID of each Vertex in the Graph object G. This is done by first setting kl and ku equal to $0$ and then checking for each Vertex in G, whether any of the vertex tags in the Vertices adjacency ID results in kl or ku being increased. Knowing kl, ku and the size of the system (the number of Vertices in G), a check to see if the previously allocated 1d arrays for $A$, $x$ and $b$ are large enough. If the memory portions allocated for the 1d arrays are not big enough, the old space is returned to the heap and new space is allocated from the heap. Prints a warning message if not enough memory is available on the heap for the 1d arrays and returns a $-1$. If memory is available, the components of the arrays are zeroed and $A$ is marked as being unfactored. If the system size has increased, new Vector objects for $x$ and $b$ using the {(do//! uble*,int)} Vector constructor are created. Finally, the result of invoking setSize() on the associated Solver object is returned.

Reimplemented from XC::BandGenLinSOE.

§ solve()

int XC::DistributedBandGenLinSOE::solve ( void )

virtual

Computes the solution of the system of equations.

Causes the SystemOfEqn object to invoke solve() on the currently associated solver object. Returns a $0$ if successful, negative number if not; the actual value depending on the LinearSOESolver. To solve a linear system of equations means to find $x$ such that the equation $Ax=b$ is satisfied.

Reimplemented from XC::LinearSOE.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/bandGEN/DistributedBandGenLinSOE.h
src/solution/system_of_eqn/linearSOE/bandGEN/DistributedBandGenLinSOE.cpp
