Data (size, arrays,...) for linear system of equations. More...

#include <LinearSOEData.h>

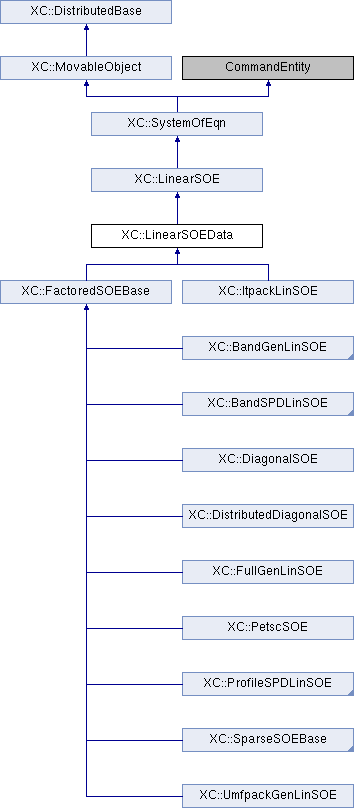

Inheritance diagram for XC::LinearSOEData:

Public Member Functions
virtual int	getNumEqn (void) const
	Return the current size of the system.

virtual void	zeroB (void)
	Zeros the entries in the 1d array for $b$.

virtual void	zeroX (void)
	Zeros the entries in the 1d array for $x$.

virtual void	zero (void)
	Zeros the entries in the 1d array for $x$ and $b$.

virtual int	addB (const Vector &, const double &fact=1.0)
	add v multiplied by factor to vector B. More...

virtual int	addB (const Vector &, const ID &, const double &fact=1.0)
	assemblies v multiplied by factor into vector B. More...

virtual int	setB (const XC::Vector &v, const double &fact=1.0)
	Sets B= v*fact. More...

virtual void	setX (int loc, double value)
	If `loc` is within the range of $x$, sets $x(loc) = value$.

virtual void	setX (const Vector &x)
	Assigns $x$.

virtual const Vector &	getX (void) const
	Returns the Vector object created for $x$.

virtual Vector &	getX (void)
	Returns the Vector object created for $x$.

virtual const Vector &	getB (void) const
	Returns the Vector object created for $b$.

virtual Vector &	getB (void)
	Returns the Vector object created for $b$.

virtual double	normRHS (void) const
	Returns the 2-norm of the vector $x$.

void	receiveB (const CommParameters &)

void	receiveX (const CommParameters &)

void	receiveBX (const CommParameters &)

void	sendB (CommParameters &) const

void	sendBX (CommParameters &) const

Public Member Functions inherited from XC::LinearSOE
virtual	~LinearSOE (void)
	Destructor.

virtual int	solve (void)
	Computes the solution of the system of equations. More...

virtual int	setSize (Graph &theGraph)=0
	Determines and sets the size of the system. More...

virtual int	addA (const Matrix &M, const ID &loc, double fact=1.0)=0
	The LinearSOE object assembles `fact` times the Matrix `M` into the matrix $A$. More...

virtual void	zeroA (void)=0
	To zero the matrix $A$, i.e. set all the components of $A$ to $0$.

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

LinearSOESolver *	getSolver (void)
	Returns a pointer to the solver.

LinearSOESolver &	newSolver (const std::string &)

Public Member Functions inherited from XC::SystemOfEqn
int	checkSize (Graph &theGraph) const
	Check number of DOFs in the graph.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	inic (const size_t &)
	1d arrays containing coefficients of B and X More...

const double &	getB (const size_t &i) const

double &	getB (const size_t &i)

const double &	getX (const size_t &i) const

double &	getX (const size_t &i)

double *	getPtrB (void)

const double *	getPtrB (void) const

double *	getPtrX (void)

const double *	getPtrX (void) const

	LinearSOEData (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOE
virtual bool	setSolver (LinearSOESolver *)
	Sets the solver for the system of equations. More...

int	setSolverSize (void)
	invoke setSize() on the Solver

	LinearSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::SystemOfEqn
virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a const pointer to the analysis model.

	SystemOfEqn (AnalysisAggregation *, int classTag)
	Constructor. More...

virtual SystemOfEqn *	getCopy (void) const =0
	Virtual constructor.

Protected Attributes
int	size

Vector	B
	order of A

Vector	X

Detailed Description

Data (size, arrays,...) for linear system of equations.

Constructor & Destructor Documentation

§ LinearSOEData()

XC::LinearSOEData::LinearSOEData	(	AnalysisAggregation *	owr,
		int	classTag,
		int	N = `0`
	)

protected

Constructor.

Parameters

owr	analysis aggregation that owns this object.
classTag	identifier of the class.
N	size of the system.

Member Function Documentation

§ addB() [1/2]

int XC::LinearSOEData::addB	(	const Vector &	v,
		const double &	fact = `1.0`
	)

virtual

add v multiplied by factor to vector B.

Parameters

v	vector to add.
fact	factor that multiplies v.

§ addB() [2/2]

int XC::LinearSOEData::addB	(	const Vector &	v,
		const ID &	id,
		const double &	fact = `1.0`
	)

virtual

assemblies v multiplied by factor into vector B.

First tests that loc and V are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then assembles fact times the Vector V into the vector $b$. The Vector is assembled into $b$ at the locations given by the ID object loc, i.e. $b_{loc(i)} += fact * V(i)$. If a location specified is outside the range, e.g. $-1$, the corresponding entry in V is not added to $b$. If fact is equal to $0.0$, $1.0$ or $-1.0$, more efficient steps are performed. Returns $0$.

Parameters

v	vector to add.
id	row indexes.
fact	factor that multiplies v.

Implements XC::LinearSOE.

Reimplemented in XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, XC::DistributedProfileSPDLinSOE, and XC::SymSparseLinSOE.

§ inic()

void XC::LinearSOEData::inic ( const size_t & sz )

protected

1d arrays containing coefficients of B and X

Initializes storage.

§ setB()

int XC::LinearSOEData::setB	(	const XC::Vector &	v,
		const double &	fact = `1.0`
	)

virtual

Sets B= v*fact.

First tests that V and the size of the system are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then sets the vector b to be fact times the Vector V. If fact is equal to $0.0$, $1.0$ or $-1.0$, more efficient steps are performed. Returns $0$.

Parameters

v	vector to add.
fact	factor that multiplies v.

??? LCPT (must not set B to 0?).

Implements XC::LinearSOE.

Reimplemented in XC::DistributedBandGenLinSOE, XC::DistributedSparseGenColLinSOE, XC::DistributedBandSPDLinSOE, and XC::DistributedProfileSPDLinSOE.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/LinearSOEData.h
src/solution/system_of_eqn/linearSOE/LinearSOEData.cc
