used to solve a system of equations and to do static condensation operations on the linear system of equations. More...

#include <DomainSolver.h>

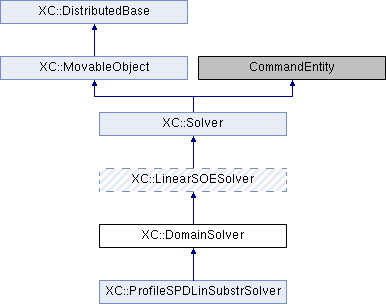

Inheritance diagram for XC::DomainSolver:

Public Member Functions
virtual int	condenseA (int numInt)=0
	Causes the condenser to form \(A_{ee}^* = A_{ee} -A_{ei} A_{ii}^{-1} A_{ie}\), where \(A_{ii}\) is the first `numInt` rows of the \(A\) matrix. More...

virtual int	condenseRHS (int numInt, Vector *u=nullptr)=0
	Causes the condenser to form \(B_e^* = B_e - A_{ei} A_{ii}^{-1} B_i\), where \(A_{ii}\) is the first `numInt` rows of \(A\). More...

virtual int	computeCondensedMatVect (int numInt, const Vector &u)=0
	Causes the condenser to form \(A_{ee} u\).

virtual const Matrix &	getCondensedA (void)=0
	Returns the contents of \(A_{ee}\) as a matrix.

virtual const Vector &	getCondensedRHS (void)=0
	Returns the contents of \(B_e\) as a Vector.

virtual const Vector &	getCondensedMatVect (void)=0
	Returns the contents of the last call to {computeCondensedMatVect()}. More...

virtual int	setComputedXext (const Vector &)=0
	Sets the computed value of the unknowns in \(X_e\) corresponding to the external equations to `u`. More...

virtual int	solveXint (void)=0
	To compute the internal equation numbers \(X_i\) given the value set for the external equations in the last call to setComputedXext(). More...

Public Member Functions inherited from XC::LinearSOESolver
virtual	~LinearSOESolver (void)
	Destructor.

virtual int	setSize (void)=0
	Sets the number of equations. More...

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

Public Member Functions inherited from XC::Solver
virtual int	solve (void)=0
	Causes the solver to compute the solution of the system of equations. More...

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
	DomainSolver (int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOESolver
	LinearSOESolver (int classTag=0)
	Constructor. More...

virtual LinearSOESolver *	getCopy (void) const =0
	Virtual constructor.

virtual bool	setLinearSOE (LinearSOE *theSOE)=0
	Sets the systems of equations to solve.

Protected Member Functions inherited from XC::Solver
	Solver (int classTag)
	Constructor. More...

Detailed Description

used to solve a system of equations and to do static condensation operations on the linear system of equations.

DomainSolver objects are responsible for performing the numerical operations required for the domain decomposition methods.

Constructor & Destructor Documentation

§ DomainSolver()

XC::DomainSolver::DomainSolver ( int classTag )

protected

Constructor.

Parameters

classTag identifier of the class.

Member Function Documentation

§ condenseA()

virtual int XC::DomainSolver::condenseA ( int numInt )

pure virtual

Causes the condenser to form \(A_{ee}^* = A_{ee} -A_{ei} A_{ii}^{-1} A_{ie}\), where \(A_{ii}\) is the first numInt rows of the \(A\) matrix.

The original \(A\) is changed as a result. \(A_{ee}^*\) is to be stored in \(A_{ee}\).

Implemented in XC::ProfileSPDLinSubstrSolver.

§ condenseRHS()

virtual int XC::DomainSolver::condenseRHS	(	int	numInt,
		Vector *	u = `nullptr`
	)

pure virtual

Causes the condenser to form \(B_e^* = B_e - A_{ei} A_{ii}^{-1} B_i\), where \(A_{ii}\) is the first numInt rows of \(A\).

The original \(B\) is changed as a result. \(B_e^*\) is to be stored in \(B_e\).

Implemented in XC::ProfileSPDLinSubstrSolver.

§ getCondensedMatVect()

virtual const Vector& XC::DomainSolver::getCondensedMatVect ( void )

pure virtual

Returns the contents of the last call to {computeCondensedMatVect()}.

Implemented in XC::ProfileSPDLinSubstrSolver.

§ setComputedXext()

virtual int XC::DomainSolver::setComputedXext ( const Vector & )

pure virtual

Sets the computed value of the unknowns in \(X_e\) corresponding to the external equations to u.

The number of external equations is given by the size of vector \(u\).

Implemented in XC::ProfileSPDLinSubstrSolver.

§ solveXint()

virtual int XC::DomainSolver::solveXint ( void )

pure virtual

To compute the internal equation numbers \(X_i\) given the value set for the external equations in the last call to setComputedXext().

Implemented in XC::ProfileSPDLinSubstrSolver.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/DomainSolver.h
src/solution/system_of_eqn/linearSOE/DomainSolver.cpp
