??. More...
#include <DrainClough1Material.h>

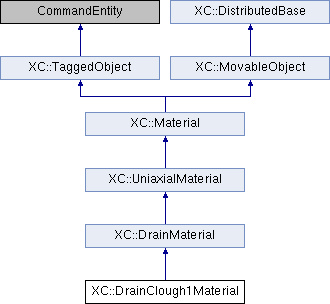

Inheritance diagram for XC::DrainClough1Material:
Public Member Functions | |
| DrainClough1Material (int tag, double E, double fyp, double fyn, double alpha, double ecaps, double ecapk, double ecapa, double ecapd, double cs, double ck, double ca, double cd, double capSlope, double capDispP, double capDispN, double res, double beto=0.0) | |
| DrainClough1Material (int tag, const Vector &input, double beto=0.0) | |
| DrainClough1Material (int tag) | |
| Constructor. | |
| int | revertToStart (void) |
| UniaxialMaterial * | getCopy (void) const |
| Virtual constructor. | |
 Public Member Functions inherited from XC::DrainMaterial | |
| DrainMaterial (int tag, int classTag, int numHV, int numData, double beto=0.0) | |
| virtual int | setTrialStrain (double strain, double strainRate=0.0) |
| Sets the value of the trial strain. More... | |
| virtual int | setTrial (double strain, double &stress, double &tangent, double strainRate=0.0) |
| virtual double | getStrain (void) const |
| virtual double | getStrainRate (void) const |
| default operation for strain rate is zero | |
| virtual double | getStress (void) const |
| Return the current value of stress. | |
| virtual double | getTangent (void) const |
| Return the current value of the tangent for the trial strain. | |
| virtual double | getDampTangent (void) const |
| default operation for damping tangent is zero | |
| virtual double | getInitialTangent (void) const |
| virtual int | commitState (void) |
| virtual int | revertToLastCommit (void) |
| virtual int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| virtual int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| virtual void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::UniaxialMaterial | |
| UniaxialMaterial (int tag, int classTag) | |
| Constructor. More... | |
| virtual int | setInitialStrain (double strain) |
| Sets the initial strain value. | |
| virtual double | getInitialStrain (void) const |
| Return the initial strain. | |
| const Vector & | getGeneralizedStress (void) const |
| Return the generalized stress. | |
| const Vector & | getGeneralizedStrain (void) const |
| Return the generalized strain. | |
| virtual void | setInitialGeneralizedStrain (const Vector &) |
| Sets the initial generalized strain to the value being passed as parameter. | |
| const Vector & | getInitialGeneralizedStrain (void) const |
| virtual double | getSecant (void) const |
| Return secant secant stiffness of the material. | |
| virtual double | getFlexibility (void) const |
| Return the inverse of stiffness matrix. | |
| virtual double | getInitialFlexibility (void) const |
| Return the inverse of stiffness matrix inicial. | |
| virtual double | getRho (void) const |
| Return the material density. | |
| void | setRho (const double &) |
| Assigns la material density. | |
| virtual UniaxialMaterial * | getCopy (SectionForceDeformation *s) const |
| Virtual constructor. | |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &matInformation) |
| virtual int | getResponse (int responseID, Information &matInformation) |
| Returns material response. | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual double | getStressSensitivity (int gradNumber, bool conditional) |
| virtual double | getStrainSensitivity (int gradNumber) |
| virtual double | getInitialTangentSensitivity (int gradNumber) |
| virtual double | getDampTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (double strainGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Additional Inherited Members | |
| Protected Member Functions inherited from XC::DrainMaterial | |
| virtual int | invokeSubroutine (void) |
| int | sendData (CommParameters &) |
| Send its members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives its members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::UniaxialMaterial | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
| Protected Attributes inherited from XC::DrainMaterial | |
| std::vector< double > | matParams |
| Material parameters array. | |
| std::vector< double > | hstv |
| History array: first half is committed, second half is trial. | |
| int | numData |
| Number of material parameters. | |
| int | numHstv |
| Number of history variables. | |
| double | epsilonP |
| Committed strain. | |
| double | sigmaP |
| Committed stress. | |
| double | tangentP |
| Committed tangent. | |
| double | beto |
| Stiffness proportional damping factor. | |
| double | initialTangent |
| initial tangent | |
Detailed Description
??.
The documentation for this class was generated from the following files:
- src/material/uniaxial/drain/DrainClough1Material.h
- src/material/uniaxial/drain/DrainClough1Material.cpp
