Base class for elastic plate materials. More...
#include <ElasticPlateBase.h>

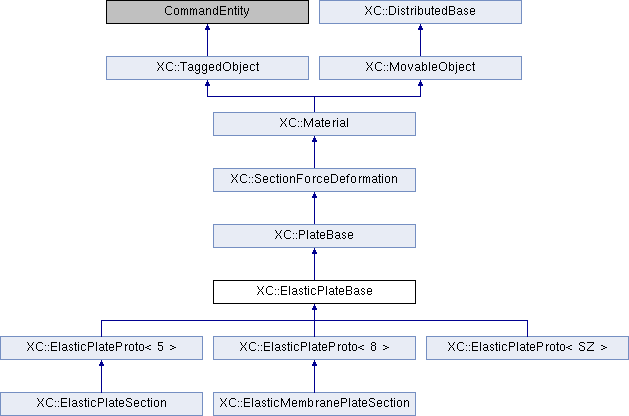

Inheritance diagram for XC::ElasticPlateBase:
Public Member Functions | |
| ElasticPlateBase (int tag, int classTag) | |
| Constructor. | |
| ElasticPlateBase (int classTag) | |
| Null constructor. | |
| ElasticPlateBase (int tag, int classTag, double E, double nu, double h) | |
| Constructor. | |
| int | commitState (void) |
| swap history variables | |
| int | revertToLastCommit (void) |
| revert to last saved state | |
| int | revertToStart (void) |
| revert to start | |
| double | getE (void) const |
| void | setE (const double &d) |
| double | getnu (void) const |
| void | setnu (const double &d) |
| double | membraneModulus (void) const |
| double | shearModulus (void) const |
| double | bendingModulus (void) const |
 Public Member Functions inherited from XC::PlateBase | |
| PlateBase (int tag, int classTag) | |
| Constructor. | |
| PlateBase (int classTag) | |
| null constructor | |
| PlateBase (int tag, int classTag, double h) | |
| full constructor | |
| double | getStrain (const double &y, const double &z) const |
| Returns strain at position being passed as parameter. | |
| double | getH (void) const |
| void | setH (const double &d) |
| Public Member Functions inherited from XC::SectionForceDeformation | |
| SectionForceDeformation (int tag, int classTag, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. More... | |
| SectionForceDeformation (const SectionForceDeformation &) | |
| Copy constructor. | |
| SectionForceDeformation & | operator= (const SectionForceDeformation &) |
| Assignment operator. | |
| virtual | ~SectionForceDeformation (void) |
| Destructor. | |
| MaterialHandler * | getMaterialHandler (void) |
| virtual void | zeroInitialSectionDeformation (void)=0 |
| virtual int | setInitialSectionDeformation (const Vector &)=0 |
| virtual int | addInitialSectionDeformation (const Vector &) |
| Adds to the generalized strains vector inicial el being passed as parameter. More... | |
| void | setInitialGeneralizedStrain (const Vector &iS) |
| const Vector & | getInitialGeneralizedStrain (void) const |
| virtual int | setTrialSectionDeformation (const Vector &)=0 |
| Set the value of the trial section deformation vector, \(esec\) to be {def}. More... | |
| virtual const Vector & | getInitialSectionDeformation (void) const =0 |
| virtual const Vector & | getSectionDeformation (void) const =0 |
| Return the trial section deformation vector, \(esec\). | |
| double | getSectionDeformation (const int &) const |
| Returns 'defID' component of the generalized strain vector. | |
| double | getSectionDeformationByName (const std::string &) const |
| Returns section's trial deformation component by its name. | |
| virtual const Vector & | getStressResultant (void) const =0 |
| Return the section resisting forces, \(ssec\), at the current trial state. More... | |
| double | getStressResultant (const int &) const |
| Returns 'defID' component of the generalized stress vector. | |
| double | getStressResultantByName (const std::string &) const |
| Returns the esfuerzos de la placa. | |
| virtual const Matrix & | getSectionTangent (void) const =0 |
| Return the section tangent stiffness matrix, \(ksec\), at the current trial state. More... | |
| virtual const Matrix & | getInitialTangent (void) const =0 |
| virtual const Matrix & | getSectionFlexibility (void) const |
| Returns the tangent flexibility matrix of the section. More... | |
| virtual const Matrix & | getInitialFlexibility (void) const |
| Returns the initial flexibility matrix of the section. | |
| const Vector & | getGeneralizedStress (void) const |
| virtual const Vector & | getGeneralizedStrain (void) const |
| virtual double | getRho (void) const |
| Returns the density (mass per unit length/area/volume) of the section. More... | |
| virtual SectionForceDeformation * | getCopy (void) const =0 |
| Virtual constructor. | |
| virtual const ResponseId & | getType (void) const =0 |
| Return the ordering and type of response quantities returned by this object. More... | |
| std::string | getTypeString (void) const |
| Comma separated internal forces names to with the section contributes with stiffness. | |
| virtual int | getOrder (void) const =0 |
| Return the number of response quantities provided by the section. | |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &info) |
| Returns the respuesta of the section. | |
| virtual int | getResponse (int responseID, Information &info) |
| Returns section response. | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual const Vector & | getStressResultantSensitivity (int gradNumber, bool conditional) |
| virtual const Vector & | getSectionDeformationSensitivity (int gradNumber) |
| virtual const Matrix & | getSectionTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (const Vector §ionDeformationGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| virtual void | Print (std::ostream &, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | sendSelf (CommParameters &cp)=0 |
| Send the object. More... | |
| virtual int | recvSelf (const CommParameters &cp)=0 |
| Receive the object. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &cp) |
| Send data through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receive data through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::SectionForceDeformation | |
| int | sendData (CommParameters &cp) |
| Send object members through the channel defined in cp. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel defined in cp. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Protected Attributes | |
| double | E |
| elastic modulus | |
| double | nu |
| poisson ratio | |
| Protected Attributes inherited from XC::PlateBase | |
| double | h |
| plate thickness | |
| Protected Attributes inherited from XC::SectionForceDeformation | |
| Matrix * | fDefault |
| Default flexibility matrix. | |
| MaterialHandler * | material_handler |
| Material definition handler (search,...). | |
Static Protected Attributes | |
| static const double | five6 = 5.0/6.0 |
Detailed Description
Base class for elastic plate materials.
The documentation for this class was generated from the following files:
- src/material/section/plate_section/ElasticPlateBase.h
- src/material/section/plate_section/ElasticPlateBase.cc
