Base class for cross sections with linear elastic material and shear stiffness on a three-dimensional space (6 degrees of freedom in each section). More...
#include <ElasticShearSection3d.h>

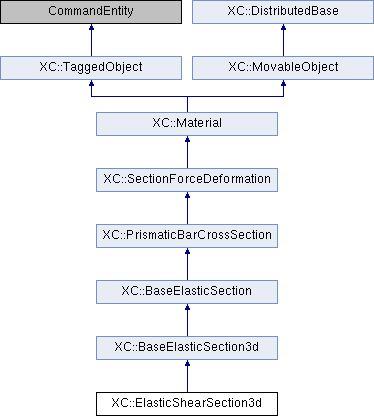

Inheritance diagram for XC::ElasticShearSection3d:
Public Member Functions | |
| ElasticShearSection3d (int tag, MaterialHandler *mat_ldr=nullptr) | |
| const char * | getClassType (void) const |
| const Vector & | getStressResultant (void) const |
| Return the section resisting forces, \(ssec\), at the current trial state. More... | |
| const Matrix & | getSectionTangent (void) const |
| Return the section tangent stiffness matrix, \(ksec\), at the current trial state. More... | |
| const Matrix & | getInitialTangent (void) const |
| const Matrix & | getSectionFlexibility (void) const |
| Returns the tangent flexibility matrix of the section. More... | |
| const Matrix & | getInitialFlexibility (void) const |
| Returns the initial flexibility matrix of the section. | |
| SectionForceDeformation * | getCopy (void) const |
| Virtual constructor. | |
| const ResponseId & | getType (void) const |
| Return the ordering and type of response quantities returned by this object. More... | |
| int | getOrder (void) const |
| Return the number of response quantities provided by the section. | |
| int | sendSelf (CommParameters &) |
| Send the object. More... | |
| int | recvSelf (const CommParameters &) |
| Receive the object. More... | |
| void | Print (std::ostream &s, int flag=0) const |
| int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| const Vector & | getStressResultantSensitivity (int gradIndex, bool conditional) |
| const Matrix & | getInitialTangentSensitivity (int gradIndex) |
 Public Member Functions inherited from XC::BaseElasticSection3d | |
| BaseElasticSection3d (int tag, int classTag, const size_t &dim, const CrossSectionProperties3d &ctes, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. More... | |
| BaseElasticSection3d (int tag, int classTag, const size_t &dim, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. More... | |
| const CrossSectionProperties3d & | getCrossSectionProperties (void) const |
| Returns the mass properties of the section. | |
| void | setCrossSectionProperties (const CrossSectionProperties3d &) |
| Setst the mass properties of the section. | |
| void | sectionGeometry (const std::string &) |
| Set the mass properties of the section from the section geometry identified by the argument. More... | |
| double | getStrain (const double &y, const double &z) const |
| Returns strain at position being passed as parameter. | |
| void | Print (std::ostream &s, int flag=0) const |
| Public Member Functions inherited from XC::BaseElasticSection | |
| BaseElasticSection (int tag, int classTag, const size_t &dim, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. More... | |
| int | commitState (void) |
| Commits the section state. | |
| int | revertToLastCommit (void) |
| Revert to the last commited state. | |
| int | revertToStart (void) |
| Revert to the initial state. | |
| int | setInitialSectionDeformation (const Vector &) |
| Set the initial (generalized) deformation of the section. | |
| int | setTrialSectionDeformation (const Vector &) |
| Set the trial (generalized) deformation of the section. More... | |
| void | zeroInitialSectionDeformation (void) |
| const Vector & | getInitialSectionDeformation (void) const |
| const Vector & | getSectionDeformation (void) const |
| Returns the current value of the (generalized) deformation. | |
| void | Print (std::ostream &s, int flag=0) const |
| Printing. | |
| Public Member Functions inherited from XC::PrismaticBarCrossSection | |
| PrismaticBarCrossSection (int tag, int classTag, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. | |
| PrismaticBarCrossSection (const PrismaticBarCrossSection &) | |
| Copy constructor. | |
| PrismaticBarCrossSection & | operator= (const PrismaticBarCrossSection &) |
| Assignment operator. | |
| int | setTrialDeformationPlane (const DeformationPlane &) |
| Sets the deformation plane of the section. | |
| int | setInitialDeformationPlane (const DeformationPlane &) |
| Sets the plane that defines initial strains of the section. | |
| virtual const Vector & | getGeneralizedStrainVector (const DeformationPlane &) const |
| Return the generalized strains vector that corresponds to the deformation plane being passed as parameter. More... | |
| DeformationPlane | getDeformationPlane (void) const |
| Returns the generalized strains vector of the cross-section. | |
| DeformationPlane | getInitialDeformationPlane (void) const |
| Returns initial strain plane. | |
| double | getN (void) const |
| Returns internal axial force. | |
| double | getMy (void) const |
| Returns internal bending moment around y axis. | |
| double | getMz (void) const |
| Returns internal bending moment around z axis. | |
| virtual double | getCenterOfMassY (void) const |
| Returns the coordenada «y» del centro de gravedad of the cross-section. | |
| virtual double | getCenterOfMassZ (void) const |
| Returns the coordenada «z» del centro de gravedad of the cross-section. | |
| Pos2d | getCenterOfMass (void) const |
| Returns the position of the cross-section centroid. | |
| Line2d | getNeutralAxis (void) const |
| Returns the neutral axis. | |
| Line2d | getInternalForcesAxis (void) const |
| Returns the axis that is aligned with the cross-section internal forces. More... | |
| Pos2d | getPointOnTensionedHalfPlane (void) const |
| Returns (if possible) a point in the tensioned region. | |
| Pos2d | getPointOnCompressedHalfPlane (void) const |
| Returns (if possible) a point in the compressed region. | |
| HalfPlane2d | getTensionedHalfPlane (void) const |
| Returns the tensioned half-plane. | |
| HalfPlane2d | getTensionedHalfPlane (const Line2d &) const |
| Returns the tensioned half-plane defined by the edge being passed as parameter. More... | |
| HalfPlane2d | getCompressedHalfPlane (void) const |
| Returns the compressed half-plane. | |
| HalfPlane2d | getCompressedHalfPlane (const Line2d &) const |
| Returns the compressed half-plane defined by the edge being passed as parameter. More... | |
| const double & | EA (void) const |
| Returns the section axial stiffness. | |
| const double & | EIz (void) const |
| Returns the bending stiffness of the cross-section en torno the z axis. | |
| const double & | EIy (void) const |
| Returns the bending stiffness of the cross-section en torno the y axis. | |
| const double & | EIyz (void) const |
| Returns the product of inertia multiplicado por el Young's modulus. More... | |
| double | getTheta (void) const |
| Returns the angle that defines un principal axis of inertia. | |
| double | getEI1 (void) const |
| Returns the bending stiffness around the major principal axis of inertia. More... | |
| double | getEI2 (void) const |
| Returns the bending stiffness en torno al principal axis of inertia menor. More... | |
| PrincipalAxesOfInertia2D | getInertiaAxes (void) const |
| Returns the principal axes of inertia of the cross-section. | |
| Vector2d | getAxis1VDir (void) const |
| Returns the vector of the principal axis I. | |
| Vector2d | getVDirStrongAxis (void) const |
| Returns the vector of the principal axis I. | |
| Vector2d | getAxis2VDir (void) const |
| Returns the vector of the principal axis II. | |
| Vector2d | getVDirWeakAxis (void) const |
| Returns the vector of the principal axis II. | |
| bool | hayAxil (const double &tol=1e-4) const |
| Returns true if the section is subjected to an axial force. | |
| bool | isSubjectedToShear (const double &tol=1e-4) const |
| Returns true if the section is subjected to a shearing force. | |
| bool | isSubjectedToBending (const double &tol=1e-4) const |
| Returns true if the section is subjected to a bending moment. | |
| bool | hayTorsor (const double &tol=1e-4) const |
| Returns true if the section is subjected to a torsional force. | |
| Public Member Functions inherited from XC::SectionForceDeformation | |
| SectionForceDeformation (int tag, int classTag, MaterialHandler *mat_ldr=nullptr) | |
| Constructor. More... | |
| SectionForceDeformation (const SectionForceDeformation &) | |
| Copy constructor. | |
| SectionForceDeformation & | operator= (const SectionForceDeformation &) |
| Assignment operator. | |
| virtual | ~SectionForceDeformation (void) |
| Destructor. | |
| MaterialHandler * | getMaterialHandler (void) |
| virtual int | addInitialSectionDeformation (const Vector &) |
| Adds to the generalized strains vector inicial el being passed as parameter. More... | |
| void | setInitialGeneralizedStrain (const Vector &iS) |
| const Vector & | getInitialGeneralizedStrain (void) const |
| double | getSectionDeformation (const int &) const |
| Returns 'defID' component of the generalized strain vector. | |
| double | getSectionDeformationByName (const std::string &) const |
| Returns section's trial deformation component by its name. | |
| double | getStressResultant (const int &) const |
| Returns 'defID' component of the generalized stress vector. | |
| double | getStressResultantByName (const std::string &) const |
| Returns the esfuerzos de la placa. | |
| const Vector & | getGeneralizedStress (void) const |
| virtual const Vector & | getGeneralizedStrain (void) const |
| virtual double | getRho (void) const |
| Returns the density (mass per unit length/area/volume) of the section. More... | |
| std::string | getTypeString (void) const |
| Comma separated internal forces names to with the section contributes with stiffness. | |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &info) |
| Returns the respuesta of the section. | |
| virtual int | getResponse (int responseID, Information &info) |
| Returns section response. | |
| virtual const Vector & | getSectionDeformationSensitivity (int gradNumber) |
| virtual const Matrix & | getSectionTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (const Vector §ionDeformationGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| virtual void | Print (std::ostream &, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::BaseElasticSection3d | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::BaseElasticSection | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::SectionForceDeformation | |
| int | sendData (CommParameters &cp) |
| Send object members through the channel defined in cp. | |
| int | recvData (const CommParameters &cp) |
| Receives object members through the channel defined in cp. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from XC::BaseElasticSection3d | |
| CrossSectionProperties3d | ctes_scc |
| Mechanical properties of the section. | |
| Protected Attributes inherited from XC::BaseElasticSection | |
| Vector | eTrial |
| section trial deformations | |
| Vector | eInic |
| section initial deformations | |
| Vector | eCommit |
| section commited deformations | |
| Protected Attributes inherited from XC::SectionForceDeformation | |
| Matrix * | fDefault |
| Default flexibility matrix. | |
| MaterialHandler * | material_handler |
| Material definition handler (search,...). | |
Detailed Description
Base class for cross sections with linear elastic material and shear stiffness on a three-dimensional space (6 degrees of freedom in each section).
Member Function Documentation
§ getSectionFlexibility()
|
virtual |
Returns the tangent flexibility matrix of the section.
Obtains the section tangent stiffness matrix, \(ksec\), and returns its inverse, the section flexibility matrix, \(fsec\), via an explicit matrix inversion. NOTE: The explicit matrix inversion provides default behavior and may be overridden in subclasses to suit specific SectionForceDeformation implementations.
Reimplemented from XC::SectionForceDeformation.
§ getSectionTangent()
|
virtual |
Return the section tangent stiffness matrix, \(ksec\), at the current trial state.
Implements XC::SectionForceDeformation.
§ getStressResultant()
|
virtual |
Return the section resisting forces, \(ssec\), at the current trial state.
Implements XC::SectionForceDeformation.
§ getType()
|
virtual |
Return the ordering and type of response quantities returned by this object.
Return the section ResponseId code that indicates the ordering and type of response quantities returned by the section. Lets the calling object (e.g. an Element) know how to interpret the quantites returned by this object.
Implements XC::SectionForceDeformation.
§ recvSelf()
|
virtual |
Receive the object.
Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.
Implements XC::MovableObject.
§ sendSelf()
|
virtual |
Send the object.
Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.
Implements XC::MovableObject.
The documentation for this class was generated from the following files:
- src/material/section/elastic_section/ElasticShearSection3d.h
- src/material/section/elastic_section/ElasticShearSection3d.cpp
