Base class for dense unsymmetric matrix systems of equations. More...

#include <FullGenLinSOE.h>

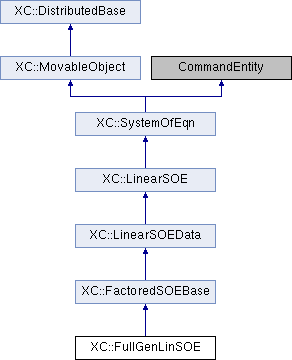

Inheritance diagram for XC::FullGenLinSOE:

Public Member Functions
int	setSize (Graph &theGraph)
	Computes the size of the system from the graph data. More...

int	addA (const Matrix &, const ID &, double fact=1.0)
	Assembles the product of the matrix and the factor on the system matrix. More...

void	zeroA (void)
	Zeros the entries in the 1d array for \(A\) and marks the system as not having been factored. More...

int	sendSelf (CommParameters &)
	Sends objects through the communicator.

int	recvSelf (const CommParameters &)
	Receives objects through the communicator.

Public Member Functions inherited from XC::LinearSOEData
virtual int	getNumEqn (void) const
	Return the current size of the system.

virtual void	zeroB (void)
	Zeros the entries in the 1d array for \(b\).

virtual void	zeroX (void)
	Zeros the entries in the 1d array for \(x\).

virtual void	zero (void)
	Zeros the entries in the 1d array for \(x\) and \(b\).

virtual int	addB (const Vector &, const double &fact=1.0)
	add v multiplied by factor to vector B. More...

virtual int	addB (const Vector &, const ID &, const double &fact=1.0)
	assemblies v multiplied by factor into vector B. More...

virtual int	setB (const XC::Vector &v, const double &fact=1.0)
	Sets B= v*fact. More...

virtual void	setX (int loc, double value)
	If `loc` is within the range of \(x\), sets \(x(loc) = value\).

virtual void	setX (const Vector &x)
	Assigns \(x\).

virtual const Vector &	getX (void) const
	Returns the Vector object created for \(x\).

virtual Vector &	getX (void)
	Returns the Vector object created for \(x\).

virtual const Vector &	getB (void) const
	Returns the Vector object created for \(b\).

virtual Vector &	getB (void)
	Returns the Vector object created for \(b\).

virtual double	normRHS (void) const
	Returns the 2-norm of the vector \(x\).

void	receiveB (const CommParameters &)

void	receiveX (const CommParameters &)

void	receiveBX (const CommParameters &)

void	sendB (CommParameters &) const

void	sendBX (CommParameters &) const

Public Member Functions inherited from XC::LinearSOE
virtual	~LinearSOE (void)
	Destructor.

virtual int	solve (void)
	Computes the solution of the system of equations. More...

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

LinearSOESolver *	getSolver (void)
	Returns a pointer to the solver.

LinearSOESolver &	newSolver (const std::string &)

Public Member Functions inherited from XC::SystemOfEqn
int	checkSize (Graph &theGraph) const
	Check number of DOFs in the graph.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual bool	setSolver (LinearSOESolver *)
	Checks if the solver has a suitable type and then it class its parent setSolver method. More...

	FullGenLinSOE (AnalysisAggregation *)
	Constructor. More...

	FullGenLinSOE (AnalysisAggregation *, int N)
	Constructor. More...

SystemOfEqn *	getCopy (void) const
	Virtual constructor.

Protected Member Functions inherited from XC::FactoredSOEBase
	FactoredSOEBase (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOEData
void	inic (const size_t &)
	1d arrays containing coefficients of B and X More...

const double &	getB (const size_t &i) const

double &	getB (const size_t &i)

const double &	getX (const size_t &i) const

double &	getX (const size_t &i)

double *	getPtrB (void)

const double *	getPtrB (void) const

double *	getPtrX (void)

const double *	getPtrX (void) const

	LinearSOEData (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOE
int	setSolverSize (void)
	invoke setSize() on the Solver

	LinearSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::SystemOfEqn
virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a const pointer to the analysis model.

	SystemOfEqn (AnalysisAggregation *, int classTag)
	Constructor. More...

Friends
class	AnalysisAggregation

class	FEM_ObjectBroker

class	FullGenLinLapackSolver

Additional Inherited Members
Protected Attributes inherited from XC::FactoredSOEBase
bool	factored
	True if the system is factored.

Protected Attributes inherited from XC::LinearSOEData
int	size

Vector	B
	order of A

Vector	X

Detailed Description

Base class for dense unsymmetric matrix systems of equations.

FullGenLinSOE is class which is used to store a full general system. The \(A\) matrix is stored in a 1d double array with \(n*n\) elements, where \(n\) is the size of the system. \(A_{i,j}\) is stored at location \((i + j*(n)\), where \(i\) and \(j\) range from \(0\) to \(n-1\), i.e. C notation. For example when \(n=3\):

\(\) [ {array}{ccc} a_{0,0} & a_{0,1} & a_{0,2} a_{1,0} & a_{1,1} & a_{1,2} a_{2,0} & a_{2,1} & a_{2,2} {array} ] \(\)

is stored in:

\(\) [ {array}{cccccccccccccccccccc} a_{0,0} & a_{1,0} & a_{2,0} & a_{0,1} & a_{1,1} & a_{2,1} & a_{0,2} & a_{1,2} & a_{2,2} {array} ] \(\)

The \(x\) and \(b\) vectors are stored in 1d double arrays of length \(n\). To allow the solvers access to this data, the solvers that use this class are all declared as friend classes.

Constructor & Destructor Documentation

§ FullGenLinSOE() [1/2]

XC::FullGenLinSOE::FullGenLinSOE ( AnalysisAggregation * owr )

protected

Constructor.

Parameters

owr	analysis aggregation that owns this object.

§ FullGenLinSOE() [2/2]

XC::FullGenLinSOE::FullGenLinSOE	(	AnalysisAggregation *	owr,
		int	N
	)

protected

Constructor.

Parameters

owr	analysis aggregation that owns this object.

Member Function Documentation

§ addA()

int XC::FullGenLinSOE::addA	(	const Matrix &	m,
		const ID &	id,
		double	fact = `1.0`
	)

virtual

Assembles the product of the matrix and the factor on the system matrix.

First tests that loc and M are of compatible sizes; if not a warning message is printed and a \(-1\) is returned. The LinearSOE object then assembles fact times the Matrix {M} into the matrix \(A\). The Matrix is assembled into \(A\) at the locations given by the ID object loc, i.e. \(a_{loc(i),loc(j)} += //! fact * M(i,j)\). If the location specified is outside the range, i.e. \((-1,-1)\) the corresponding entry in M is not added to \(A\). If fact is equal to \(0.0\) or \(1.0\), more efficient steps are performed. Returns \(0\).

Implements XC::LinearSOE.

§ setSize()

int XC::FullGenLinSOE::setSize ( Graph & theGraph )

virtual

Computes the size of the system from the graph data.

The size of the system is determined by invoking getNumVertex() on theGraph. If the old space allocated for the 1d arrays is not big enough, it the old space is returned to the heap and new space is allocated from the heap. Prints a warning message, sets size to \(0\) and returns a \(-1\), if not enough memory is available on the heap for the 1d arrays. If memory is available, the components of the arrays are zeroed and \(A\) is marked as being unfactored. If the system size has increased, new Vector objects for \(x\) and \(b\) using the {(double *,int)} Vector constructor are created. Finally, the result of invoking setSize() on the associated Solver object is returned.

Implements XC::LinearSOE.

§ setSolver()

bool XC::FullGenLinSOE::setSolver ( LinearSOESolver * newSolver )

protectedvirtual

Checks if the solver has a suitable type and then it class its parent setSolver method.

Parameters

newSolver solver to use.

Reimplemented from XC::LinearSOE.

§ zeroA()

void XC::FullGenLinSOE::zeroA ( void )

virtual

Zeros the entries in the 1d array for \(A\) and marks the system as not having been factored.

Implements XC::LinearSOE.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/fullGEN/FullGenLinSOE.h
src/solution/system_of_eqn/linearSOE/fullGEN/FullGenLinSOE.cpp
