XC::GenericSectionNd Class Reference

GenericSectionND provides a wrapper around a NDMaterial. More...

#include <GenericSectionNd.h>

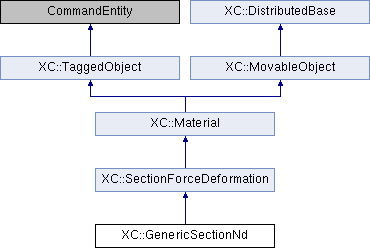

Inheritance diagram for XC::GenericSectionNd:

Public Member Functions
	GenericSectionNd (int tag, const NDMaterial &m, const ResponseId &mCode)
	Constructor. More...
	GenericSectionNd (int tag=0)
	Constructor.
	GenericSectionNd (const GenericSectionNd &)
	Copy constructor.
GenericSectionNd &	operator= (const GenericSectionNd &)
	Assignment operator.
	~GenericSectionNd (void)
	Destructor.
int	setInitialSectionDeformation (const Vector &)
	Set initial generalized strain.
int	setTrialSectionDeformation (const Vector &)
	Set trial generalized strain.
void	zeroInitialSectionDeformation (void)
	Zeroes initial generalized strain.
const Vector &	getInitialSectionDeformation (void) const
	Return the initial generalized strain.
const Vector &	getSectionDeformation (void) const
	Returns material's trial generalized deformation.
double	getStrain (const double &, const double &) const
	Returns strain at position being passed as parameter.
const Vector &	getStressResultant (void) const
	Return the the generalized stress vector.
const Matrix &	getSectionTangent (void) const
	Return the stiffness matrix.
const Matrix &	getInitialTangent (void) const
	Return the initial stiffness matrix.
int	commitState (void)
	Commits the current state.
int	revertToLastCommit (void)
	Returns the material to its last commited state.
int	revertToStart (void)
	Returns the material to its initial state.
SectionForceDeformation *	getCopy (void) const
	Virtual constructor.
const ResponseId &	getType (void) const
	Returns the section ID code that indicates the type of response quantities returned by this instance of GenericSectionND. More...
int	getOrder (void) const
	Returns the result of invoking getOrder() on the NDMaterial.
int	sendSelf (CommParameters &)
	Sends the object.
int	recvSelf (const CommParameters &)
	Receives the object.
void	Print (std::ostream &s, int flag=0)
	Print stuff.
Public Member Functions inherited from XC::SectionForceDeformation
	SectionForceDeformation (int tag, int classTag, MaterialHandler *mat_ldr=nullptr)
	Constructor. More...
	SectionForceDeformation (const SectionForceDeformation &)
	Copy constructor.
SectionForceDeformation &	operator= (const SectionForceDeformation &)
	Assignment operator.
virtual	~SectionForceDeformation (void)
	Destructor.
MaterialHandler *	getMaterialHandler (void)
virtual int	addInitialSectionDeformation (const Vector &)
	Adds to the generalized strains vector inicial el being passed as parameter. More...
void	setInitialGeneralizedStrain (const Vector &iS)
const Vector &	getInitialGeneralizedStrain (void) const
double	getSectionDeformation (const int &) const
	Returns 'defID' component of the generalized strain vector.
double	getSectionDeformationByName (const std::string &) const
	Returns section's trial deformation component by its name.
double	getStressResultant (const int &) const
	Returns 'defID' component of the generalized stress vector.
double	getStressResultantByName (const std::string &) const
	Returns the esfuerzos de la placa.
virtual const Matrix &	getSectionFlexibility (void) const
	Returns the tangent flexibility matrix of the section. More...
virtual const Matrix &	getInitialFlexibility (void) const
	Returns the initial flexibility matrix of the section.
const Vector &	getGeneralizedStress (void) const
virtual const Vector &	getGeneralizedStrain (void) const
virtual double	getRho (void) const
	Returns the density (mass per unit length/area/volume) of the section. More...
std::string	getTypeString (void) const
	Comma separated internal forces names to with the section contributes with stiffness.
virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)
	Returns the respuesta of the section.
virtual int	getResponse (int responseID, Information &info)
	Returns section response.
virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value param to the parameter argv.
virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by parameterID with info.
virtual int	activateParameter (int parameterID)
	Activates the parameter identified by parameterID.
virtual const Vector &	getStressResultantSensitivity (int gradNumber, bool conditional)
virtual const Vector &	getSectionDeformationSensitivity (int gradNumber)
virtual const Matrix &	getSectionTangentSensitivity (int gradNumber)
virtual double	getRhoSensitivity (int gradNumber)
virtual int	commitSensitivity (const Vector &sectionDeformationGradient, int gradNumber, int numGrads)
Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...
const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).
MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).
std::string	getName (void) const
	Returns the name of the material.
virtual int	setVariable (const std::string &argv)
virtual int	getVariable (int variableID, double &info)
virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...
virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...
virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain
Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...
void	assignTag (int newTag)
	Set tag (to be called from Python interface).
int	getTag (void) const
	Returns the tag associated with the object.
Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...
	MovableObject (int classTag)
	Constructor. More...
	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.
MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.
int	getClassTag (void) const
	Return the class identifier.
int	getDbTag (void) const
	Return the object identifier in the database.
int	getDbTag (CommParameters &)
	Return the object identifier in the database.
void	setDbTag (int dbTag)
	Sets the object identifier in the database.
void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...
virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by var.
virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by var.
Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.
virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.
const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.
void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.
void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	free (void)
	Frees memory.
void	alloc (const NDMaterial *, const ResponseId *)
	Allocates memory.
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.
int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter. More...
Protected Member Functions inherited from XC::SectionForceDeformation
int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.
int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.
Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
NDMaterial *	theModel
ResponseId *	code
int	order
Protected Attributes inherited from XC::SectionForceDeformation
Matrix *	fDefault
	Default flexibility matrix.
MaterialHandler *	material_handler
	Material definition handler (search,...).

Detailed Description

GenericSectionND provides a wrapper around a NDMaterial.

GenericSectionND provides a wrapper around a NDMaterial so that any NDMaterial may be used to model section response. The design of this class follows the Object Adapter pattern in {Design Patterns} by Gamma et al.

Constructor & Destructor Documentation

GenericSectionNd()

XC::GenericSectionNd::GenericSectionNd	(	int	tag,
		const NDMaterial &	m,
		const ResponseId &	mCode
	)

Constructor.

Parameters

tag	object identifier.
m	ND material.
mCode	material response identifiers.

Member Function Documentation

getType()

const XC::ResponseId & XC::GenericSectionNd::getType ( void  ) const

virtual

Returns the section ID code that indicates the type of response quantities returned by this instance of GenericSectionND.

Implements XC::SectionForceDeformation.

recvData()

int XC::GenericSectionNd::recvData ( const CommParameters &  cp )

protected

Receives object members through the channel being passed as parameter.

---

The documentation for this class was generated from the following files:

• src/material/section/GenericSectionNd.h
• src/material/section/GenericSectionNd.cpp
