Reinf layer container (list). More...
#include <ListReinfLayer.h>

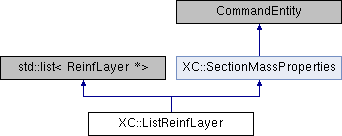

Inheritance diagram for XC::ListReinfLayer:
Public Types | |
| typedef std::list< ReinfLayer * > | l_reg |
| typedef l_reg::reference | reference |
| typedef l_reg::const_reference | const_reference |
| typedef l_reg::iterator | iterator |
| typedef l_reg::const_iterator | const_iterator |
Public Member Functions | |
| ~ListReinfLayer (void) | |
| Destructor. | |
| ReinfLayer * | push_back (const ReinfLayer ®) |
| Adds a rebar layer to the container. | |
| void | clear (void) |
| Erases the reinforcement layers. | |
| const GeomSection * | getGeomSection (void) const |
| Returns a reference to the GeomSection object that owns this one. More... | |
| double | getCover (void) const |
| Returns the minimum value of the bars concrete cover. | |
| StraightReinfLayer * | newStraightReinfLayer (const std::string &) |
| CircReinfLayer * | newCircReinfLayer (const std::string &) |
| SingleBar * | newReinfBar (const std::string &) |
| Returns a single bar with the material with the identifier being passed as parameter. More... | |
| size_t | getNumReinfBars (void) const |
| Returns the número total de celdas. | |
| void | getBarrasIn (const Polygon2d &, ListReinfLayer &, bool) |
| Returns the rebar subset which center lies inside the polygon. More... | |
| void | getBarrasIn (const HalfPlane2d &, ListReinfLayer &, bool) |
| Returns the rebar subset which center lies in the half plane. More... | |
| double | getAreaGrossSection (void) const |
| Returns region's gross section area. | |
| Vector | getCenterOfMassGrossSection (void) const |
| Returns gross section centroid position. | |
| double | getIyGrossSection (void) const |
| Inertia of the gross section about an axis parallel to y through its centroid. | |
| double | getIzGrossSection (void) const |
| Inertia of the gross section about an axis parallel to z through its centroid. | |
| double | getPyzGrossSection (void) const |
| Product of inertia of the gross section about y and z axis through its centroid. | |
| Vector | getCenterOfMassHomogenizedSection (const double &E0) const |
| double | getAreaHomogenizedSection (const double &E0) const |
| Returns the homogenized area of the regions. | |
| double | getIyHomogenizedSection (const double &E0) const |
| Returns homogenized moment of inertia of the cross-section with respecto to the axis parallel to y passing through the centroid. More... | |
| double | getIzHomogenizedSection (const double &E0) const |
| Returns homogenized moment of inertia of the cross-section with respecto to the axis parallel to z passing through the centroid. More... | |
| double | getPyzHomogenizedSection (const double &E0) const |
| Returns homogenized product of inertia of the cross-section with respecto to the axis parallel to y and z passing through the centroid. More... | |
| void | Print (std::ostream &s) const |
 Public Member Functions inherited from XC::SectionMassProperties | |
| SectionMassProperties (CommandEntity *owr=nullptr) | |
| Constructor. | |
| double | getIxGrossSection (void) const |
| Inertia of the gross section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pGrossSection (void) const |
| Agle of the principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_aGrossSection (void) const |
| Direction of a principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_bGrossSection (void) const |
| Direction of the other principal axis of inertia of the gross section with respect of current axis. More... | |
| double | getI1GrossSection (void) const |
| Major principal moment of inertia of the gross section. | |
| double | getI2GrossSection (void) const |
| Minor principal moment of inertia of the gross section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesGrossSection (void) const |
| Principal axis of inertia of the gross section. | |
| Vector2d | getAxis1VDirGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirStrongAxisGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getAxis2VDirGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirWeakAxisGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &) const |
| Return the i,j component of the tensor of inertia computed with respect to centroid. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIGrossSection (const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIGrossSection (const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOGrossSection (const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIGrossSection (void) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIGrossSection (const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| double | getIxHomogenizedSection (const double &) const |
| Inertia of the homogenized section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pHomogenizedSection (void) const |
| Agle of the principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_aHomogenizedSection (void) const |
| Direction of a principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_bHomogenizedSection (void) const |
| Direction of the other axis of inertia of the homogenized section with respect of current axis. More... | |
| double | getI1HomogenizedSection (const double &) const |
| Major principal moment of inertia of the homogenized section. | |
| double | getI2HomogenizedSection (const double &) const |
| Minor principal moment of inertia of the homogenized section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesHomogenizedSection (const double &) const |
| Principal axis of inertia of the homogenized section. | |
| Vector2d | getAxis1VDirHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirStrongAxisHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getAxis2VDirHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirWeakAxisHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &) const |
| tensor of inertia (i,j) component of the homogenized section. | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIHomogenizedSection (const double &, const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIHomogenizedSection (const double &, const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOHomogenizedSection (const double &, const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIHomogenizedSection (const double &) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIHomogenizedSection (const double &, const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| CrossSectionProperties3d | getCrossSectionProperties3d (const CrossSectionProperties3d &) const |
| Return the 3D mass properties of the homogenized section. | |
| CrossSectionProperties2d | getCrossSectionProperties2d (const CrossSectionProperties2d &) const |
| Return the 2D mass properties of the homogenized section. | |
Protected Member Functions | |
| ListReinfLayer (GeomSection *, MaterialHandler *ml) | |
| Constructor. | |
| ListReinfLayer (const ListReinfLayer &) | |
| Copy constructor. | |
| ListReinfLayer & | operator= (const ListReinfLayer &) |
| Assignment operator. | |
Protected Attributes | |
| MaterialHandler * | material_handler |
| Material definition handler (searching,...). | |
Friends | |
| class | GeomSection |
Detailed Description
Reinf layer container (list).
Member Function Documentation
§ getBarrasIn() [1/2]
| void XC::ListReinfLayer::getBarrasIn | ( | const Polygon2d & | plg, |
| ListReinfLayer & | retval, | ||
| bool | clear | ||
| ) |
Returns the rebar subset which center lies inside the polygon.
- Parameters
-
plg 2D polygon. retval rebars which centers lies inside the polygon.
§ getBarrasIn() [2/2]
| void XC::ListReinfLayer::getBarrasIn | ( | const HalfPlane2d & | sp, |
| ListReinfLayer & | retval, | ||
| bool | clear | ||
| ) |
Returns the rebar subset which center lies in the half plane.
- Parameters
-
sp Half plane. retval rebars which centers lies inside the half plane.
§ getGeomSection()
| const XC::GeomSection * XC::ListReinfLayer::getGeomSection | ( | void | ) | const |
Returns a reference to the GeomSection object that owns this one.
§ getIyHomogenizedSection()
|
virtual |
Returns homogenized moment of inertia of the cross-section with respecto to the axis parallel to y passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
§ getIzHomogenizedSection()
|
virtual |
Returns homogenized moment of inertia of the cross-section with respecto to the axis parallel to z passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
§ getPyzHomogenizedSection()
|
virtual |
Returns homogenized product of inertia of the cross-section with respecto to the axis parallel to y and z passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
§ newReinfBar()
| XC::SingleBar * XC::ListReinfLayer::newReinfBar | ( | const std::string & | cod_mat | ) |
Returns a single bar with the material with the identifier being passed as parameter.
The documentation for this class was generated from the following files:
- src/material/section/repres/geom_section/reinfLayer/ListReinfLayer.h
- src/material/section/repres/geom_section/reinfLayer/ListReinfLayer.cc
