Load pattern container. More...
#include <MapLoadPatterns.h>

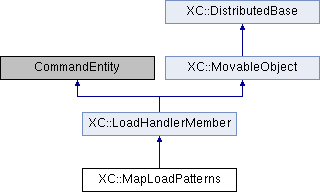

Inheritance diagram for XC::MapLoadPatterns:
Public Types | |
| typedef map_loadpatterns::iterator | iterator |
| typedef map_loadpatterns::const_iterator | const_iterator |
Public Member Functions | |
| MapLoadPatterns (LoadHandler *owr) | |
| Default constructor. | |
| ~MapLoadPatterns (void) | |
| Destructor. | |
| void | clear (void) |
| Clears all the load patterns. | |
| const_iterator | begin (void) const |
| const_iterator | end (void) const |
| iterator | begin (void) |
| iterator | end (void) |
| size_t | size (void) const |
| bool | empty (void) const |
| const std::string | getCurrentLoadPatternId (void) const |
| LoadPattern * | getCurrentLoadPatternPtr (void) |
| const LoadPattern * | getCurrentLoadPatternPtr (void) const |
| const std::string & | getCurrentLoadPattern (void) const |
| void | setCurrentLoadPattern (const std::string &nmb) |
| LoadPattern * | newLoadPattern (const std::string &, const std::string &) |
| Define a LoadPattern object withe the type and the name being passed as parameters. More... | |
| void | addToDomain (const std::string &) |
| Adds the load pattern to the domain. | |
| void | removeFromDomain (const std::string &) |
| Remove the load pattern del domain. | |
| void | removeAllFromDomain (void) |
| Remove the loadpatterns del domain. | |
| TimeSeries * | buscaTS (const int &) |
| Returns a pointer to the TS cuyo dbTag being passed as parameter. More... | |
| const TimeSeries * | buscaTS (const int &) const |
| Returns a pointer to the TS cuyo nombre being passed as parameter. | |
| TimeSeries * | buscaTS (const std::string &) |
| Returns a pointer to the TimeSeries cuyo nombre being passed as parameter. | |
| const TimeSeries * | buscaTS (const std::string &) const |
| Returns a pointer to the TimeSeries cuyo nombre being passed as parameter. | |
| LoadPattern * | buscaLoadPattern (const std::string &) |
| Returns a pointer to the load pattern cuyo nombre being passed as parameter. | |
| const LoadPattern * | buscaLoadPattern (const std::string &) const |
| Returns a pointer to the load pattern cuyo nombre being passed as parameter. | |
| LoadPattern * | buscaLoadPattern (const int &) |
| Returns a pointer to the caso cuyo tag being passed as parameter. | |
| const LoadPattern * | buscaLoadPattern (const int &) const |
| Returns a pointer to the load pattern with the tag being passed as parameter. More... | |
| const std::string & | getLoadPatternName (const LoadPattern *) const |
| Returns the name of the load pattern pointed by the parameter. | |
| TimeSeries * | newTimeSeries (const std::string &, const std::string &) |
| Define a TimeSeries object with the type and name passed as parameters. More... | |
| const std::string & | getCurrentTimeSeries (void) const |
| void | setCurrentTimeSeries (const std::string &nmb) |
| std::deque< std::string > | getNamesList (void) const |
| Return the names of the load patterns. | |
| boost::python::list | getKeys (void) const |
| Return load case names. | |
| const int & | getCurrentElementLoadTag (void) const |
| void | setCurrentElementLoadTag (const int &n) |
| const int & | getCurrentNodeLoadTag (void) const |
| void | setCurrentNodeLoadTag (const int &n) |
| int | sendSelf (CommParameters &) |
| Sends object through the channel passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel passed as parameter. | |
 Public Member Functions inherited from XC::LoadHandlerMember | |
| LoadHandlerMember (LoadHandler *owr) | |
| Default constructor. | |
| const LoadHandler * | getLoadHandler (void) const |
| Returns the owner. | |
| LoadHandler * | getLoadHandler (void) |
| Returns the owner. | |
| const Domain * | getDomain (void) const |
| Returns the domain. | |
| Domain * | getDomain (void) |
| Returns the domain. | |
| int & | getTagLP (void) |
| Returns the tag para el siguiente load pattern. | |
| const int & | getTagLP (void) const |
| Returns the tag para el siguiente load pattern. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| void | clear_time_series (void) |
| Clears all the load patterns. | |
| DbTagData & | getDbTagData (void) const |
| Return a vector to store the dbTags of the class members. More... | |
| int | sendData (CommParameters &cp) |
| Send members through the channel passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Send members through the channel passed as parameter. | |
Friends | |
| class | LoadHandler |
Detailed Description
Load pattern container.
Member Function Documentation
§ buscaLoadPattern()
| const XC::LoadPattern * XC::MapLoadPatterns::buscaLoadPattern | ( | const int & | tag | ) | const |
Returns a pointer to the load pattern with the tag being passed as parameter.
§ buscaTS()
| XC::TimeSeries * XC::MapLoadPatterns::buscaTS | ( | const int & | dbTag | ) |
Returns a pointer to the TS cuyo dbTag being passed as parameter.
se usa en LoadPattern::recvData.
§ getDbTagData()
|
protectedvirtual |
Return a vector to store the dbTags of the class members.
Reimplemented from XC::DistributedBase.
§ newLoadPattern()
| XC::LoadPattern * XC::MapLoadPatterns::newLoadPattern | ( | const std::string & | type, |
| const std::string & | cod_lp | ||
| ) |
Define a LoadPattern object withe the type and the name being passed as parameters.
§ newTimeSeries()
| XC::TimeSeries * XC::MapLoadPatterns::newTimeSeries | ( | const std::string & | type, |
| const std::string & | cod_ts | ||
| ) |
Define a TimeSeries object with the type and name passed as parameters.
It Interprets the following types:
- constant_ts: Defines a constant time series (ConstantSeries).
- linear_ts: Defines a linear time series (LinearSeries).
- path_ts: Defines a path time series (PathSeries).
- pulse_ts: Defines a pulse time series (PulseSeries).
- rectangular_ts: Defines a rectangular time series (RectangularSeries).
- triangular_ts: Defines a triangular time series (TriangleSeries).
- trig_ts: Defines a trigonometric time series (TrigSeries).
The documentation for this class was generated from the following files:
- src/domain/load/pattern/MapLoadPatterns.h
- src/domain/load/pattern/MapLoadPatterns.cc
