Newton-Cotes integration on beam elements. More...
#include <NewtonCotesBeamIntegration.h>

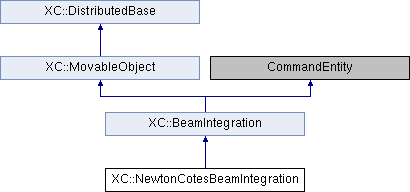

Inheritance diagram for XC::NewtonCotesBeamIntegration:
Public Member Functions | |
| void | getSectionLocations (int nIP, double L, double *xi) const |
| void | getSectionWeights (int nIP, double L, double *wt) const |
| BeamIntegration * | getCopy (void) const |
| int | sendSelf (CommParameters &) |
| Send the object. More... | |
| int | recvSelf (const CommParameters &) |
| Receive the object. More... | |
| void | Print (std::ostream &s, int flag=0) |
 Public Member Functions inherited from XC::BeamIntegration | |
| BeamIntegration (int classTag) | |
| const Matrix & | getIntegrPointCoords (int nIP, double L) const |
| Returns the coordenadas normalizadas (entre 0 y 1). | |
| const Matrix & | getIntegrPointNaturalCoords (int nIP, double L) const |
| Returns the coordenadas naturales (entre -1 y 1) a partir de las normalizadas. | |
| const Matrix & | getIntegrPointLocalCoords (int nIP, double L) const |
| Returns the coordenadas locales (entre 0 y L) a partir de las normalizadas. | |
| const Matrix & | getIntegrPointNaturalCoords (int nIP, const CrdTransf &trf) const |
| Returns a matrix with the natural coordinates for each integration point. | |
| const Matrix & | getIntegrPointNormalizedCoords (int nIP, const CrdTransf &trf) const |
| Returns a matrix with the normalized coordinates for each integration point. | |
| const Matrix & | getIntegrPointLocalCoords (int nIP, const CrdTransf &trf) const |
| Returns a matrix with the local coordinates for each integration point. | |
| const Matrix & | getIntegrPointGlobalCoords (int nIP, const CrdTransf &trf) const |
| Returns a matrix with the global coordinates for each integration point. | |
| const Vector & | evalInIntegrPoints (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const |
| Returns the values of the expresion being pased as parameter on each integration point. | |
| double | getIntegral (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const |
| Returns the integral of the expresion. | |
| virtual void | addElasticDeformations (ElementalLoad *theLoad, double loadFactor, double L, FVector &v0) |
| virtual int | addElasticFlexibility (double L, Matrix &fe) |
| virtual double | getTangentDriftI (double L, double LI, double q2, double q3, bool yAxis=false) |
| virtual double | getTangentDriftJ (double L, double LI, double q2, double q3, bool yAxis=false) |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual void | getLocationsDeriv (int nIP, double L, double dLdh, double *dptsdh) |
| virtual void | getWeightsDeriv (int nIP, double L, double dLdh, double *dwtsdh) |
| virtual int | addElasticFlexDeriv (double L, Matrix &dfedh, double dLdh=0.0) |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Detailed Description
Newton-Cotes integration on beam elements.
Member Function Documentation
§ recvSelf()
|
inlinevirtual |
Receive the object.
Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.
Implements XC::MovableObject.
§ sendSelf()
|
inlinevirtual |
Send the object.
Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.
Implements XC::MovableObject.
The documentation for this class was generated from the following files:
- src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/NewtonCotesBeamIntegration.h
- src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/NewtonCotesBeamIntegration.cpp
