Single freedom constraints that make part of a load pattern. More...

#include <NodeLocker.h>

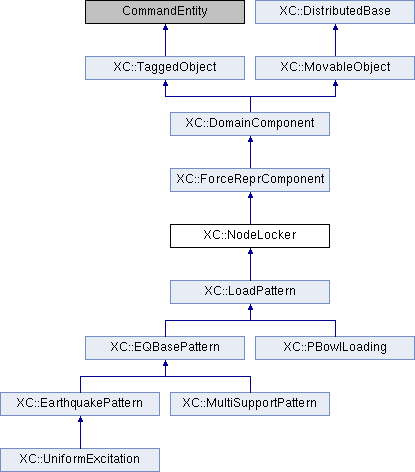

Inheritance diagram for XC::NodeLocker:

Public Member Functions
virtual	~NodeLocker (void)
	Destructor.

virtual void	setDomain (Domain *theDomain)
	Set the domain for the constraints.

virtual SFreedom_Constraint *	addSFreedom_Constraint (const int &nodeTag, const int &dofId, const double &)
	Adds the single freedom constraint being passed as parameter.

virtual SFreedom_ConstraintIter &	getSPs (void)
	Returns an iterator to the single freedom constraints.

int	getNumSPs (void) const
	Returns the number of single freedom constraints.

virtual void	clearAll (void)
	Deletes all constraints.

SFreedom_Constraint *	newSPConstraint (const int &, const int &, const double &)
	Creates a single freedom constraint. More...

virtual bool	removeSFreedom_Constraint (int tag)
	Erases the single freedom constraint identified by the argument. More...

virtual void	applyLoad (const double &pseudoTime=0.0, const double &factor=1.0)
	Applies the single freedom constraints. More...

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

virtual void	Print (std::ostream &s, int flag=0)
	Imprime el load pattern.

std::deque< int >	getTagsSPsNode (int theNode, int theDOF) const
	Returns the constraint that affect the node and DOF being passed as parameter. More...

std::deque< int >	getTagsSPsNode (int theNode) const
	Returns the constraint that affect the node being passed as parameter. More...

bool	nodeAffectedBySPs (int nodeTag) const
	Returns true if the single freedom constraints affect the node which identifier is being passed as parameter. More...

Public Member Functions inherited from XC::ForceReprComponent
	ForceReprComponent (int classTag)

	ForceReprComponent (int tag, int classTag)

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.

void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags de los miembros of the clase. More...

int	sendData (CommParameters &cp)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receives members through the channel being passed as parameter.

	NodeLocker (void)
	Default constructor.

	NodeLocker (int tag)
	Constructor.

	NodeLocker (int tag, int classTag)
	Constructor.

virtual bool	addSFreedom_Constraint (SFreedom_Constraint *theSp)
	Adds the single freedom constraint being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
int	nextTag
	Default tag for next node locker.

int	currentGeoTag

int	lastGeoSendTag

TaggedObjectStorage *	theSPs
	Constraint container.

SingleDomSFreedom_Iter *	theSpIter
	Constraint iterator.

Friends
class	NodeLockers

class	FEM_ObjectBroker

Detailed Description

Single freedom constraints that make part of a load pattern.

Member Function Documentation

§ applyLoad()

void XC::NodeLocker::applyLoad	(	const double &	pseudoTime = `0.0`,
		const double &	factor = `1.0`
	)

virtual

Applies the single freedom constraints.

Parameters

pseudoTime	ignored (single freedom constraints doesn't depend on it).
factor	factor that weights the prescribed values.

§ getDbTagData()

XC::DbTagData & XC::NodeLocker::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags de los miembros of the clase.

Reimplemented from XC::DistributedBase.

§ getTagsSPsNode() [1/2]

std::deque< int > XC::NodeLocker::getTagsSPsNode	(	int	theNode,
		int	theDOF
	)		const

Returns the constraint that affect the node and DOF being passed as parameter.

Parameters

theNode	node identifier.
theDOF	identifier or the degree of freedom.

§ getTagsSPsNode() [2/2]

std::deque< int > XC::NodeLocker::getTagsSPsNode ( int theNode ) const

Returns the constraint that affect the node being passed as parameter.

Parameters

theNode node identifier.

§ newSPConstraint()

XC::SFreedom_Constraint * XC::NodeLocker::newSPConstraint	(	const int &	tag_nod,
		const int &	dofId,
		const double &	value
	)

Creates a single freedom constraint.

Parameters

tag_nod	identifier of the constrained node.
dofId	identifier of the degree of freedom.
value	value of the prescribed displacement.

§ nodeAffectedBySPs()

bool XC::NodeLocker::nodeAffectedBySPs ( int nodeTag ) const

Returns true if the single freedom constraints affect the node which identifier is being passed as parameter.

§ removeSFreedom_Constraint()

bool XC::NodeLocker::removeSFreedom_Constraint ( int tag )

virtual

Erases the single freedom constraint identified by the argument.

Parameters

tag	single freedom constraint identifier.

The documentation for this class was generated from the following files:

src/domain/load/pattern/NodeLocker.h
src/domain/load/pattern/NodeLocker.cc
