Base class for PySimple1 y QzSimple1. More...
#include <PQyzBase.h>

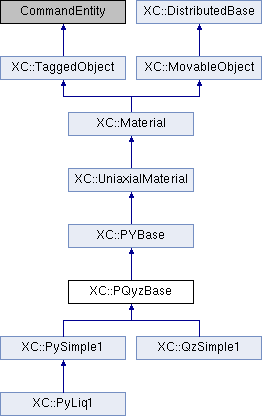

Inheritance diagram for XC::PQyzBase:
Public Member Functions | |
| PQyzBase (int tag, int classtag, int soilType, double rult, double v50, double dashpot) | |
| Constructor with data. | |
| PQyzBase (int tag, int classtag) | |
| Constructor. | |
| PQyzBase (void) | |
| Default constructor. | |
| int | commitState (void) |
| int | revertToLastCommit (void) |
 Public Member Functions inherited from XC::PYBase | |
| PYBase (int tag, int classtag, int soilType, double mCap, double v50, double dashpot) | |
| Constructor with data. | |
| PYBase (int tag, int classtag) | |
| Default constructor. | |
| PYBase (void) | |
| Default constructor. | |
| double | getTangent (void) const |
| Return the current value of the tangent for the trial strain. | |
| double | getInitialTangent (void) const |
| Get initial stiffness. | |
| void | setInitialTangent (const double &) |
| Set initial stiffness. | |
| double | getStrain (void) const |
| double | getStrainRate (void) const |
| default operation for strain rate is zero | |
| void | setSoilType (const int &) |
| Sets the soil type to represent: soilType= 1 Backbone of p-y curve approximates Matlock (1970) soft clay relation. More... | |
| int | getSoilType (void) const |
| Gets the soil type to represent: soilType= 1 Backbone of p-y curve approximates Matlock (1970) soft clay relation. More... | |
| void | setUltimateCapacity (const double &) |
| Set the ultimate capacity of the p-y material. More... | |
| double | getUltimateCapacity (void) const |
| Get the ultimate capacity of the p-y material. More... | |
| void | setY50 (const double &) |
| Set the displacement at which 50% of pult is mobilized in monotonic loading. More... | |
| double | getY50 (void) const |
| Get the displacement at which 50% of pult is mobilized in monotonic loading. More... | |
| void | setDashPot (const double &) |
| Set the viscous damping term (dashpot) on the far-field (elastic) component of the displacement rate (velocity). More... | |
| double | getDashPot (void) const |
| Get the viscous damping term (dashpot) on the far-field (elastic) component of the displacement rate (velocity). More... | |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::UniaxialMaterial | |
| UniaxialMaterial (int tag, int classTag) | |
| Constructor. More... | |
| virtual int | setInitialStrain (double strain) |
| Sets the initial strain value. | |
| virtual int | setTrialStrain (double strain, double strainRate=0.0)=0 |
| Sets the value of the trial strain. More... | |
| virtual int | setTrial (double strain, double &stress, double &tangent, double strainRate=0.0) |
| virtual double | getInitialStrain (void) const |
| Return the initial strain. | |
| virtual double | getStress (void) const =0 |
| Return the current value of stress. | |
| const Vector & | getGeneralizedStress (void) const |
| Return the generalized stress. | |
| const Vector & | getGeneralizedStrain (void) const |
| Return the generalized strain. | |
| virtual void | setInitialGeneralizedStrain (const Vector &) |
| Sets the initial generalized strain to the value being passed as parameter. | |
| const Vector & | getInitialGeneralizedStrain (void) const |
| virtual double | getDampTangent (void) const |
| default operation for damping tangent is zero | |
| virtual double | getSecant (void) const |
| Return secant secant stiffness of the material. | |
| virtual double | getFlexibility (void) const |
| Return the inverse of stiffness matrix. | |
| virtual double | getInitialFlexibility (void) const |
| Return the inverse of stiffness matrix inicial. | |
| virtual double | getRho (void) const |
| Return the material density. | |
| void | setRho (const double &) |
| Assigns la material density. | |
| virtual UniaxialMaterial * | getCopy (void) const =0 |
| Virtual constructor. | |
| virtual UniaxialMaterial * | getCopy (SectionForceDeformation *s) const |
| Virtual constructor. | |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &matInformation) |
| virtual int | getResponse (int responseID, Information &matInformation) |
| Returns material response. | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual double | getStressSensitivity (int gradNumber, bool conditional) |
| virtual double | getStrainSensitivity (int gradNumber) |
| virtual double | getInitialTangentSensitivity (int gradNumber) |
| virtual double | getDampTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| virtual int | commitSensitivity (double strainGradient, int gradNumber, int numGrads) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| virtual int | revertToStart (void)=0 |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | sendSelf (CommParameters &cp)=0 |
| Send the object. More... | |
| virtual int | recvSelf (const CommParameters &cp)=0 |
| Receive the object. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::PYBase | |
| void | getFarField (const double &y) |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::UniaxialMaterial | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Protected Attributes | |
| double | NFkrig |
| stiffness of the "rigid" portion of Near Field spring | |
| InternalParamsLRIn | CNF |
| Committed internal parameters for the NearField rigid-plastic component. | |
| InternalParamsLRIn | TNF |
| Trial internal parameters for the NearField rigid-plastic component. | |
| InternalParamsA | CGap |
| Committed internal parameters for the Gap (Drag + Closure) | |
| InternalParamsA | TGap |
| Trial internal parameters for the Gap (Drag + Closure) | |
| double | Elast |
| (p/matCapacity) when yielding first occurs in virgin loading | |
| double | nd |
| exponent for hardening shape of drag component | |
| Protected Attributes inherited from XC::PYBase | |
| InternalParamsA | C |
| Committed history variables for entire Q-z material. | |
| InternalParamsA | T |
| Trial history variables for entire p-y material. | |
| double | TvRate |
| Trial velocity. | |
| InternalParamsA | CFar |
| Committed internal parameters for the Far Field component. | |
| InternalParamsA | TFar |
| Trial internal parameters for the Far Field component. | |
| double | initialTangent |
| int | soilType |
| Soil type. | |
| double | matCapacity |
| Material capacity. | |
| double | v50 |
| y (or z) at 50% of matCapacity. | |
| double | vRef |
| (y or z) reference point for Near Field component | |
| double | np |
| exponent for hardening shape of Near Field component | |
| double | dashpot |
| dashpot on the far-field (elastic) component | |
Detailed Description
The documentation for this class was generated from the following files:
- src/material/uniaxial/PY/PQyzBase.h
- src/material/uniaxial/PY/PQyzBase.cc
