#include <PressureDependMultiYield02.h>

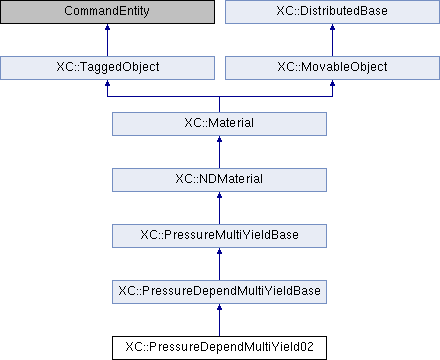

Inheritance diagram for XC::PressureDependMultiYield02:

Public Member Functions
	PressureDependMultiYield02 (int tag, int nd, double rho, double refShearModul, double refBulkModul, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double phaseTransformAngle, double contractionParam1, double contractionParam3, double dilationParam1, double dilationParam3, int numberOfYieldSurf=20, double *gredu=0, double contractionParam2=5., double dilationParam2=3., double liquefactionParam1=1., double liquefactionParam2=0., double e=0.6, double volLimit1=0.9, double volLimit2=0.02, double volLimit3=0.7, double atm=101., double cohesi=0.1, double hv=0., double pv=1.)

	PressureDependMultiYield02 (int tag)

	PressureDependMultiYield02 (const PressureDependMultiYield02 &)

const Matrix &	getTangent (void) const
	Return the tangent stiffness matrix at the current trial strain. More...

const Vector &	getStress (void) const
	Returns the material stress vector at the current trial strain.

const Vector &	getCommittedStress (void)
	Returns commited stresses.

int	setTrialStrain (const Tensor &v)
	Set trial strain value.

int	setTrialStrain (const Tensor &v, const Tensor &r)

int	setTrialStrainIncr (const Tensor &v)
	Set trial strain increment.

int	setTrialStrainIncr (const Tensor &v, const Tensor &r)

NDMaterial *	getCopy (void) const
	Virtual constructor.

NDMaterial *	getCopy (const std::string &) const

const std::string &	getType (void) const

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

void	Print (std::ostream &s, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::PressureDependMultiYieldBase
	PressureDependMultiYieldBase (int tag, int classTag, int nd, double rho, double refShearModul, double refBulkModul, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double phaseTransformAngle, double contractionParam1, double dilationParam1, double dilationParam2, double liquefactionParam1, double liquefactionParam2, double liquefactionParam4, int numberOfYieldSurf=20, double *gredu=0, double e=0.6, double volLimit1=0.9, double volLimit2=0.02, double volLimit3=0.7, double atm=101., double cohesi=0.1, double hv=0., double pv=1.)

	PressureDependMultiYieldBase (int tag, int classTag)

	PressureDependMultiYieldBase (const PressureDependMultiYieldBase &)

double	getRho (void) const

int	setTrialStrain (const Vector &strain)
	Sets the value of the trial strain vector, that value used by {getStress()} and getTangent(), to be `strain`. More...

int	setTrialStrain (const Vector &v, const Vector &r)
	Sets trial strain value.

int	setTrialStrainIncr (const Vector &v)
	Set trial strain increment.

int	setTrialStrainIncr (const Vector &v, const Vector &r)
	Set trial strain increment.

const Matrix &	getInitialTangent (void)

void	getBackbone (Matrix &)

const Vector &	getStrain (void)

const Vector &	getCommittedStress (void)
	Returns commited stresses.

const Vector &	getCommittedStrain (void)
	Returns commited strains.

int	setTrialStrain (const Tensor &v)
	Set trial strain value.

int	setTrialStrain (const Tensor &v, const Tensor &r)

int	setTrialStrainIncr (const Tensor &v)
	Set trial strain increment.

int	setTrialStrainIncr (const Tensor &v, const Tensor &r)

int	commitState (void)

int	revertToLastCommit (void)

int	revertToStart (void)

int	getOrder (void) const

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Response *	setResponse (const std::vector< std::string > &argv, Information &matInfo)

int	getResponse (int responseID, Information &matInformation)
	Returns material response.

void	Print (std::ostream &s, int flag=0)
	Print stuff.

int	updateParameter (int responseID, Information &eleInformation)
	Updates the parameter identified by `parameterID` with `info`.

Public Member Functions inherited from XC::PressureMultiYieldBase
	PressureMultiYieldBase (int tag, int classTag, int nd, double rho, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi=0.1, int numberOfYieldSurf=20)

	PressureMultiYieldBase (int tag, int classTag)

	PressureMultiYieldBase (const PressureMultiYieldBase &)

PressureMultiYieldBase &	operator= (const PressureMultiYieldBase &)

Public Member Functions inherited from XC::NDMaterial
	NDMaterial ()
	Constructor.

	NDMaterial (int tag, int classTag)
	Constructor. More...

virtual double	getE (void)

virtual double	getnu (void)

virtual double	getpsi (void)

virtual const Matrix &	getInitialTangent (void) const

virtual const Vector &	getStrain (void) const
	Returns strain.

const Vector &	getGeneralizedStress (void) const

const Vector &	getGeneralizedStrain (void) const

virtual void	setInitialGeneralizedStrain (const Vector &)
	Asigna el initial strain value.

const Vector &	getInitialGeneralizedStrain (void) const
	Return the initial strain.

virtual const Tensor &	getTangentTensor (void) const

virtual const stresstensor &	getStressTensor (void) const

virtual const straintensor &	getStrainTensor (void) const

virtual const straintensor &	getPlasticStrainTensor (void) const

virtual int	setTrialF (const straintensor &f)

virtual int	setTrialFIncr (const straintensor &df)

virtual int	setTrialC (const straintensor &c)

virtual int	setTrialCIncr (const straintensor &dc)

virtual const stresstensor	getPK1StressTensor (void)

virtual const stresstensor	getCauchyStressTensor (void)

virtual const straintensor &	getF (void) const

virtual const straintensor &	getC (void) const

virtual const straintensor	getFp (void)

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual const Vector &	getStressSensitivity (int gradNumber, bool conditional)

virtual const Vector &	getStrainSensitivity (int gradNumber)

virtual const Matrix &	getTangentSensitivity (int gradNumber)

virtual const Matrix &	getDampTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (Vector &strainGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...

const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::PressureDependMultiYieldBase
void	elast2Plast (void) const

double	yieldFunc (const T2Vector &stress, const std::vector< MultiYieldSurface > &surfaces, int surface_num) const

void	deviatorScaling (T2Vector &stress, const std::vector< MultiYieldSurface > &surfaces, int surfaceNum) const

void	initSurfaceUpdate (void) const

int	setSubStrainRate (void) const

int	isLoadReversal (const T2Vector &) const

void	getContactStress (T2Vector &contactStress) const

void	getSurfaceNormal (const T2Vector &stress, T2Vector &normal) const

double	getModulusFactor (const T2Vector &stress) const

void	setTrialStress (const T2Vector &stress) const

double	getLoadingFunc (const T2Vector &contact, const T2Vector &surfaceNormal, double plasticPotential, int crossedSurface) const

void	updateActiveSurface (void) const

void	updateInnerSurface (void) const

int	isCrossingNextSurface (void) const

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::PressureMultiYieldBase
void	setup (int nd, double r, double frictionAng, double peakShearStra, double refPress, double pressDependCoe, double cohesi, int numberOfYieldSurf)

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::NDMaterial
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Friends
class	PyLiq1

class	TzLiq1

Additional Inherited Members
Protected Attributes inherited from XC::PressureDependMultiYieldBase
double	modulusFactor

double	initPress

double	pressureD

double	pressureDCommitted

int	onPPZ

int	onPPZCommitted

double	strainPTOcta

double	PPZSize

double	PPZSizeCommitted

double	cumuDilateStrainOcta

double	maxCumuDilateStrainOcta

double	cumuTranslateStrainOcta

double	prePPZStrainOcta

double	oppoPrePPZStrainOcta

T2Vector	PPZPivot

T2Vector	PPZCenter

double	cumuDilateStrainOctaCommitted

double	maxCumuDilateStrainOctaCommitted

double	cumuTranslateStrainOctaCommitted

double	prePPZStrainOctaCommitted

double	oppoPrePPZStrainOctaCommitted

T2Vector	PPZPivotCommitted

T2Vector	PPZCenterCommitted

double	maxPress

Protected Attributes inherited from XC::PressureMultiYieldBase
int	matN

int	e2p

std::vector< MultiYieldSurface >	theSurfaces

std::vector< MultiYieldSurface >	committedSurfaces

int	activeSurfaceNum

int	committedActiveSurf

T2Vector	currentStress

T2Vector	trialStress

T2Vector	currentStrain

T2Vector	strainRate

Static Protected Attributes inherited from XC::PressureDependMultiYieldBase
static double *	refShearModulusx =0

static double *	refBulkModulusx =0

static double *	phaseTransfAnglex =0

static double *	contractParam1x =0

static double *	dilateParam1x =0

static double *	dilateParam2x =0

static double *	einitx =0

static double *	liquefyParam1x =0

static double *	liquefyParam2x =0

static double *	volLimit1x =0

static double *	volLimit2x =0

static double *	volLimit3x =0

static double	pAtm = 101.

static double *	Hvx =0

static double *	Pvx =0

static T2Vector	trialStrain

static Vector	workV6

static T2Vector	workT2V

Static Protected Attributes inherited from XC::PressureMultiYieldBase
static int	matCount =0

static std::vector< int >	ndmx

static std::vector< int >	loadStagex

static std::vector< double >	rhox

static std::vector< double >	frictionAnglex

static std::vector< double >	peakShearStrainx

static std::vector< double >	refPressurex

static std::vector< double >	cohesionx

static std::vector< double >	pressDependCoeffx

static std::vector< int >	numOfSurfacesx

static std::vector< double >	residualPressx

static std::vector< double >	stressRatioPTx

static Matrix	theTangent

static T2Vector	subStrainRate

Detailed Description

??

Member Function Documentation

§ getTangent()

const XC::Matrix & XC::PressureDependMultiYield02::getTangent ( void ) const

virtual

Return the tangent stiffness matrix at the current trial strain.

Reimplemented from XC::NDMaterial.

§ recvSelf()

int XC::PressureDependMultiYield02::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::PressureDependMultiYield02::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

The documentation for this class was generated from the following files:

src/material/nD/soil/PressureDependMultiYield02.h
src/material/nD/soil/PressureDependMultiYield02.cpp

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

§ getTangent()

§ recvSelf()

§ sendSelf()
