Section composed of some regions. More...
#include <RegionContainer.h>

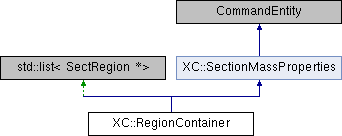

Inheritance diagram for XC::RegionContainer:
Public Types | |
| typedef std::list< SectRegion * > | l_reg |
| typedef l_reg::reference | reference |
| typedef l_reg::const_reference | const_reference |
| typedef l_reg::iterator | iterator |
| typedef l_reg::const_iterator | const_iterator |
Public Member Functions | |
| RegionContainer (MaterialHandler *ml) | |
| Constructor. | |
| RegionContainer (const RegionContainer &) | |
| Copy constructor. | |
| RegionContainer & | operator= (const RegionContainer &) |
| Assignment operator. | |
| ~RegionContainer (void) | |
| Destructor. | |
| XC::SectRegion * | push_back (const SectRegion ®) |
| Adds a region to the container. | |
| size_t | size (void) const |
| bool | empty (void) const |
| void | clear (void) |
| Erases all regions. | |
| const_iterator | begin (void) const |
| const_iterator | end (void) const |
| iterator | begin (void) |
| iterator | end (void) |
| QuadSectRegion * | newQuadRegion (const std::string &) |
| Aggregates a new quadrilateral region. | |
| CircularSectRegion * | newCircularRegion (const std::string &) |
| Aggregates a new circularl region. | |
| size_t | getNumCells (void) const |
| Returns the número total de celdas. | |
| std::list< Polygon2d > | getRegionsContours (void) const |
| Returns a list with the regions contours. | |
| std::list< Polygon2d > | getContours (void) const |
| Return the regions contours. | |
| BND2d | getBnd (void) const |
| RegionContainer | Intersection (const HalfPlane2d &) const |
| double | getAreaGrossSection (void) const |
| Returns the regions area. | |
| Vector | getCenterOfMassGrossSection (void) const |
| Returns the centro de gravedad of the gross cross-section. | |
| double | getIyGrossSection (void) const |
| Returns the moment of inertia of the gross cross-section with respect to the axis parallel to y passing through the centroid. | |
| double | getIzGrossSection (void) const |
| Returns the moment of inertia of the gross cross-section with respect to the axis paralelo al z por el centroid. | |
| double | getPyzGrossSection (void) const |
| Returns the product of inertia of the gross cross-section respecto a los axis parallel to the y y al z por el centroid. | |
| Vector | getCenterOfMassHomogenizedSection (const double &E0) const |
| double | getAreaHomogenizedSection (const double &E0) const |
| Returns the homogenized area of the regions. | |
| double | getIyHomogenizedSection (const double &E0) const |
| Returns homogenized moment of inertia of the cross-section with respect to the axis parallel to y passing through the centroid. More... | |
| double | getIzHomogenizedSection (const double &E0) const |
| Returns homogenized moment of inertia of the cross-section with respect to the axis parallel to z passing through the centroid. More... | |
| double | getPyzHomogenizedSection (const double &E0) const |
| Returns homogenized product of inertia of the cross-section with respect to the axis parallel to y and z passing through the centroid. More... | |
| void | Print (std::ostream &s) const |
| Print stuff. | |
 Public Member Functions inherited from XC::SectionMassProperties | |
| SectionMassProperties (CommandEntity *owr=nullptr) | |
| Constructor. | |
| double | getIxGrossSection (void) const |
| Inertia of the gross section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pGrossSection (void) const |
| Agle of the principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_aGrossSection (void) const |
| Direction of a principal axis of inertia of the gross section with respect of current axis. More... | |
| Vector | getIAxisDir_bGrossSection (void) const |
| Direction of the other principal axis of inertia of the gross section with respect of current axis. More... | |
| double | getI1GrossSection (void) const |
| Major principal moment of inertia of the gross section. | |
| double | getI2GrossSection (void) const |
| Minor principal moment of inertia of the gross section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesGrossSection (void) const |
| Principal axis of inertia of the gross section. | |
| Vector2d | getAxis1VDirGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirStrongAxisGrossSection (void) const |
| Direction of the major principal axis of inertia of the gross section. More... | |
| Vector2d | getAxis2VDirGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| Vector2d | getVDirWeakAxisGrossSection (void) const |
| Direction of the minor principal axis of inertia of the gross section. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &) const |
| Return the i,j component of the tensor of inertia computed with respect to centroid. More... | |
| double | getIGrossSection (const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIGrossSection (const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIGrossSection (const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOGrossSection (const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIGrossSection (void) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIGrossSection (const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| double | getIxHomogenizedSection (const double &) const |
| Inertia of the homogenized section about an axis parallel to x through his center of gravity. More... | |
| double | getTheta_pHomogenizedSection (void) const |
| Agle of the principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_aHomogenizedSection (void) const |
| Direction of a principal axis of inertia of the homogenized section with respect of current axis. More... | |
| Vector | getIAxisDir_bHomogenizedSection (void) const |
| Direction of the other axis of inertia of the homogenized section with respect of current axis. More... | |
| double | getI1HomogenizedSection (const double &) const |
| Major principal moment of inertia of the homogenized section. | |
| double | getI2HomogenizedSection (const double &) const |
| Minor principal moment of inertia of the homogenized section. | |
| PrincipalAxesOfInertia2D | getInertiaAxesHomogenizedSection (const double &) const |
| Principal axis of inertia of the homogenized section. | |
| Vector2d | getAxis1VDirHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirStrongAxisHomogenizedSection (const double &) const |
| Direction of the major principal axis of inertia of the homogenized section. More... | |
| Vector2d | getAxis2VDirHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| Vector2d | getVDirWeakAxisHomogenizedSection (const double &) const |
| Direction of the minor principal axis of inertia of the homogenized section. More... | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &) const |
| tensor of inertia (i,j) component of the homogenized section. | |
| double | getIHomogenizedSection (const double &, const unsigned short int &, const unsigned short int &, const Pos2d &) const |
| Return the i,j component of the tensor of inertia computed with respect to the point "o". More... | |
| double | getIHomogenizedSection (const double &, const Pos2d &, const Vector &) const |
| Return the moment of inertia with respect to the axis that passes through O with the direction of e. More... | |
| double | getIHomogenizedSection (const double &, const Line2d &) const |
| Return the moment of inertia respecto a la recta being passed as parameter. More... | |
| double | getIOHomogenizedSection (const double &, const Pos2d &) const |
| Return the polar moment of inertia with respect to the point o. | |
| Matrix | getIHomogenizedSection (const double &) const |
| Return the tensor of inertia computed with respect to the object centroid. More... | |
| Matrix | getIHomogenizedSection (const double &, const Pos2d &) const |
| Return the tensor of inertia with respect to the point o. | |
| CrossSectionProperties3d | getCrossSectionProperties3d (const CrossSectionProperties3d &) const |
| Return the 3D mass properties of the homogenized section. | |
| CrossSectionProperties2d | getCrossSectionProperties2d (const CrossSectionProperties2d &) const |
| Return the 2D mass properties of the homogenized section. | |
Protected Attributes | |
| MaterialHandler * | material_handler |
| Material definition handler (searching,...). | |
Detailed Description
Section composed of some regions.
Member Function Documentation
§ getIyHomogenizedSection()
|
virtual |
Returns homogenized moment of inertia of the cross-section with respect to the axis parallel to y passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
§ getIzHomogenizedSection()
|
virtual |
Returns homogenized moment of inertia of the cross-section with respect to the axis parallel to z passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
§ getPyzHomogenizedSection()
|
virtual |
Returns homogenized product of inertia of the cross-section with respect to the axis parallel to y and z passing through the centroid.
- Parameters
-
E0 Reference elastic modulus.
Implements XC::SectionMassProperties.
The documentation for this class was generated from the following files:
- src/material/section/repres/geom_section/region/RegionContainer.h
- src/material/section/repres/geom_section/region/RegionContainer.cc
