Uniaxial material model for steel. More...
#include <Steel01.h>

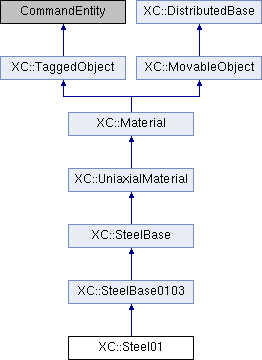

Inheritance diagram for XC::Steel01:
Public Member Functions | |
| Steel01 (int tag, double fy, double E0, double b, double a1=STEEL_0103_DEFAULT_A1, double a2=STEEL_0103_DEFAULT_A2, double a3=STEEL_0103_DEFAULT_A3, double a4=STEEL_0103_DEFAULT_A4) | |
| Constructor. | |
| Steel01 (int tag) | |
| Constructor. | |
| Steel01 (void) | |
| Constructor. | |
| UniaxialMaterial * | getCopy (void) const |
| Virtual constructor. | |
| int | revertToStart (void) |
| int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
| int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| double | getStressSensitivity (int gradNumber, bool conditional) |
| double | getInitialTangentSensitivity (int gradNumber) |
| int | commitSensitivity (double strainGradient, int gradNumber, int numGrads) |
 Public Member Functions inherited from XC::SteelBase0103 | |
| SteelBase0103 (int tag, int classTag, double fy, double E0, double b, double a1=STEEL_0103_DEFAULT_A1, double a2=STEEL_0103_DEFAULT_A2, double a3=STEEL_0103_DEFAULT_A3, double a4=STEEL_0103_DEFAULT_A4) | |
| Constructor. | |
| SteelBase0103 (int tag, int classTag) | |
| Constructor. | |
| SteelBase0103 (int classTag) | |
| Constructor. | |
| int | setTrialStrain (double strain, double strainRate=0.0) |
| Sets the value of the trial strain. More... | |
| int | setTrial (double strain, double &stress, double &tangent, double strainRate=0.0) |
| double | getStrain (void) const |
| double | getStress (void) const |
| Return the current value of stress. | |
| double | getTangent (void) const |
| Return the current value of the tangent for the trial strain. | |
| int | commitState (void) |
| int | revertToLastCommit (void) |
| Reset material to last committed state. | |
| int | revertToStart (void) |
| void | Print (std::ostream &s, int flag=0) |
| Print stuff. | |
| Public Member Functions inherited from XC::SteelBase | |
| SteelBase (int tag, int classTag, const double &fy, const double &e0, const double &b, const double &a1, const double &a2, const double &a3, const double &a4) | |
| Constructor. | |
| SteelBase (int tag, int classTag) | |
| void | setInitialTangent (const double &) |
| Assigns intial Young's modulus. | |
| double | getInitialTangent (void) const |
| Returns intial Young's modulus. | |
| void | setFy (const double &) |
| Assigns yield stress. | |
| double | getFy (void) const |
| Returns yield stress. | |
| void | setHardeningRatio (const double &d) |
| double | getHardeningRatio (void) const |
| double | getEsh (void) const |
| double | getEpsy (void) const |
| Public Member Functions inherited from XC::UniaxialMaterial | |
| UniaxialMaterial (int tag, int classTag) | |
| Constructor. More... | |
| virtual int | setInitialStrain (double strain) |
| Sets the initial strain value. | |
| virtual double | getInitialStrain (void) const |
| Return the initial strain. | |
| virtual double | getStrainRate (void) const |
| default operation for strain rate is zero | |
| const Vector & | getGeneralizedStress (void) const |
| Return the generalized stress. | |
| const Vector & | getGeneralizedStrain (void) const |
| Return the generalized strain. | |
| virtual void | setInitialGeneralizedStrain (const Vector &) |
| Sets the initial generalized strain to the value being passed as parameter. | |
| const Vector & | getInitialGeneralizedStrain (void) const |
| virtual double | getDampTangent (void) const |
| default operation for damping tangent is zero | |
| virtual double | getSecant (void) const |
| Return secant secant stiffness of the material. | |
| virtual double | getFlexibility (void) const |
| Return the inverse of stiffness matrix. | |
| virtual double | getInitialFlexibility (void) const |
| Return the inverse of stiffness matrix inicial. | |
| virtual double | getRho (void) const |
| Return the material density. | |
| void | setRho (const double &) |
| Assigns la material density. | |
| virtual UniaxialMaterial * | getCopy (SectionForceDeformation *s) const |
| Virtual constructor. | |
| virtual Response * | setResponse (const std::vector< std::string > &argv, Information &matInformation) |
| virtual int | getResponse (int responseID, Information &matInformation) |
| Returns material response. | |
| virtual double | getStrainSensitivity (int gradNumber) |
| virtual double | getDampTangentSensitivity (int gradNumber) |
| virtual double | getRhoSensitivity (int gradNumber) |
| Public Member Functions inherited from XC::Material | |
| Material (int tag, int classTag) | |
| Constructor. More... | |
| const MaterialHandler * | getMaterialHandler (void) const |
| Returns (if possible) a pointer to the material handler (owner). | |
| MaterialHandler * | getMaterialHandler (void) |
| Returs a pointer to the material handler (if possible). | |
| std::string | getName (void) const |
| Returns the name of the material. | |
| virtual int | setVariable (const std::string &argv) |
| virtual int | getVariable (int variableID, double &info) |
| virtual void | update (void) |
| Update state variables for the material according to the new values of the parameters. More... | |
| virtual void | addInitialGeneralizedStrain (const Vector &) |
| Increments generalized strain. More... | |
| virtual void | zeroInitialGeneralizedStrain (void) |
| zeroes initial generalized strain | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| int | setup_parameters (void) |
| Sets all history and state variables to initial values. | |
| Protected Member Functions inherited from XC::SteelBase0103 | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::SteelBase | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::UniaxialMaterial | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from XC::SteelBase0103 | |
| double | CminStrain |
| Minimum strain in compression. | |
| double | CmaxStrain |
| Maximum strain in tension. | |
| double | CshiftP |
| Shift in hysteresis loop for positive loading. | |
| double | CshiftN |
| Shift in hysteresis loop for negative loading. | |
| int | Cloading |
| Flag for loading/unloading. | |
| double | Cstrain |
| double | Cstress |
| double | Ctangent |
| double | Tstrain |
| double | Tstress |
| double | Ttangent |
| double | TminStrain |
| double | TmaxStrain |
| double | TshiftP |
| double | TshiftN |
| int | Tloading |
| Protected Attributes inherited from XC::SteelBase | |
| double | fy |
| Yield stress. | |
| double | E0 |
| Initial stiffness. | |
| double | b |
| Hardening ratio (b = Esh/E0) | |
| double | a1 |
| coefficient for isotropic hardening in compression | |
| double | a2 |
| coefficient for isotropic hardening in compression | |
| double | a3 |
| coefficient for isotropic hardening in tension | |
| double | a4 |
| coefficient for isotropic hardening in tension | |
Detailed Description
Uniaxial material model for steel.
provides the abstraction of a bilinear steel model with isotropic hardening. The model contains a yield strength of fy, an initial elastic tangent of E0, and a hardening ratio of b. The optional parameters a1, a2, a3, and a4 control the amount of isotropic hardening (default values are provided). Specification of minimum and maximum failure strains through the -min and -max switches is optional and must appear after the specification of the hardening parameters, if present. The argument matTag is used to uniquely identify the material object among material objects in the BasicBuilder object.
The documentation for this class was generated from the following files:
- src/material/uniaxial/steel/Steel01.h
- src/material/uniaxial/steel/Steel01.cpp
