Sparse symmetric matrix systems of equations. More...

#include <SymSparseLinSOE.h>

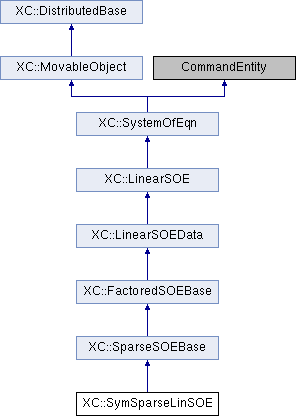

Inheritance diagram for XC::SymSparseLinSOE:

Public Member Functions
int	setSize (Graph &theGraph)
	Determines and sets the size of the system. More...

int	addA (const Matrix &, const ID &, double fact=1.0)
	The LinearSOE object assembles `fact` times the Matrix `M` into the matrix $A$. More...

int	addB (const Vector &, const ID &, const double &fact=1.0)
	assemblies v multiplied by factor into vector B. More...

void	zeroA (void)
	To zero the matrix $A$, i.e. set all the components of $A$ to $0$.

int	setSymSparseLinSolver (SymSparseLinSolver *)

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::LinearSOEData
virtual int	getNumEqn (void) const
	Return the current size of the system.

virtual void	zeroB (void)
	Zeros the entries in the 1d array for $b$.

virtual void	zeroX (void)
	Zeros the entries in the 1d array for $x$.

virtual void	zero (void)
	Zeros the entries in the 1d array for $x$ and $b$.

virtual int	addB (const Vector &, const double &fact=1.0)
	add v multiplied by factor to vector B. More...

virtual int	setB (const XC::Vector &v, const double &fact=1.0)
	Sets B= v*fact. More...

virtual void	setX (int loc, double value)
	If `loc` is within the range of $x$, sets $x(loc) = value$.

virtual void	setX (const Vector &x)
	Assigns $x$.

virtual const Vector &	getX (void) const
	Returns the Vector object created for $x$.

virtual Vector &	getX (void)
	Returns the Vector object created for $x$.

virtual const Vector &	getB (void) const
	Returns the Vector object created for $b$.

virtual Vector &	getB (void)
	Returns the Vector object created for $b$.

virtual double	normRHS (void) const
	Returns the 2-norm of the vector $x$.

void	receiveB (const CommParameters &)

void	receiveX (const CommParameters &)

void	receiveBX (const CommParameters &)

void	sendB (CommParameters &) const

void	sendBX (CommParameters &) const

Public Member Functions inherited from XC::LinearSOE
virtual	~LinearSOE (void)
	Destructor.

virtual int	solve (void)
	Computes the solution of the system of equations. More...

virtual double	getDeterminant (void)
	Returns the determinant of the system matrix.

LinearSOESolver *	getSolver (void)
	Returns a pointer to the solver.

LinearSOESolver &	newSolver (const std::string &)

Public Member Functions inherited from XC::SystemOfEqn
int	checkSize (Graph &theGraph) const
	Check number of DOFs in the graph.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual bool	setSolver (LinearSOESolver *)
	Sets the solver for the system of equations. More...

	SymSparseLinSOE (AnalysisAggregation *, int lSparse=0)

SystemOfEqn *	getCopy (void) const
	Virtual constructor.

Protected Member Functions inherited from XC::SparseSOEBase
	SparseSOEBase (AnalysisAggregation *, int classTag, int N=0, int NNZ=0)
	Constructor. More...

Protected Member Functions inherited from XC::FactoredSOEBase
	FactoredSOEBase (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOEData
void	inic (const size_t &)
	1d arrays containing coefficients of B and X More...

const double &	getB (const size_t &i) const

double &	getB (const size_t &i)

const double &	getX (const size_t &i) const

double &	getX (const size_t &i)

double *	getPtrB (void)

const double *	getPtrB (void) const

double *	getPtrX (void)

const double *	getPtrX (void) const

	LinearSOEData (AnalysisAggregation *, int classTag, int N=0)
	Constructor. More...

Protected Member Functions inherited from XC::LinearSOE
int	setSolverSize (void)
	invoke setSize() on the Solver

	LinearSOE (AnalysisAggregation *, int classTag)
	Constructor. More...

Protected Member Functions inherited from XC::SystemOfEqn
virtual AnalysisModel *	getAnalysisModelPtr (void)
	Returns a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a const pointer to the analysis model.

	SystemOfEqn (AnalysisAggregation *, int classTag)
	Constructor. More...

Friends
class	AnalysisAggregation

class	SymSparseLinSolver

Additional Inherited Members
Protected Attributes inherited from XC::SparseSOEBase
int	nnz

int	Bsize
	number of non-zeros in A

Protected Attributes inherited from XC::FactoredSOEBase
bool	factored
	True if the system is factored.

Protected Attributes inherited from XC::LinearSOEData
int	size

Vector	B
	order of A

Vector	X

Detailed Description

Sparse symmetric matrix systems of equations.

Member Function Documentation

§ addA()

int XC::SymSparseLinSOE::addA	(	const Matrix &	M,
		const ID &	loc,
		double	fact = `1.0`
	)

virtual

The LinearSOE object assembles fact times the Matrix M into the matrix $A$.

The Matrix is assembled into $A$ at the locations given by the ID object loc, i.e. $a_{loc(i),loc(j)}+= M(i,j)$. Numbering in $A$ starts at $(0,0)$, i.e. C style. If allocation specified is outside the range, i.e. $(-1,-1)$ the corresponding entry in M is not added to $A$. To return $0$ if sucessfull, a negative number if not.

Implements XC::LinearSOE.

§ addB()

int XC::SymSparseLinSOE::addB	(	const Vector &	v,
		const ID &	id,
		const double &	fact = `1.0`
	)

virtual

assemblies v multiplied by factor into vector B.

First tests that loc and V are of compatible sizes; if not a warning message is printed and a $-1$ is returned. The LinearSOE object then assembles fact times the Vector V into the vector $b$. The Vector is assembled into $b$ at the locations given by the ID object loc, i.e. $b_{loc(i)} += fact * V(i)$. If a location specified is outside the range, e.g. $-1$, the corresponding entry in V is not added to $b$. If fact is equal to $0.0$, $1.0$ or $-1.0$, more efficient steps are performed. Returns $0$.

Parameters

v	vector to add.
id	row indexes.
fact	factor that multiplies v.

Reimplemented from XC::LinearSOEData.

§ recvSelf()

int XC::SymSparseLinSOE::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::SymSparseLinSOE::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

§ setSize()

int XC::SymSparseLinSOE::setSize ( Graph & theGraph )

virtual

Determines and sets the size of the system.

Invoked to allow the LinearSOE object to determine the size and sparsity of the matrix $A$ and vectors $x$ and $b$. This information can be deduced from the number of vertices and the connectivity between the vertices in the Graph object theGraph. To return $0$ if sucessfull, a negative number if not.

Implements XC::LinearSOE.

§ setSolver()

bool XC::SymSparseLinSOE::setSolver ( LinearSOESolver * newSolver )

protectedvirtual

Sets the solver for the system of equations.

This is invoked to set the currently associated LinearSOESolver object to be newSolver. Each subclass will provide it's own variation of setSolver() method (needed so subclasses can verify type of Solver object passed). the subclasses in their variation of the setSolver() method (unless they wish to implement their own solve() method) invoke this method. Returns $0$.

Reimplemented from XC::LinearSOE.

The documentation for this class was generated from the following files:

src/solution/system_of_eqn/linearSOE/sparseSYM/SymSparseLinSOE.h
src/solution/system_of_eqn/linearSOE/sparseSYM/SymSparseLinSOE.cpp
