3D hinge user defined integration. More...

#include <UserDefinedHingeIntegration3d.h>

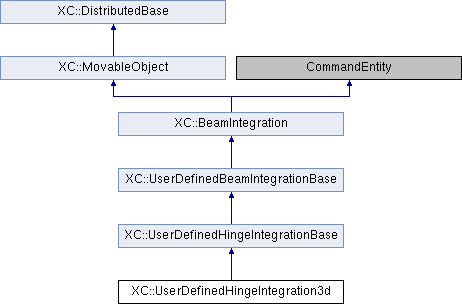

Inheritance diagram for XC::UserDefinedHingeIntegration3d:

Public Member Functions
	UserDefinedHingeIntegration3d (int npL, const Vector &ptL, const Vector &wtL, int npR, const Vector &ptR, const Vector &wtR, double E, double A, double Iz, double Iy, double G, double J)

	UserDefinedHingeIntegration3d (int npL, const Vector &ptL, const Vector &wtL, int npR, const Vector &ptR, const Vector &wtR, const CrossSectionProperties3d &cts)

	UserDefinedHingeIntegration3d (const CrossSectionProperties3d &cts=CrossSectionProperties3d())

void	getSectionLocations (int numSections, double L, double *xi) const

void	getSectionWeights (int numSections, double L, double *wt) const

void	addElasticDeformations (ElementalLoad theLoad, double loadFactor, double L, double v0)

int	addElasticFlexibility (double L, Matrix &fe)

BeamIntegration *	getCopy (void) const

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

void	Print (std::ostream &s, int flag=0)

Public Member Functions inherited from XC::UserDefinedHingeIntegrationBase
	UserDefinedHingeIntegrationBase (int classTag, const Vector &, const Vector &, const Vector &, const Vector &)

	UserDefinedHingeIntegrationBase (int classTag)

void	getSectionLocations (int numSections, double L, double *xi) const

void	getSectionWeights (int numSections, double L, double *wt) const

void	Print (std::ostream &s, int flag=0)

Public Member Functions inherited from XC::UserDefinedBeamIntegrationBase
	UserDefinedBeamIntegrationBase (int, const Vector &, const Vector &)

	UserDefinedBeamIntegrationBase (int, const Vector &)

	UserDefinedBeamIntegrationBase (int)

Public Member Functions inherited from XC::BeamIntegration
	BeamIntegration (int classTag)

const Matrix &	getIntegrPointCoords (int nIP, double L) const
	Returns the coordenadas normalizadas (entre 0 y 1).

const Matrix &	getIntegrPointNaturalCoords (int nIP, double L) const
	Returns the coordenadas naturales (entre -1 y 1) a partir de las normalizadas.

const Matrix &	getIntegrPointLocalCoords (int nIP, double L) const
	Returns the coordenadas locales (entre 0 y L) a partir de las normalizadas.

const Matrix &	getIntegrPointNaturalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the natural coordinates for each integration point.

const Matrix &	getIntegrPointNormalizedCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the normalized coordinates for each integration point.

const Matrix &	getIntegrPointLocalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the local coordinates for each integration point.

const Matrix &	getIntegrPointGlobalCoords (int nIP, const CrdTransf &trf) const
	Returns a matrix with the global coordinates for each integration point.

const Vector &	evalInIntegrPoints (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const
	Returns the values of the expresion being pased as parameter on each integration point.

double	getIntegral (const ExprAlgebra &expr, int nIP, const CrdTransf &trf) const
	Returns the integral of the expresion.

virtual void	addElasticDeformations (ElementalLoad *theLoad, double loadFactor, double L, FVector &v0)

virtual double	getTangentDriftI (double L, double LI, double q2, double q3, bool yAxis=false)

virtual double	getTangentDriftJ (double L, double LI, double q2, double q3, bool yAxis=false)

virtual void	getLocationsDeriv (int nIP, double L, double dLdh, double *dptsdh)

virtual void	getWeightsDeriv (int nIP, double L, double dLdh, double *dwtsdh)

virtual int	addElasticFlexDeriv (double L, Matrix &dfedh, double dLdh=0.0)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Attributes
CrossSectionProperties3d	ctes_scc

Protected Attributes inherited from XC::UserDefinedHingeIntegrationBase
Vector	ptsR

Vector	wtsR

Protected Attributes inherited from XC::UserDefinedBeamIntegrationBase
Vector	pts

Vector	wts

Additional Inherited Members
Protected Member Functions inherited from XC::UserDefinedHingeIntegrationBase
Vector &	ptsL (void)

const Vector &	ptsL (void) const

Vector &	wtsL (void)

const Vector &	wtsL (void) const

int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.

int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.

Protected Member Functions inherited from XC::UserDefinedBeamIntegrationBase
int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.

int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.

Detailed Description

3D hinge user defined integration.

Member Function Documentation

§ recvSelf()

int XC::UserDefinedHingeIntegration3d::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Reimplemented from XC::UserDefinedBeamIntegrationBase.

§ sendSelf()

int XC::UserDefinedHingeIntegration3d::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Reimplemented from XC::UserDefinedBeamIntegrationBase.

The documentation for this class was generated from the following files:

src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/UserDefinedHingeIntegration3d.h
src/domain/mesh/element/truss_beam_column/forceBeamColumn/beam_integration/UserDefinedHingeIntegration3d.cpp
