Cylinder shape: centered on (0 0 0), aligned along Y, defined with length and radius. More...

#include <CylinderShape.h>

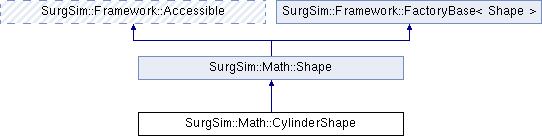

Inheritance diagram for SurgSim::Math::CylinderShape:

Public Member Functions
	CylinderShape (double length=0.0, double radius=0.0)
	Constructor. More...

	SURGSIM_CLASSNAME (SurgSim::Math::CylinderShape)

int	getType () const override

double	getLength () const
	Get the cylinder length. More...

double	getRadius () const
	Get the cylinder radius. More...

double	getVolume () const override
	Get the volume of the shape. More...

Vector3d	getCenter () const override
	Get the volumetric center of the shape. More...

Matrix33d	getSecondMomentOfVolume () const override
	Get the second central moment of the volume, commonly used to calculate the moment of inertia matrix. More...

bool	isValid () const override

Public Member Functions inherited from SurgSim::Math::Shape
	Shape ()
	Constructor.

virtual	~Shape ()
	Destructor.

virtual bool	isTransformable () const

virtual std::shared_ptr< Shape >	getTransformed (const RigidTransform3d &pose) const
	Get a copy of this shape with an applied rigid transform. More...

virtual void	setPose (const RigidTransform3d &pose)
	Set the pose on a transformable shape. More...

virtual void	updateShape ()
	Update the internals of a transformable shape.

virtual void	updateShapePartial ()
	Update some of the internals of a transformable shape. More...

virtual std::string	getClassName () const
	Get class name.

virtual const Math::Aabbd &	getBoundingBox () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
void	setLength (double length)
	Set the cylinder length. More...

void	setRadius (double radius)
	Set the cylinder radius. More...

Additional Inherited Members
Public Types inherited from SurgSim::Math::Shape
typedef ::SurgSim::Math::Vector3d	Vector3d

typedef ::SurgSim::Math::Matrix33d	Matrix33d

Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase< Shape >
typedef ObjectFactory< Shape >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase< Shape >
static FactoryType &	getFactory ()

Protected Attributes inherited from SurgSim::Math::Shape
Math::Aabbd	m_aabb

Detailed Description

Cylinder shape: centered on (0 0 0), aligned along Y, defined with length and radius.

Constructor & Destructor Documentation

§ CylinderShape()

SurgSim::Math::CylinderShape::CylinderShape	(	double	length = `0.0`,
		double	radius = `0.0`
	)

explicit

Constructor.

Parameters

length	The length of the cylinder (in m)
radius	The cylinder radius (in m)

Member Function Documentation

§ getCenter()

SurgSim::Math::Vector3d SurgSim::Math::CylinderShape::getCenter ( ) const

overridevirtual

Get the volumetric center of the shape.

Returns: The center of the shape

Implements SurgSim::Math::Shape.

§ getLength()

double SurgSim::Math::CylinderShape::getLength ( ) const

Get the cylinder length.

Returns: The cylinder length (in m)

§ getRadius()

double SurgSim::Math::CylinderShape::getRadius ( ) const

Get the cylinder radius.

Returns: The cylinder radius (in m)

§ getSecondMomentOfVolume()

SurgSim::Math::Matrix33d SurgSim::Math::CylinderShape::getSecondMomentOfVolume ( ) const

overridevirtual

Get the second central moment of the volume, commonly used to calculate the moment of inertia matrix.

Returns: The 3x3 symmetric second moment matrix

Implements SurgSim::Math::Shape.

§ getType()

int SurgSim::Math::CylinderShape::getType ( ) const

overridevirtual

Returns: the type of the shape

Implements SurgSim::Math::Shape.

§ getVolume()

double SurgSim::Math::CylinderShape::getVolume ( ) const

overridevirtual

Get the volume of the shape.

Returns: The volume of the shape (in m-3)

Implements SurgSim::Math::Shape.

§ isValid()

bool SurgSim::Math::CylinderShape::isValid ( ) const

overridevirtual

Returns: True if length and radius are bigger than or equal to 0; Otherwise, false.

Implements SurgSim::Math::Shape.

§ setLength()

void SurgSim::Math::CylinderShape::setLength ( double length )

protected

Set the cylinder length.

Parameters

length The capsule length (in m)

§ setRadius()

void SurgSim::Math::CylinderShape::setRadius ( double radius )

protected

Set the cylinder radius.

Parameters

radius The capsule radius (in m)

The documentation for this class was generated from the following files:

SurgSim/Math/CylinderShape.h
SurgSim/Math/CylinderShape.cpp
